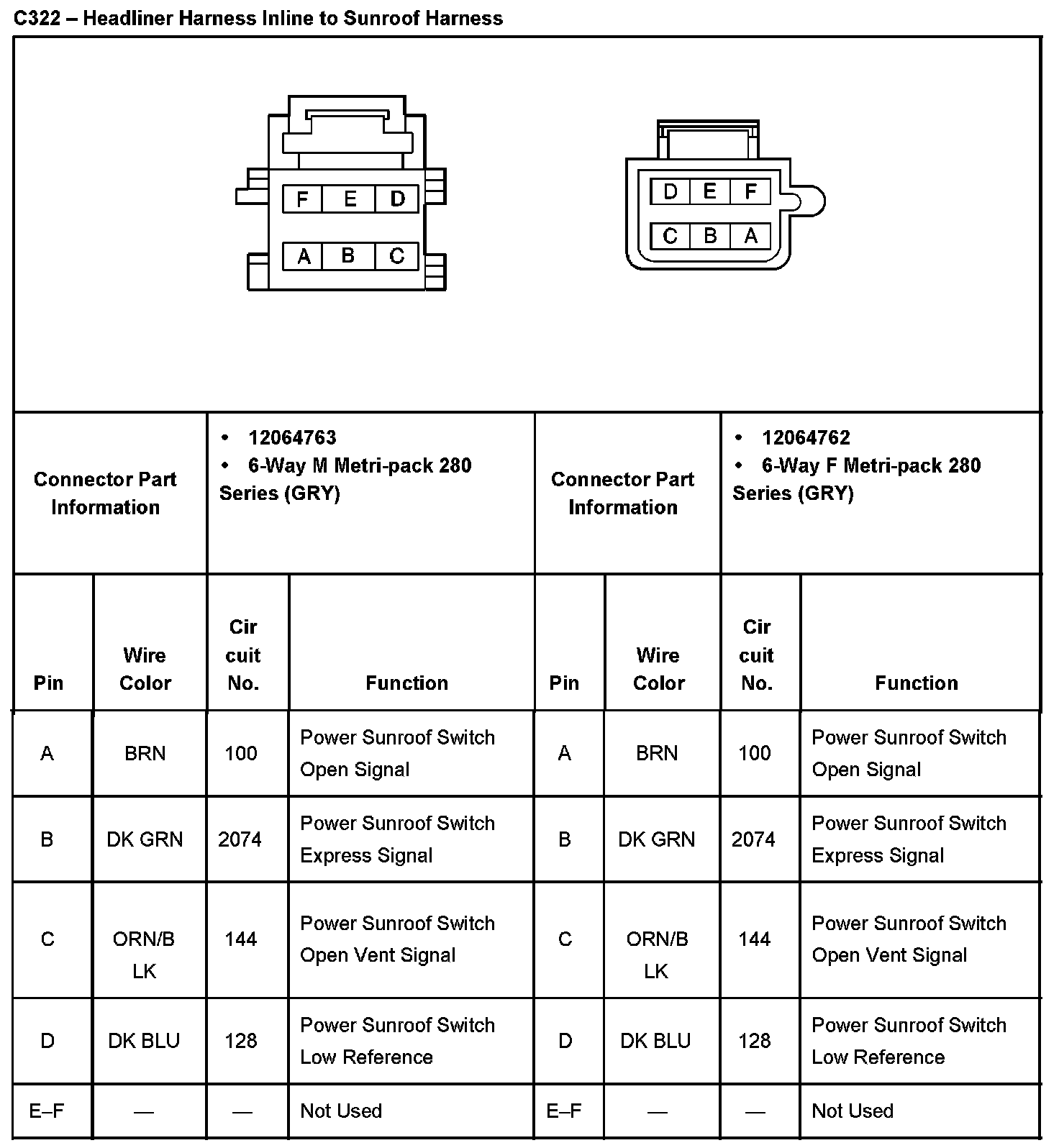

C322 - Headliner Harness Inline to Sunroof Harness

C322 - Headliner Harness Inline To Sunroof Harness:
