Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C301 - C345
>>

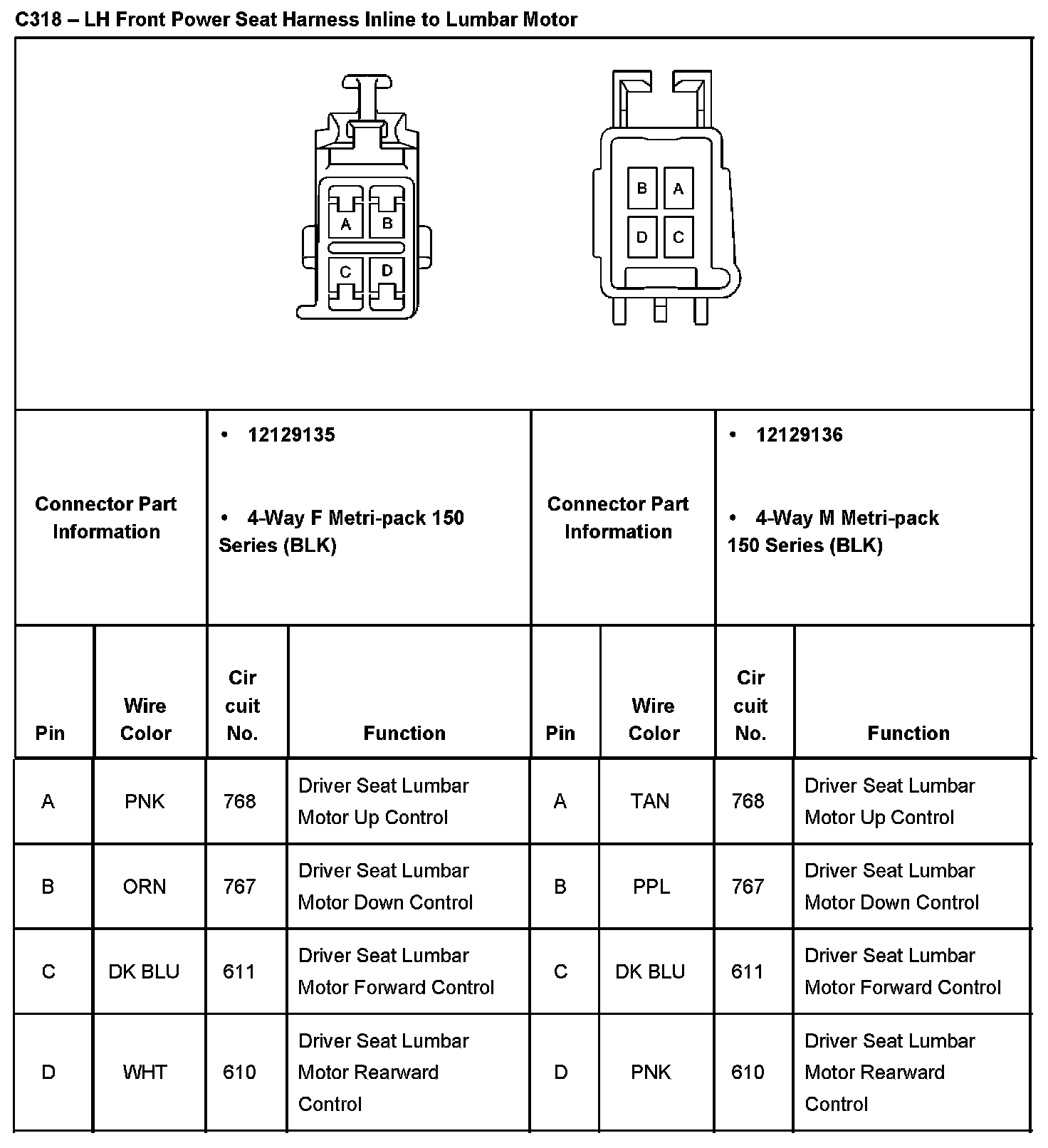

C318 - LH Front Power Seat Harness Inline to Lumbar Motor
C318 - LH Front Power Seat Harness Inline to Lumbar Motor
C318 - LH Front Power Seat Harness Inline To Lumbar Motor:
