FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C301 - C345
>>

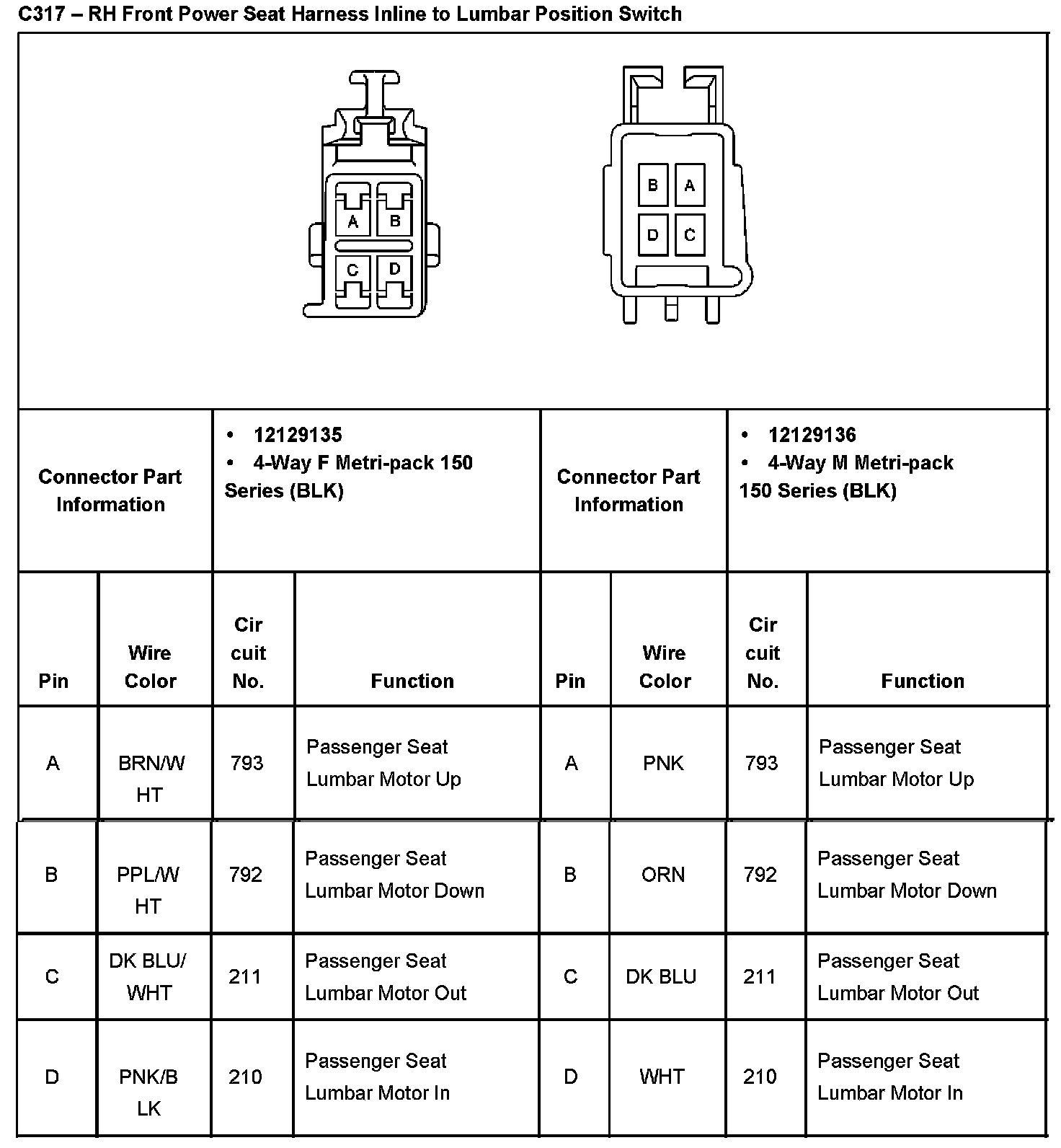

C317 - RH Front Power Seat Inline to Lumbar Position Switch
C317 - RH Front Power Seat Inline to Lumbar Position Switch
C317 - RH Front Power Seat Harness Inline To Lumbar Position Switch:
