C314 - LH Front Power Seat Inline to Lumbar Switch W/Memory
C314 - LH Front Power Seat Inline to Lumbar Switch W/Memory

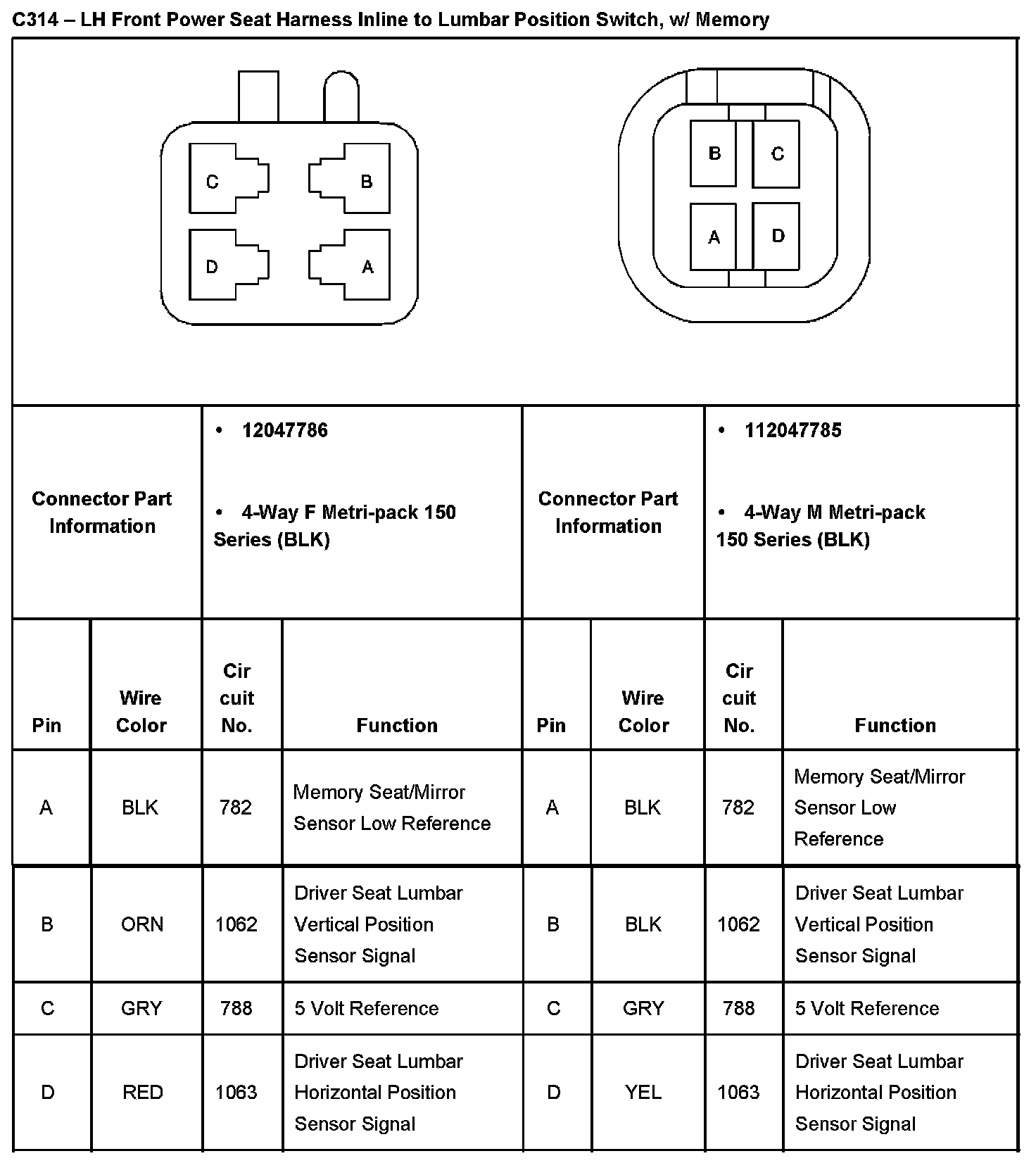

C314 - LH Front Power Seat Harness Inline To Lumbar Position Switch, W/Memory:
