C302 - LH Body Harness Inline to LH Front Power Seat Harness

C302 - LH Body Harness Inline To LH Front Power Seat Harness Part 1:

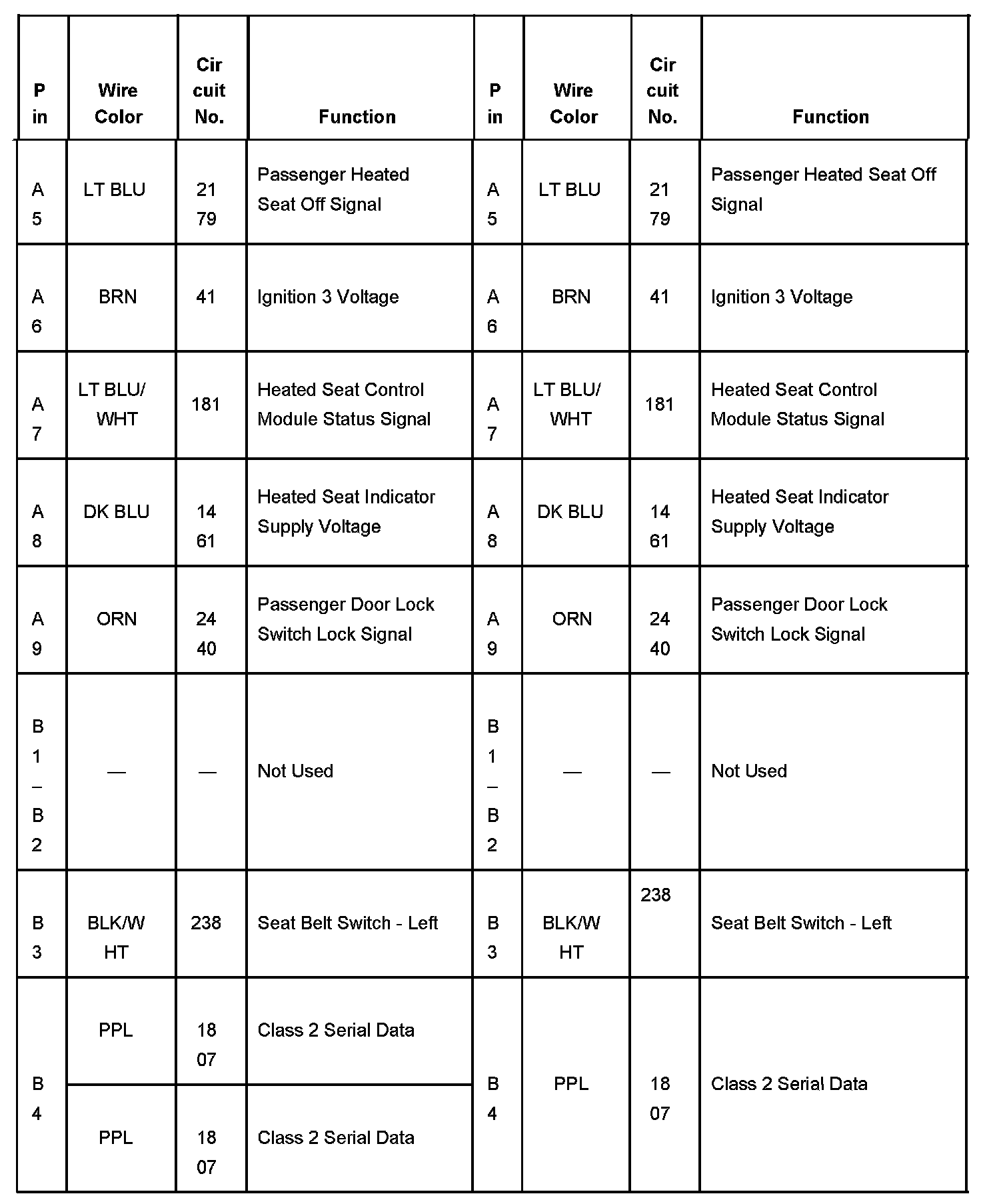

C302 - LH Body Harness Inline To LH Front Power Seat Harness Part 2:

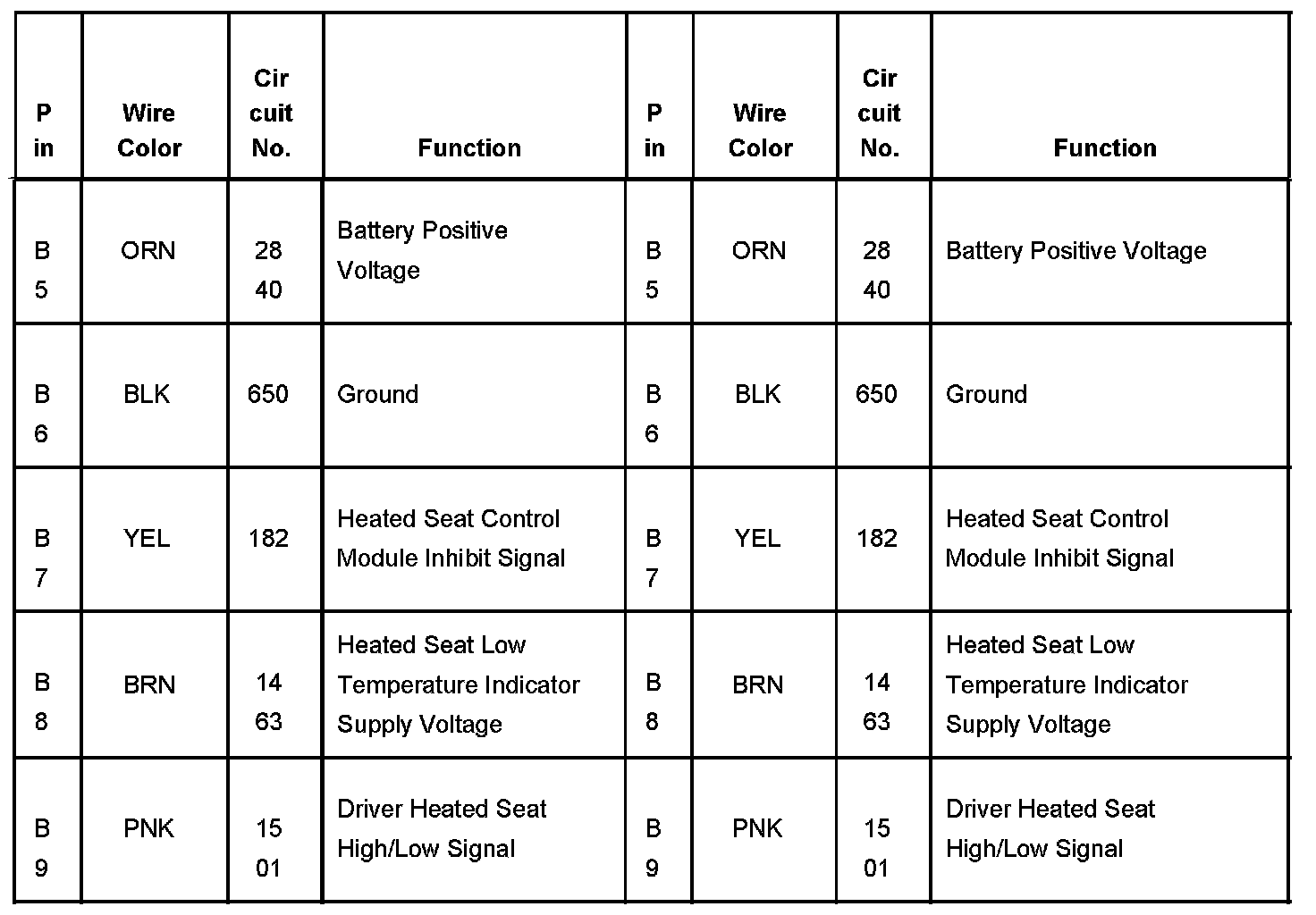

C302 - LH Body Harness Inline To LH Front Power Seat Harness Part 3:
