C301 - C345
>>
C301 - LH Body Harness Inline to RH Front Power Seat Harness
C301 - LH Body Harness Inline to RH Front Power Seat Harness

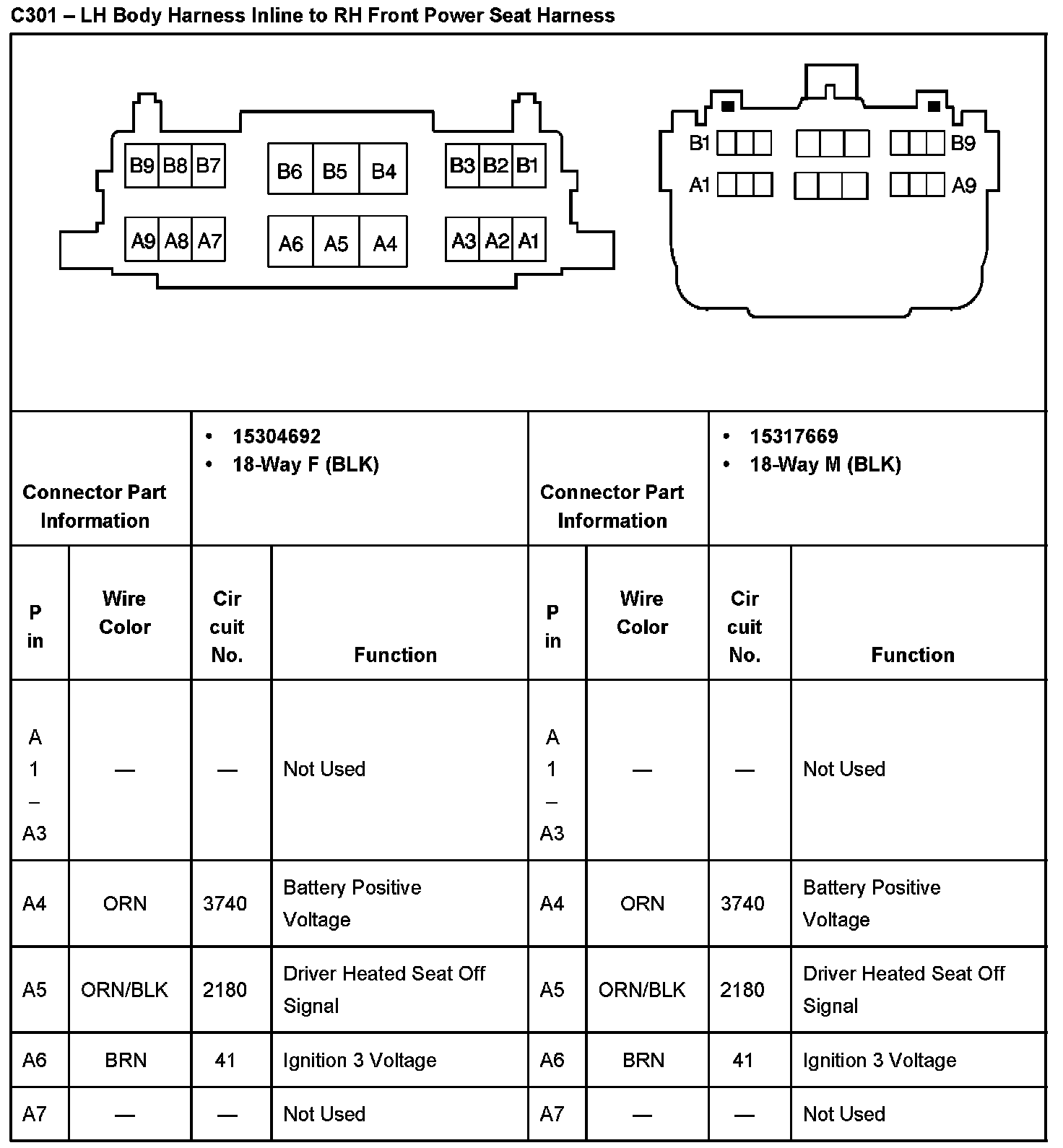

C301 - LH Body Harness Inline To RH Front Power Seat Harness Part 1:

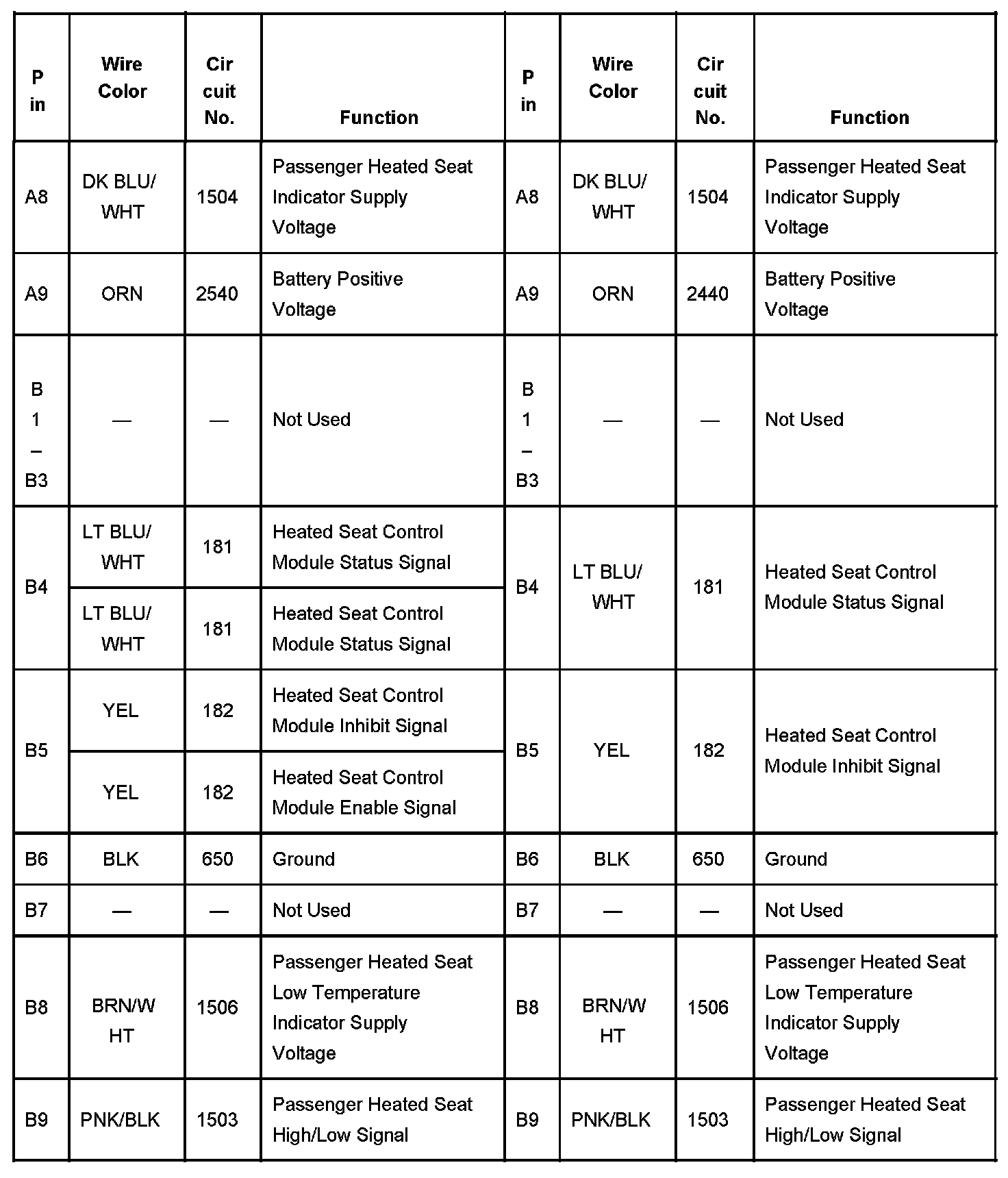

C301 - LH Body Harness Inline To RH Front Power Seat Harness Part 2:
