Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C200 - C217
>>
C205 - I/P Harness Inline to HVAC Harness
C205 - I/P Harness Inline to HVAC Harness

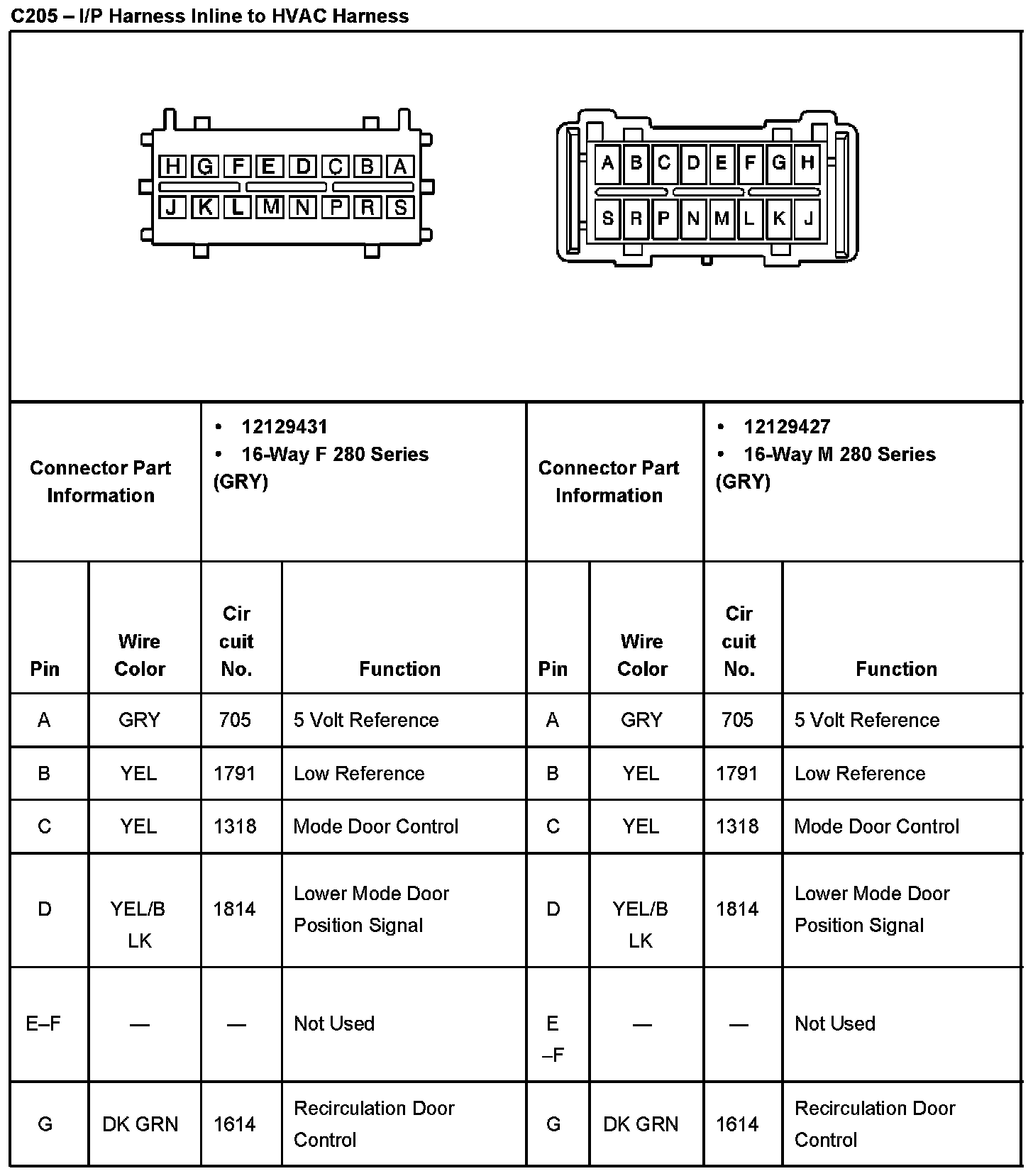

C205 - I/P Harness Inline To HVAC Harness Part 1:

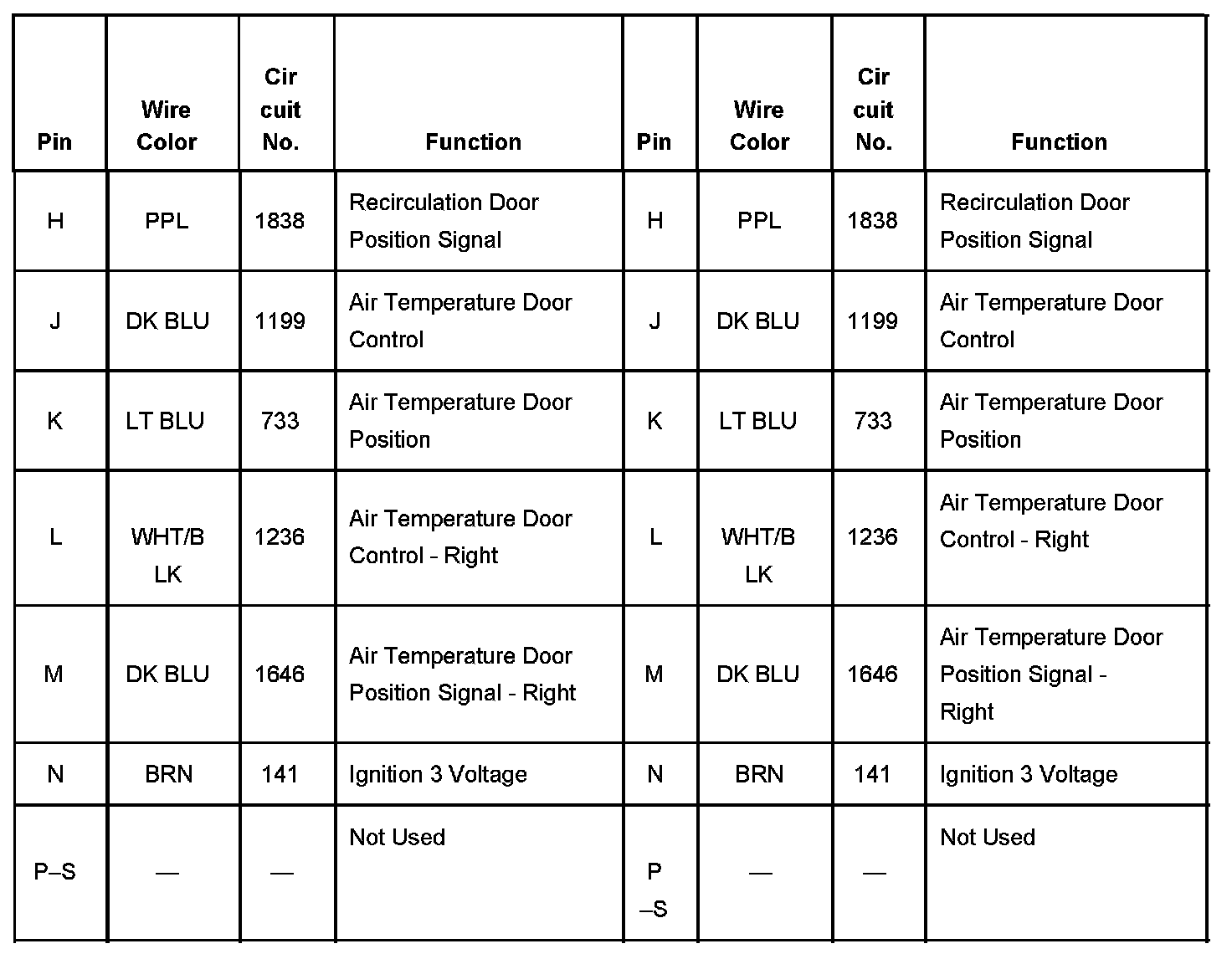

C205 - I/P Harness Inline To HVAC Harness Part 2:
