C201 - RH Body Harness Inline to I/P Harness

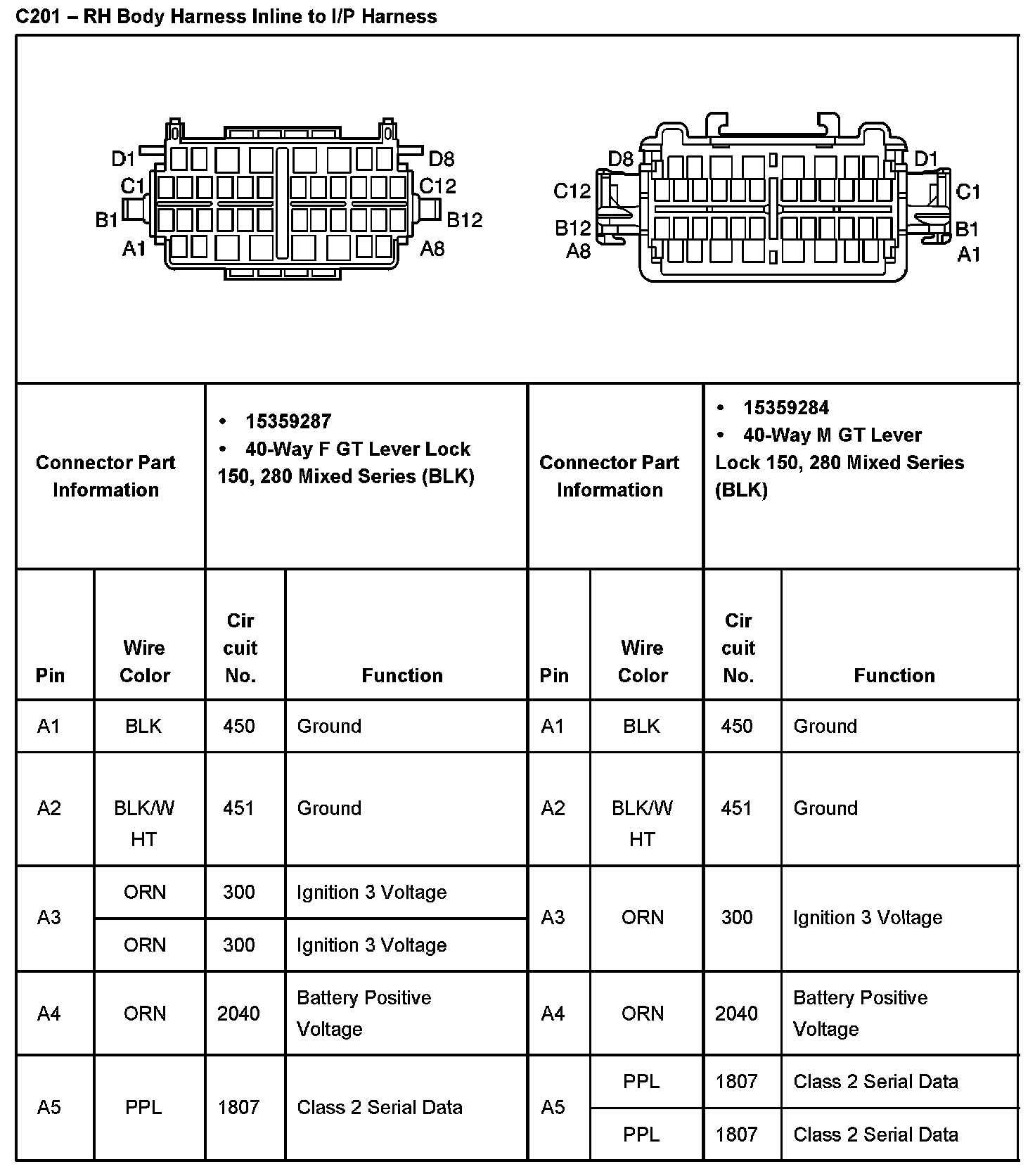

C201 - RH Body Harness Inline To I/P Harness Part 1:

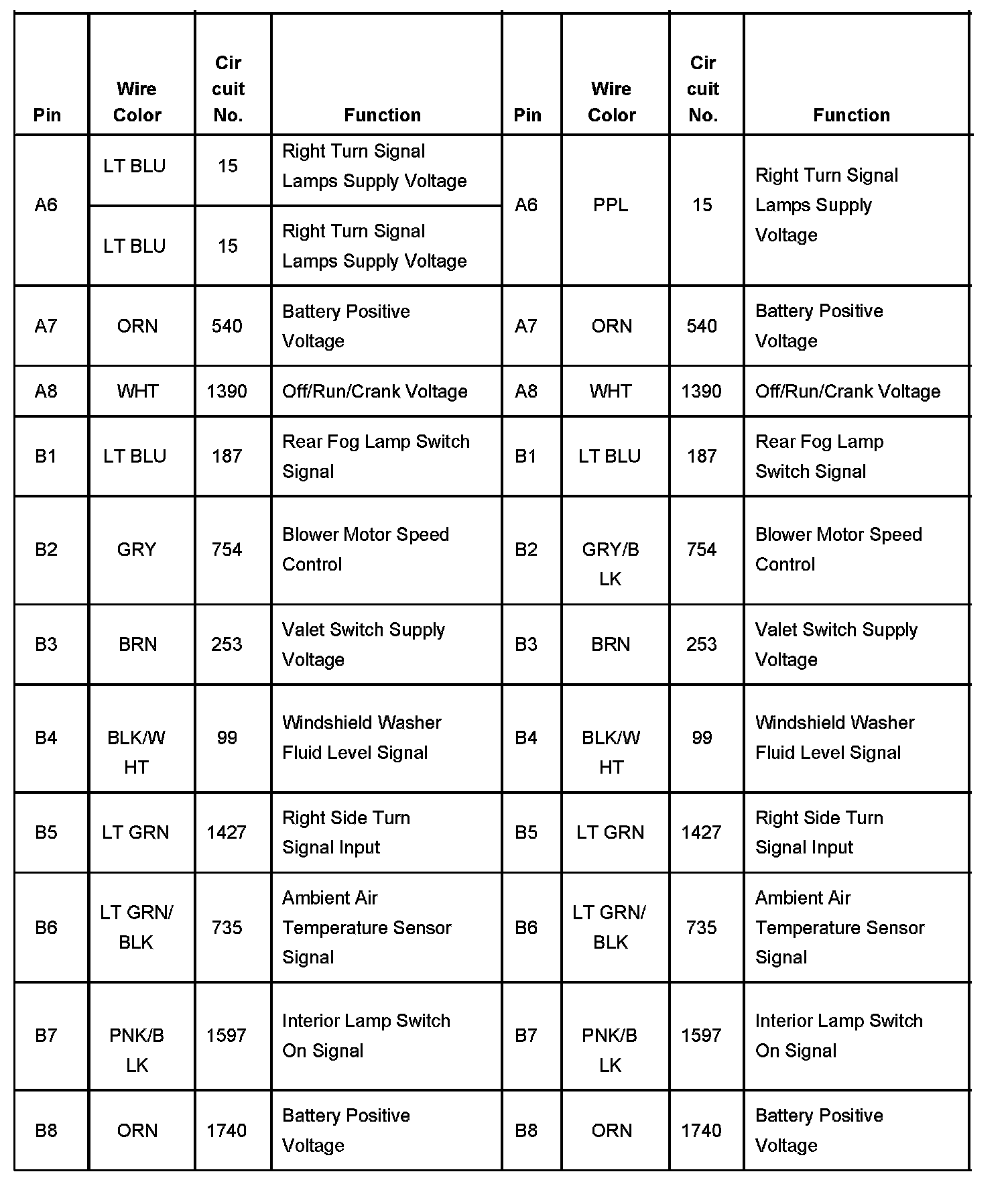

C201 - RH Body Harness Inline To I/P Harness Part 2:

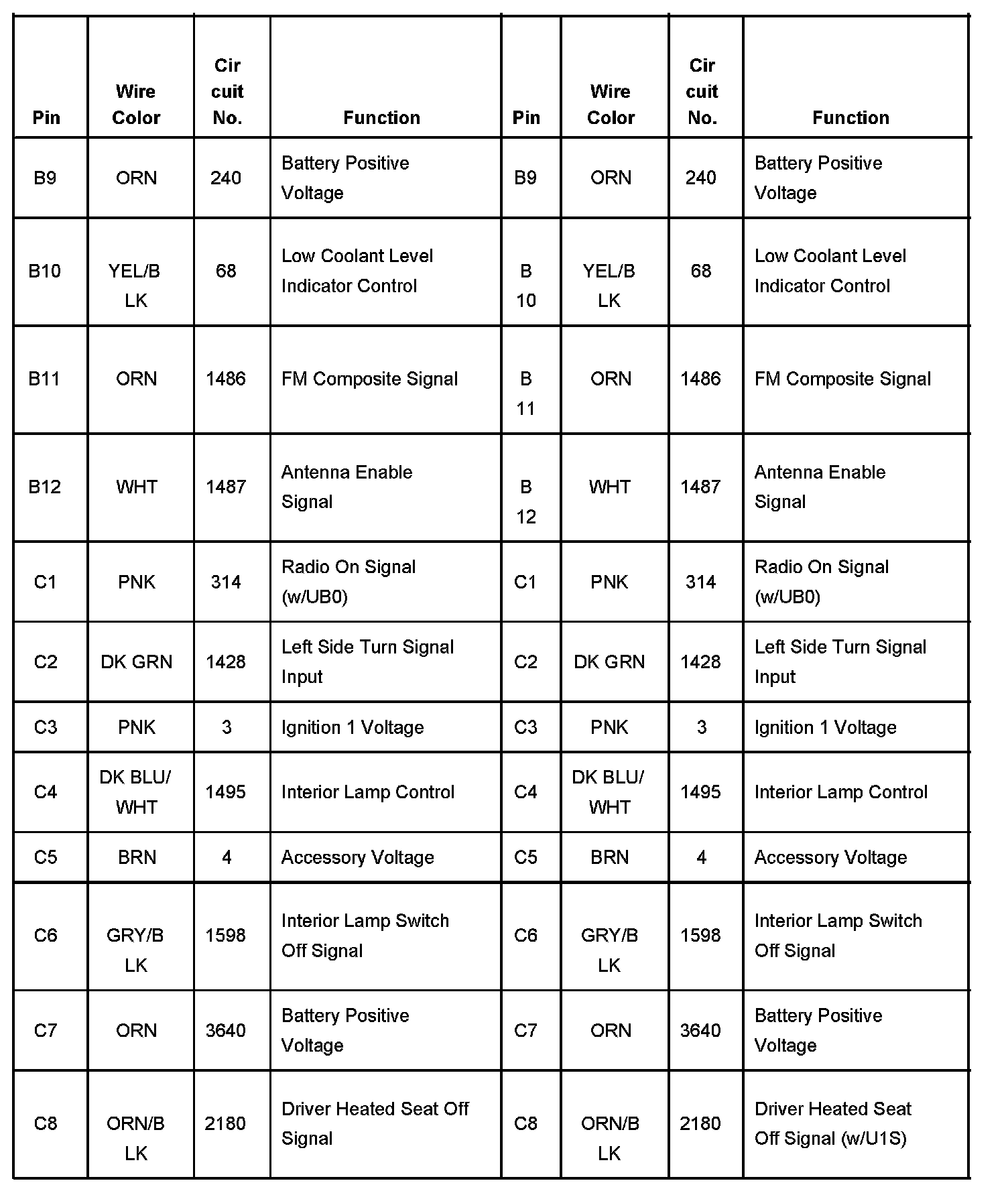

C201 - RH Body Harness Inline To I/P Harness Part 3:

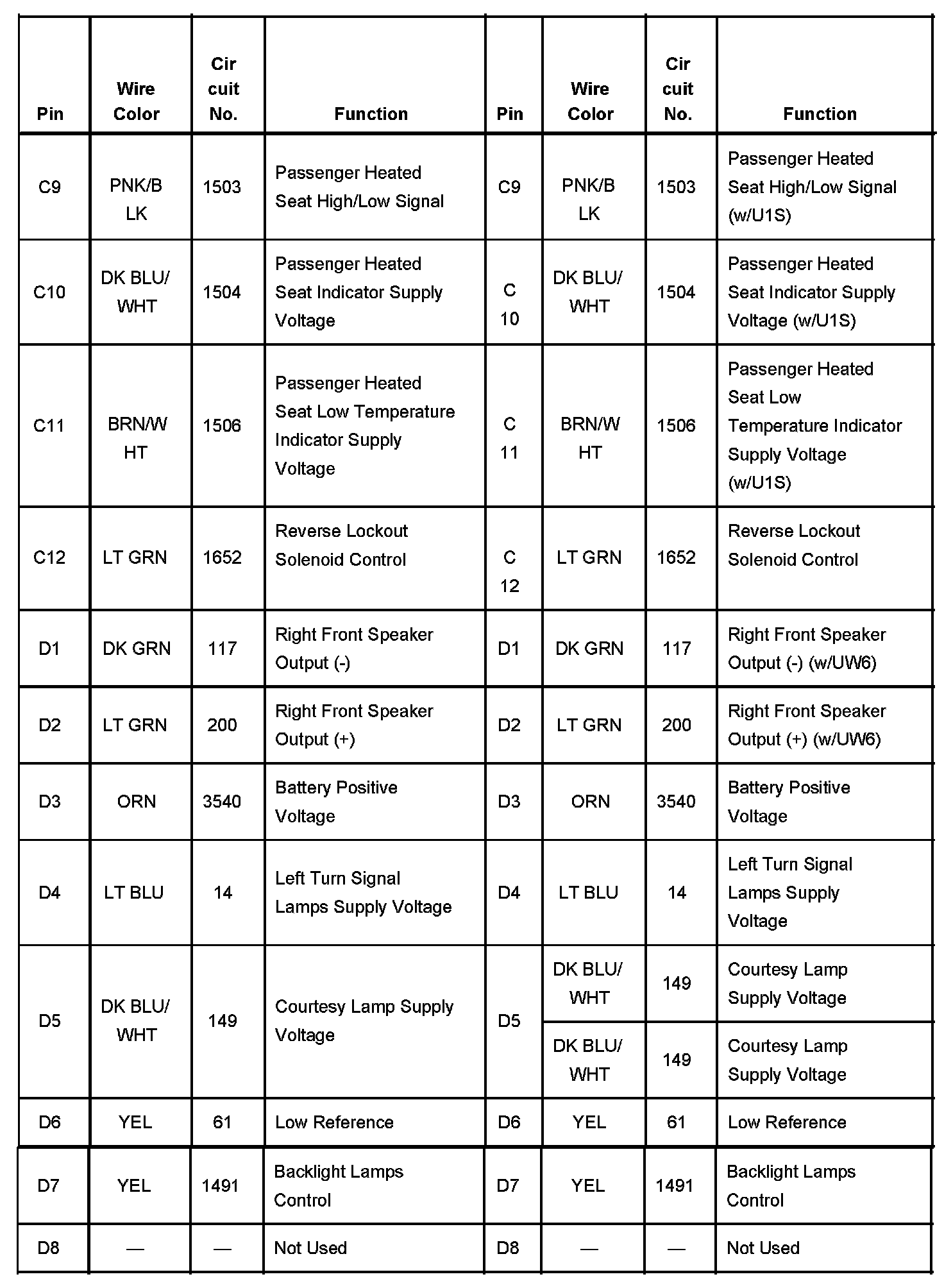

C201 - RH Body Harness Inline To I/P Harness Part 4:
