C200 - LH Body Harness Inline to I/P Harness

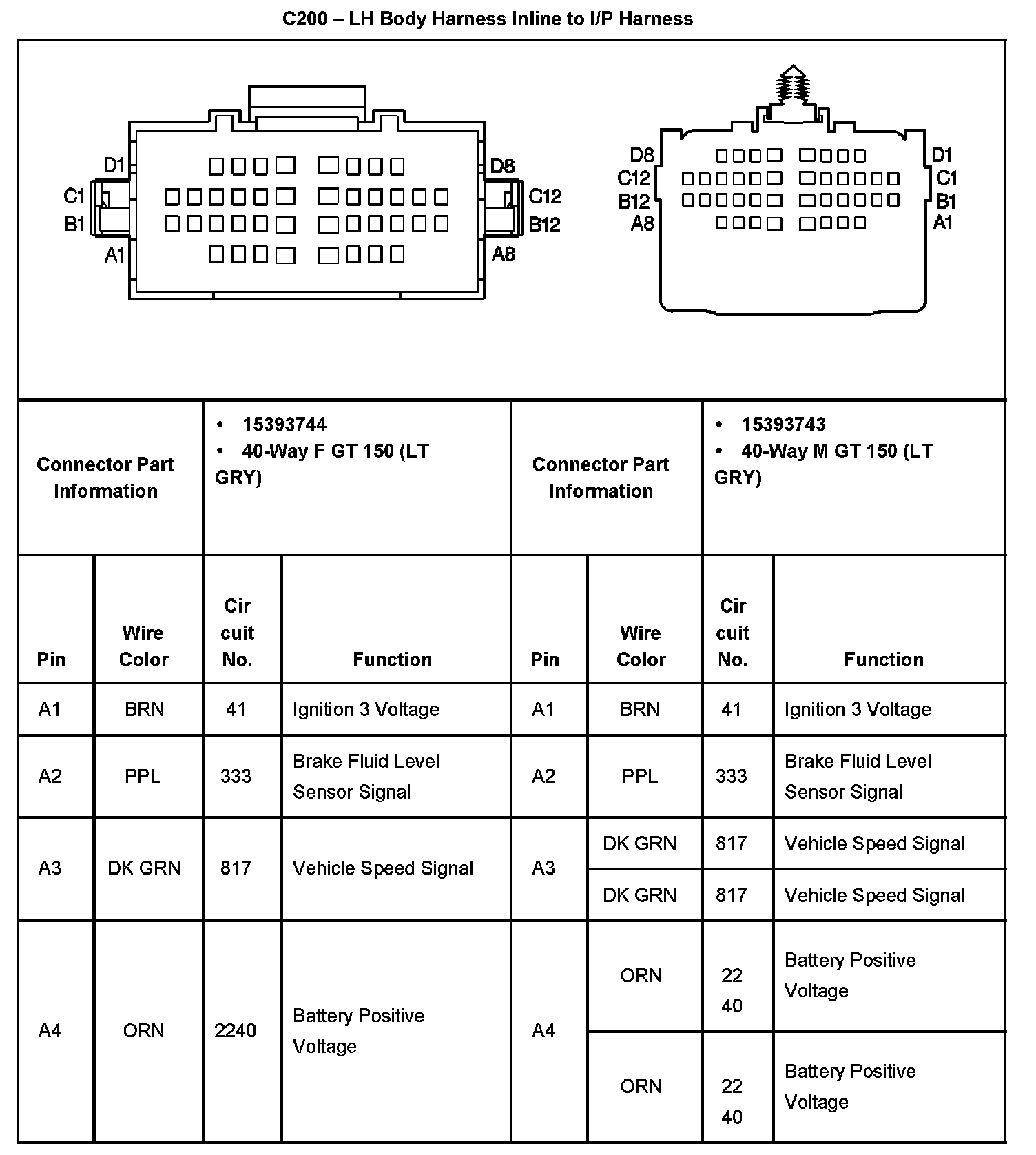

C200 - LH Body Harness Inline To I/P Harness Part 1:

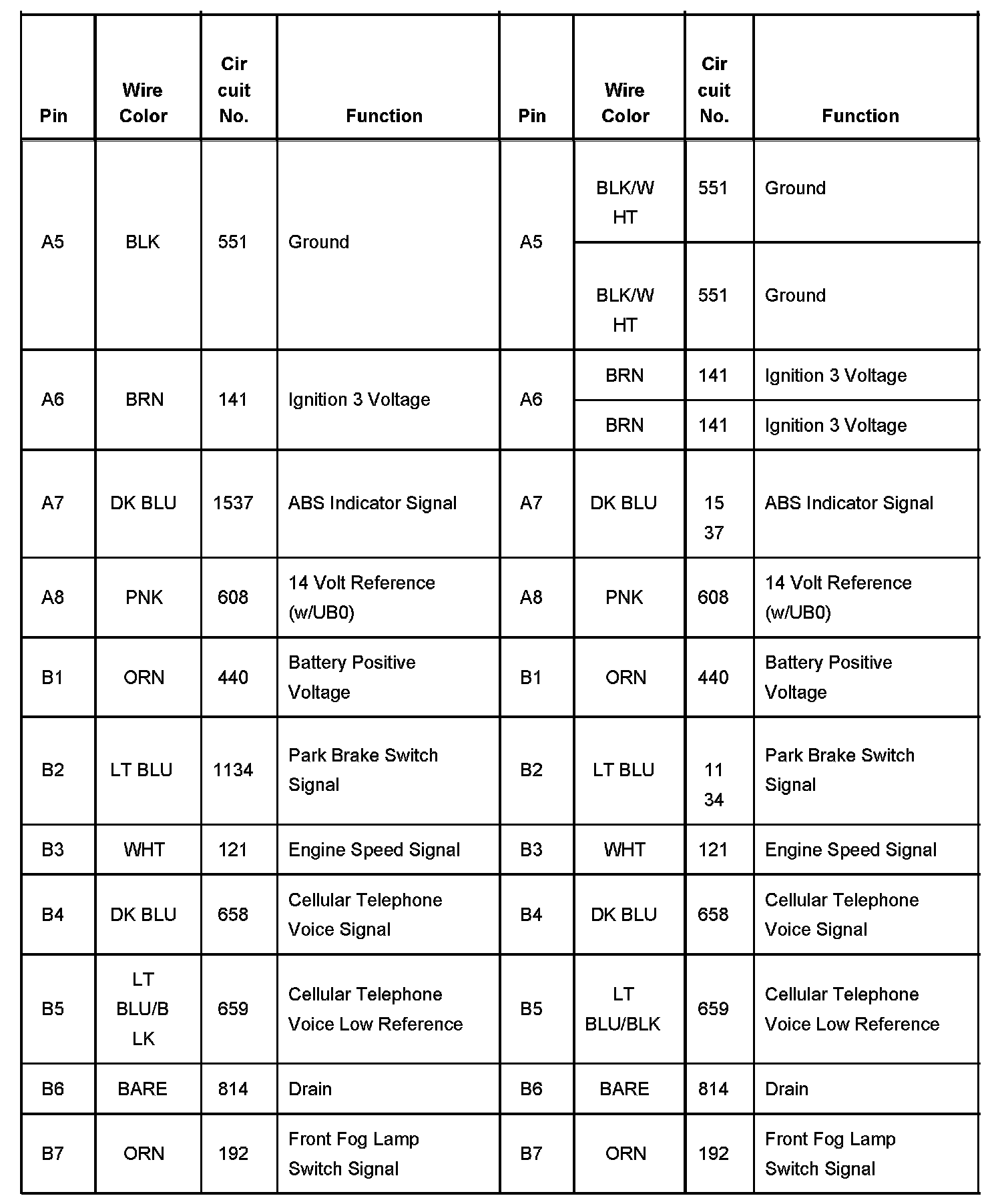

C200 - LH Body Harness Inline To I/P Harness Part 2:

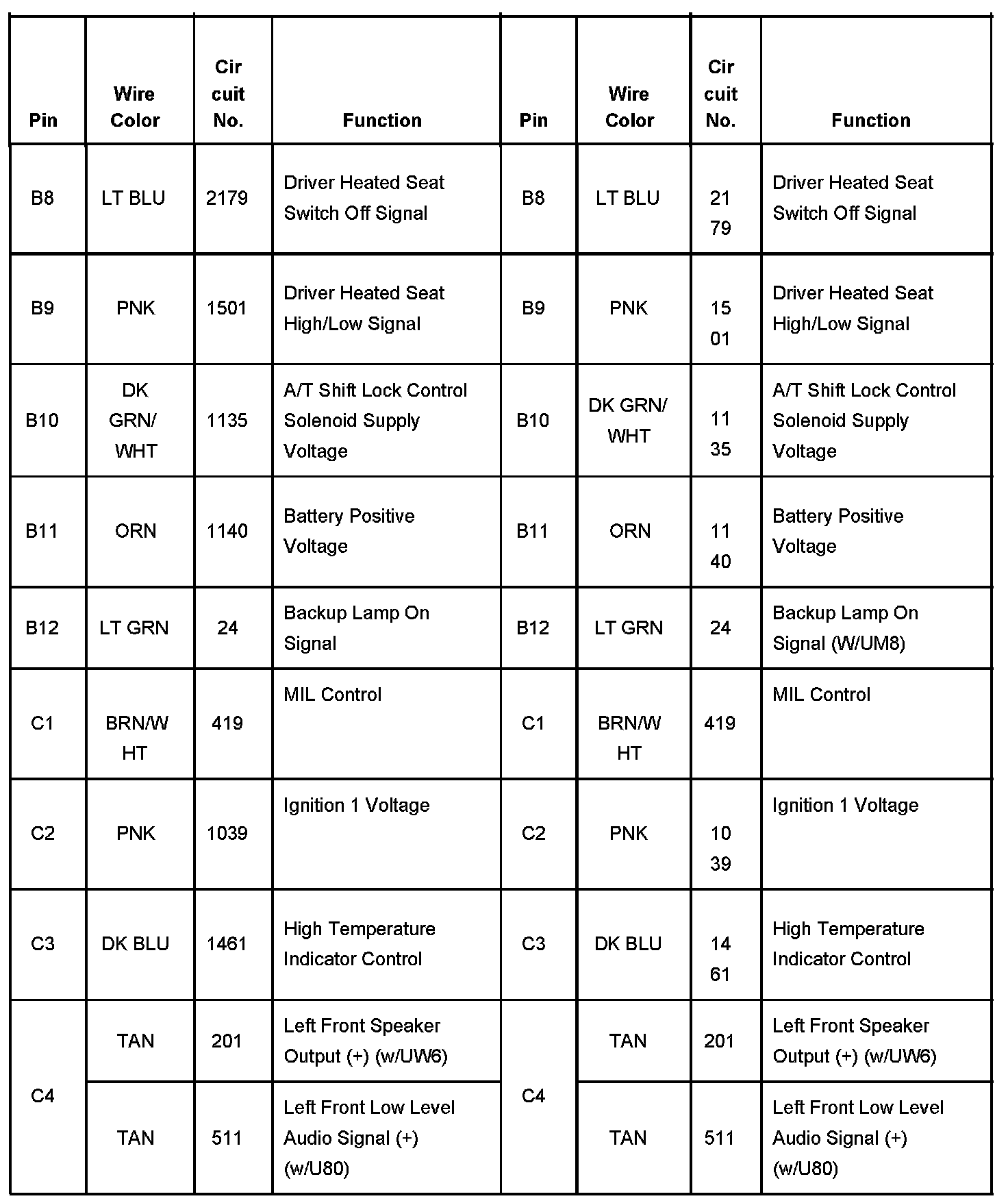

C200 - LH Body Harness Inline To I/P Harness Part 3:

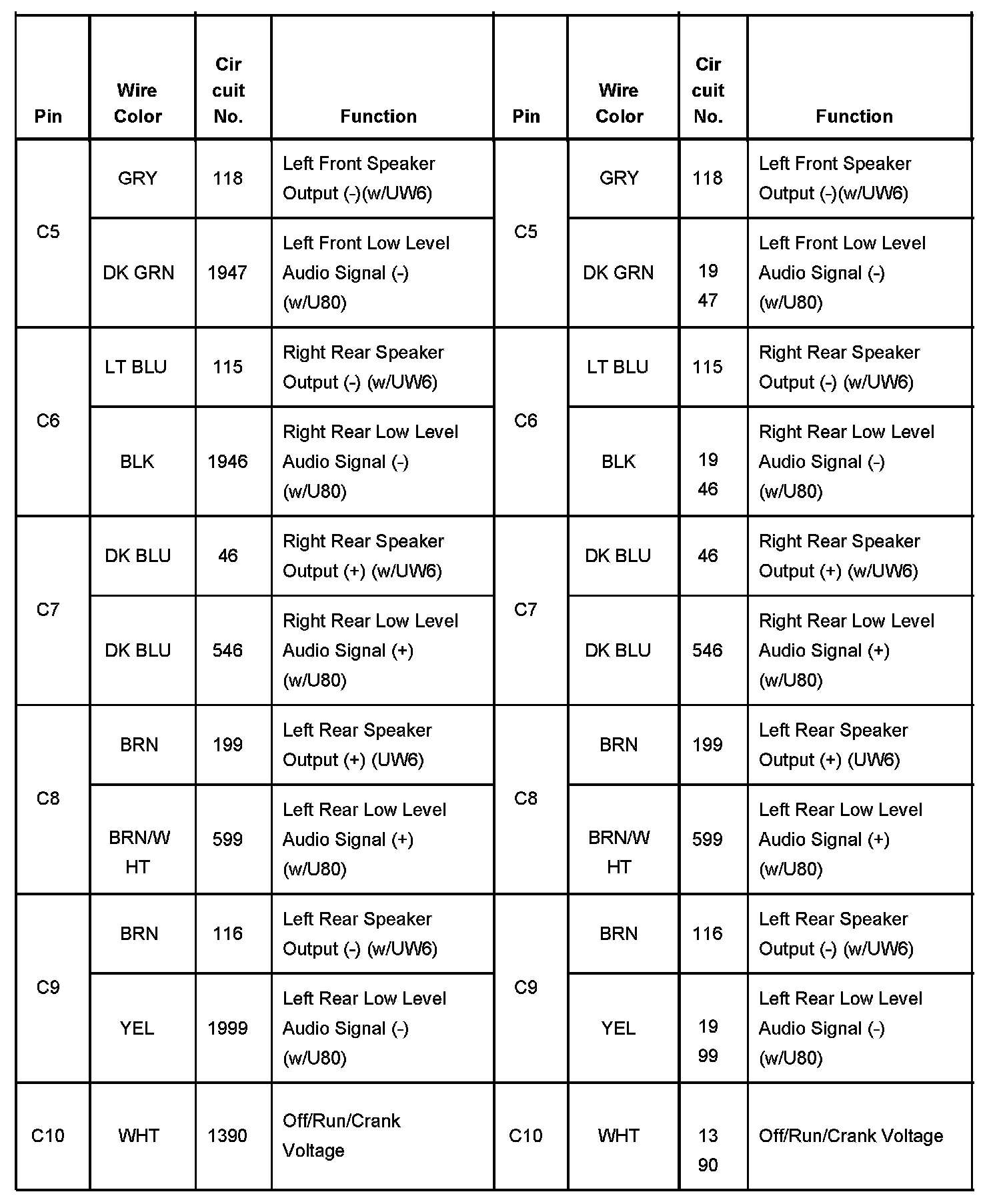

C200 - LH Body Harness Inline To I/P Harness Part 4:

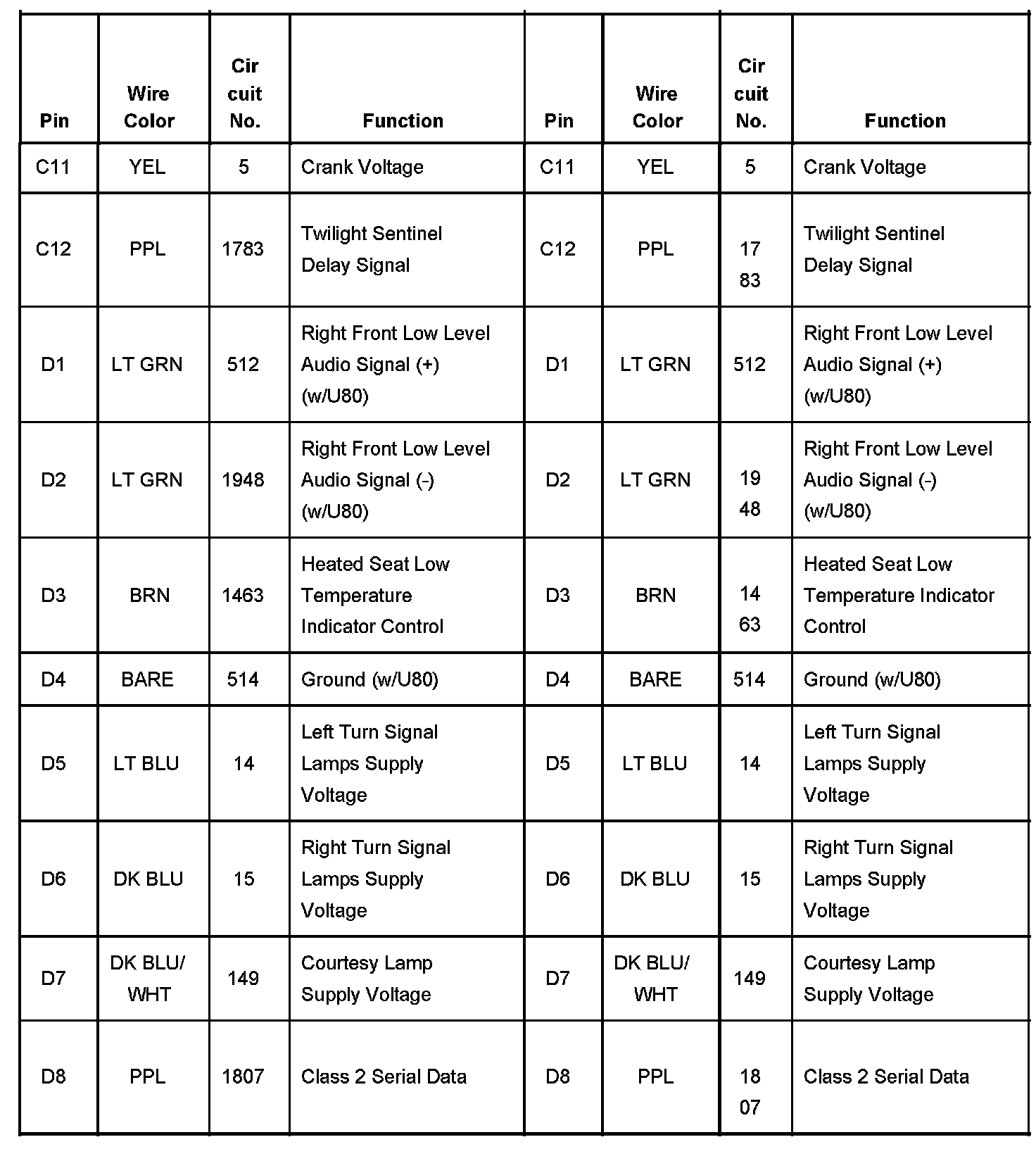

C200 - LH Body Harness Inline To I/P Harness Part 5:
