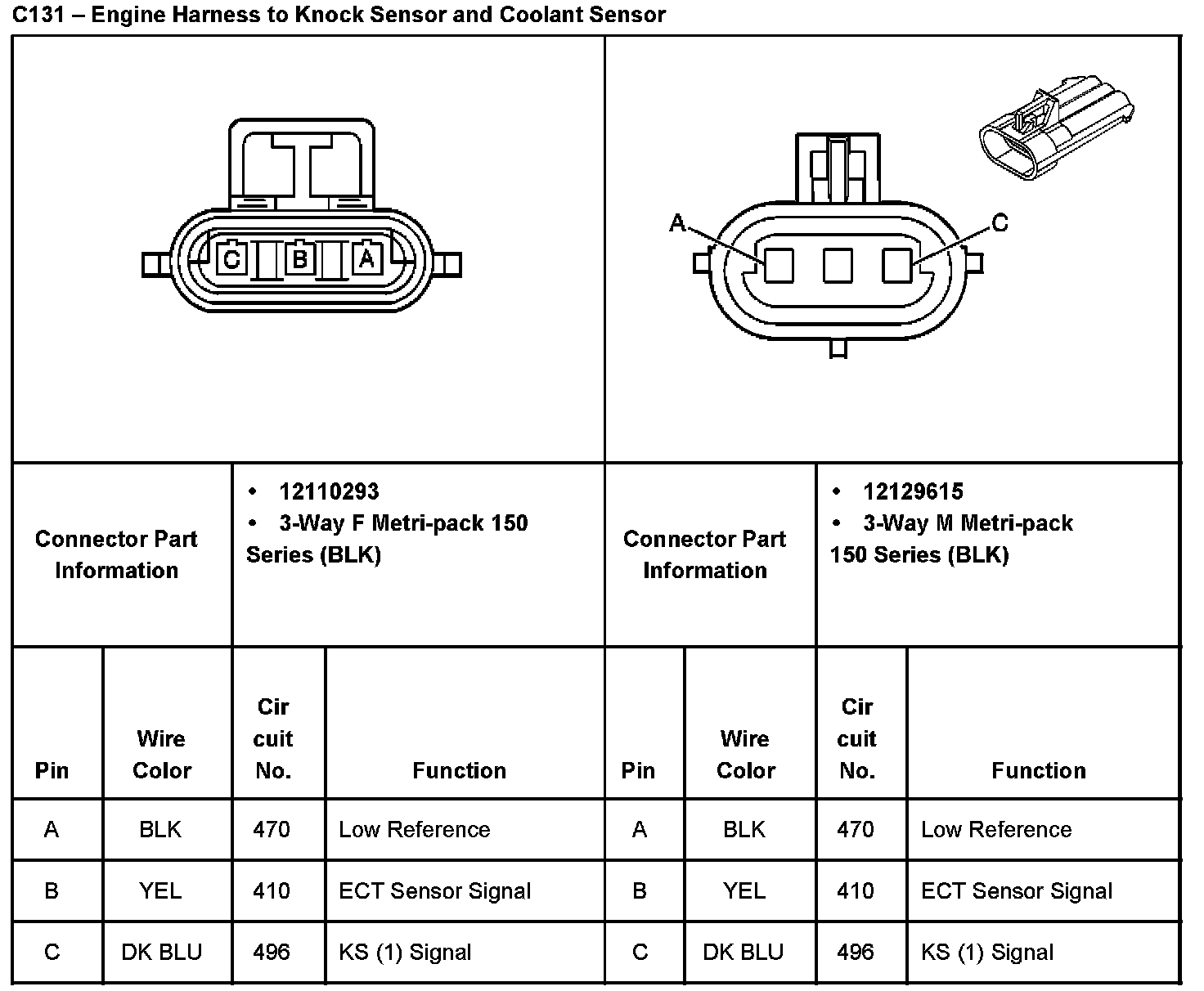

C131 - Engine Harness to Knock Sensor and Coolant Sensor

C131 - Engine Harness To Knock Sensor And Coolant Sensor:
