C112 - Windshield Wiper/Washer Harness Inline to LH Body

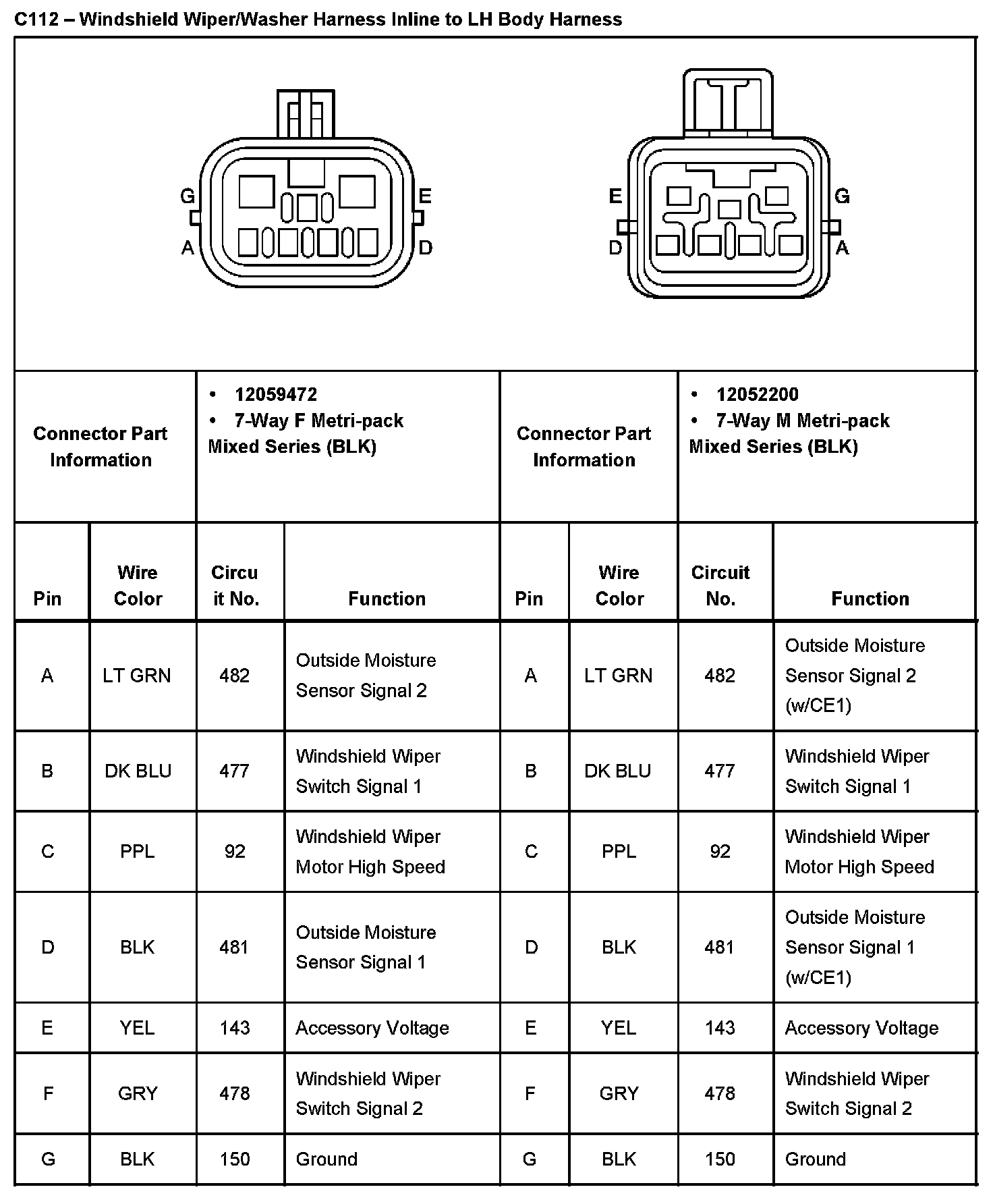

C112 - Windshield Wiper/Washer Harness Inline To LH Body Harness:
