FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
2003
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C101 - C131
>>
C109 - Forward Lamp Harness Inline to RH Headlamp Harness
C109 - Forward Lamp Harness Inline to RH Headlamp Harness

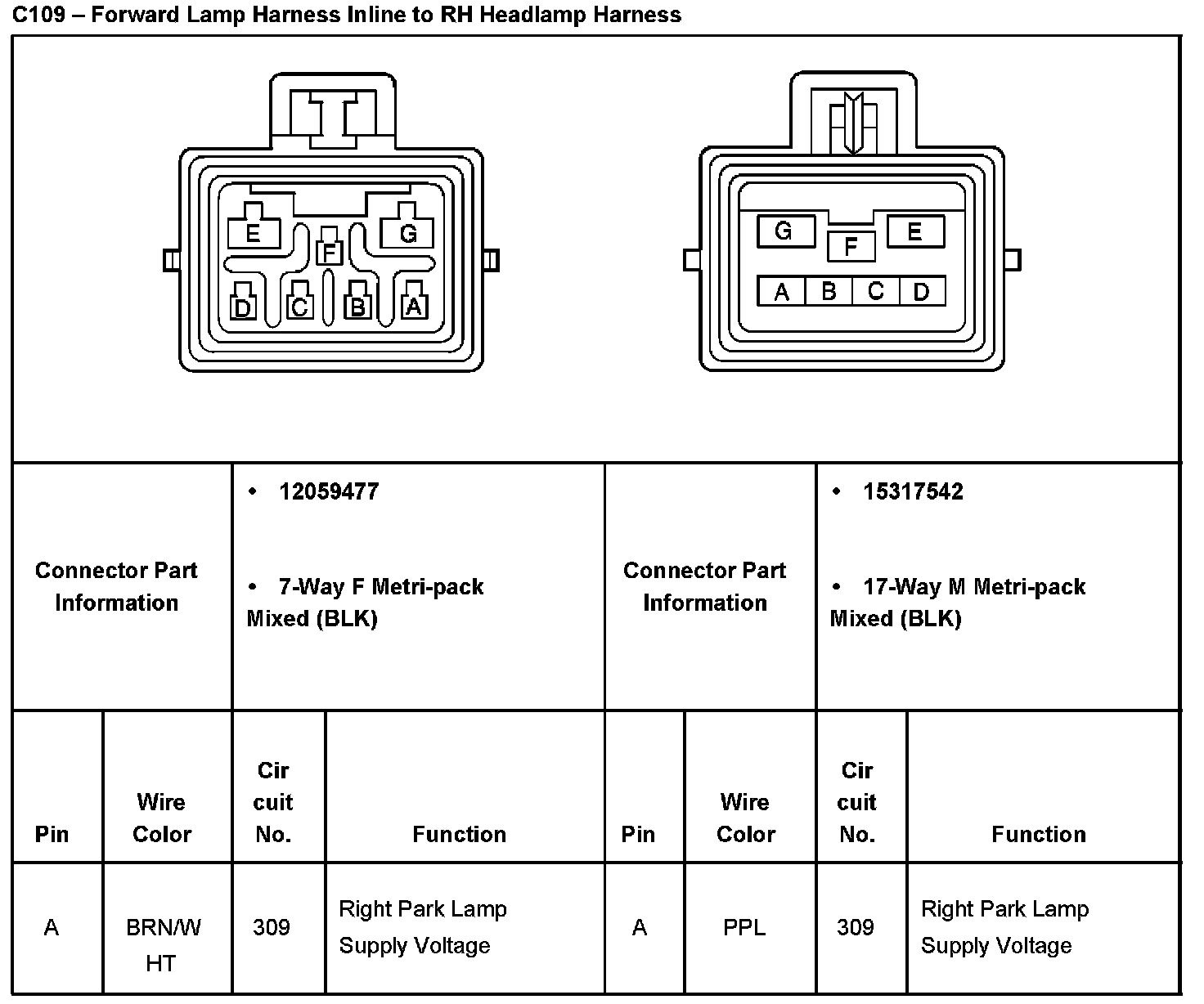

C109 - Forward Lamp Harness Inline To RH Headlamp Harness Part 1:

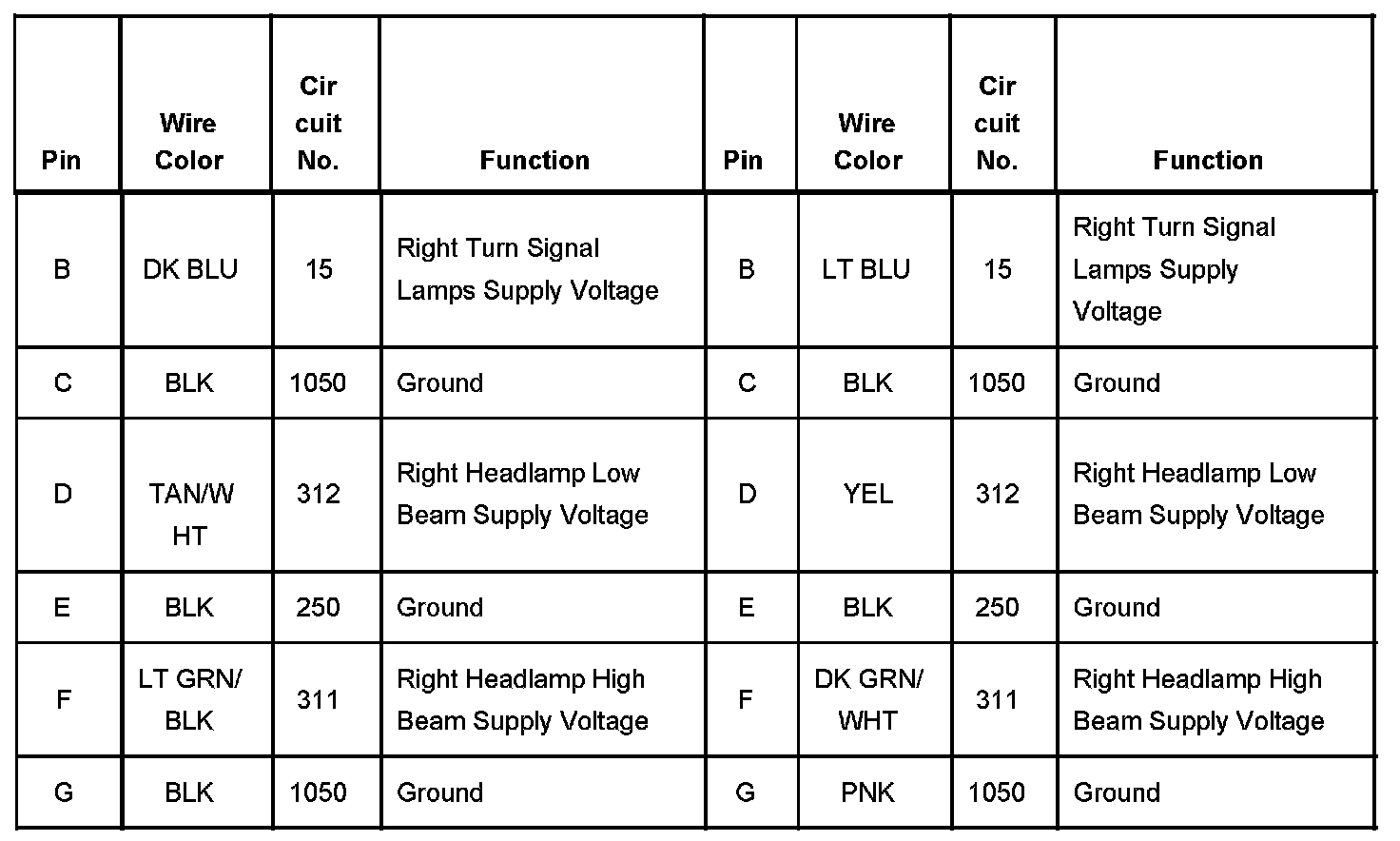

C109 - Forward Lamp Harness Inline To RH Headlamp Harness Part 2:
