C108 - Forward Lamp Harness Inline to LH Headlamp Harness
C108 - Forward Lamp Harness Inline to LH Headlamp Harness

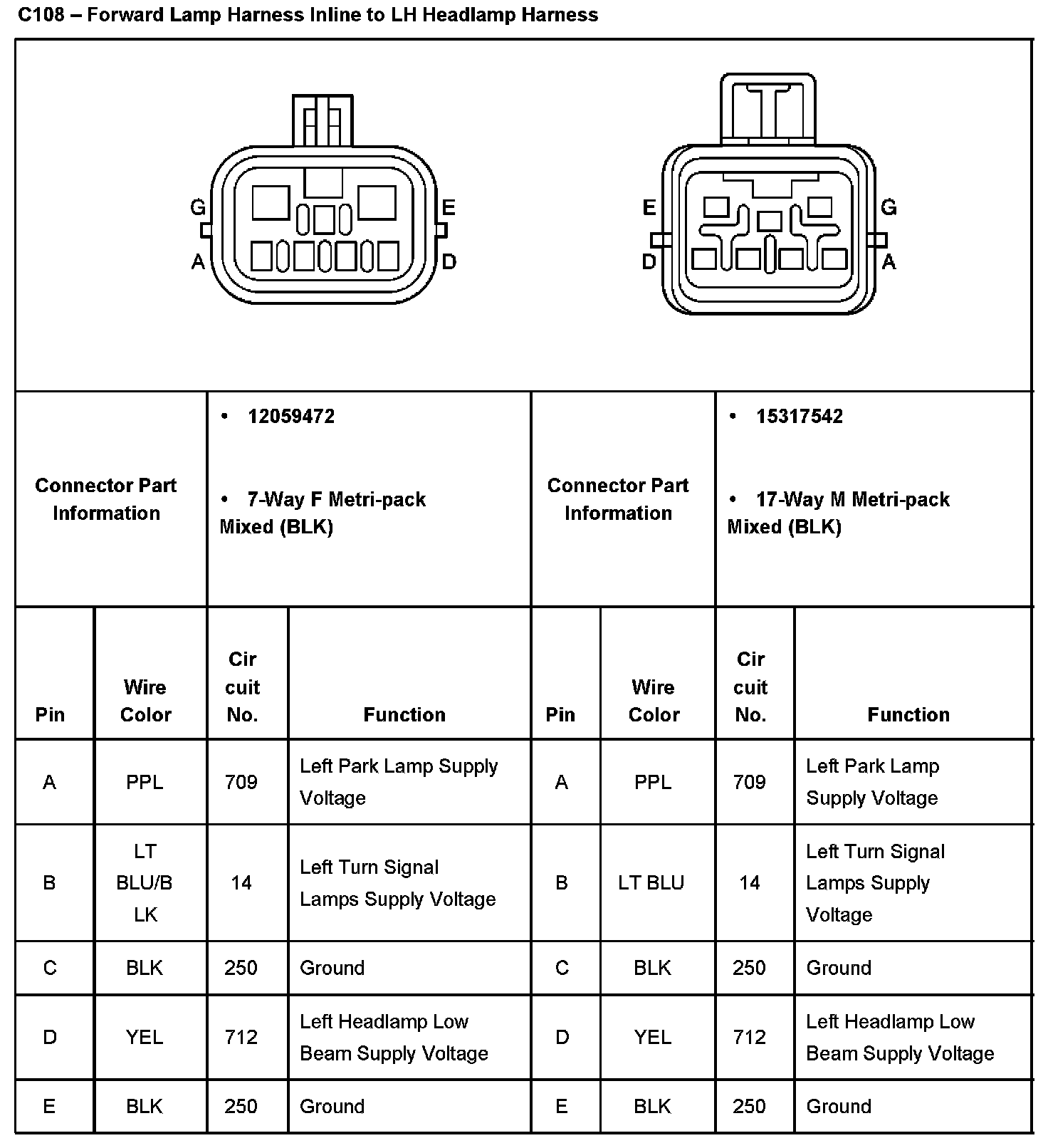

C108 - Forward Lamp Harness Inline To LH Headlamp Harness Part 1:

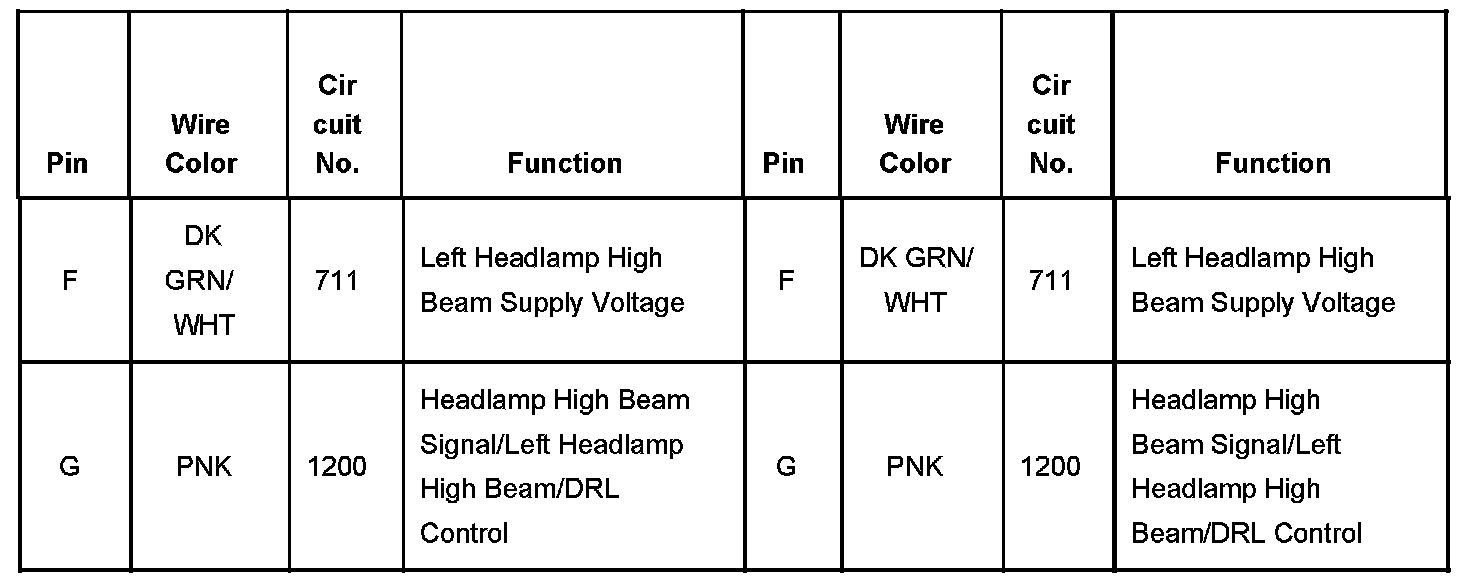

C108 - Forward Lamp Harness Inline To LH Headlamp Harness Part 2:
