Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Locations

Fuse Block: Locations

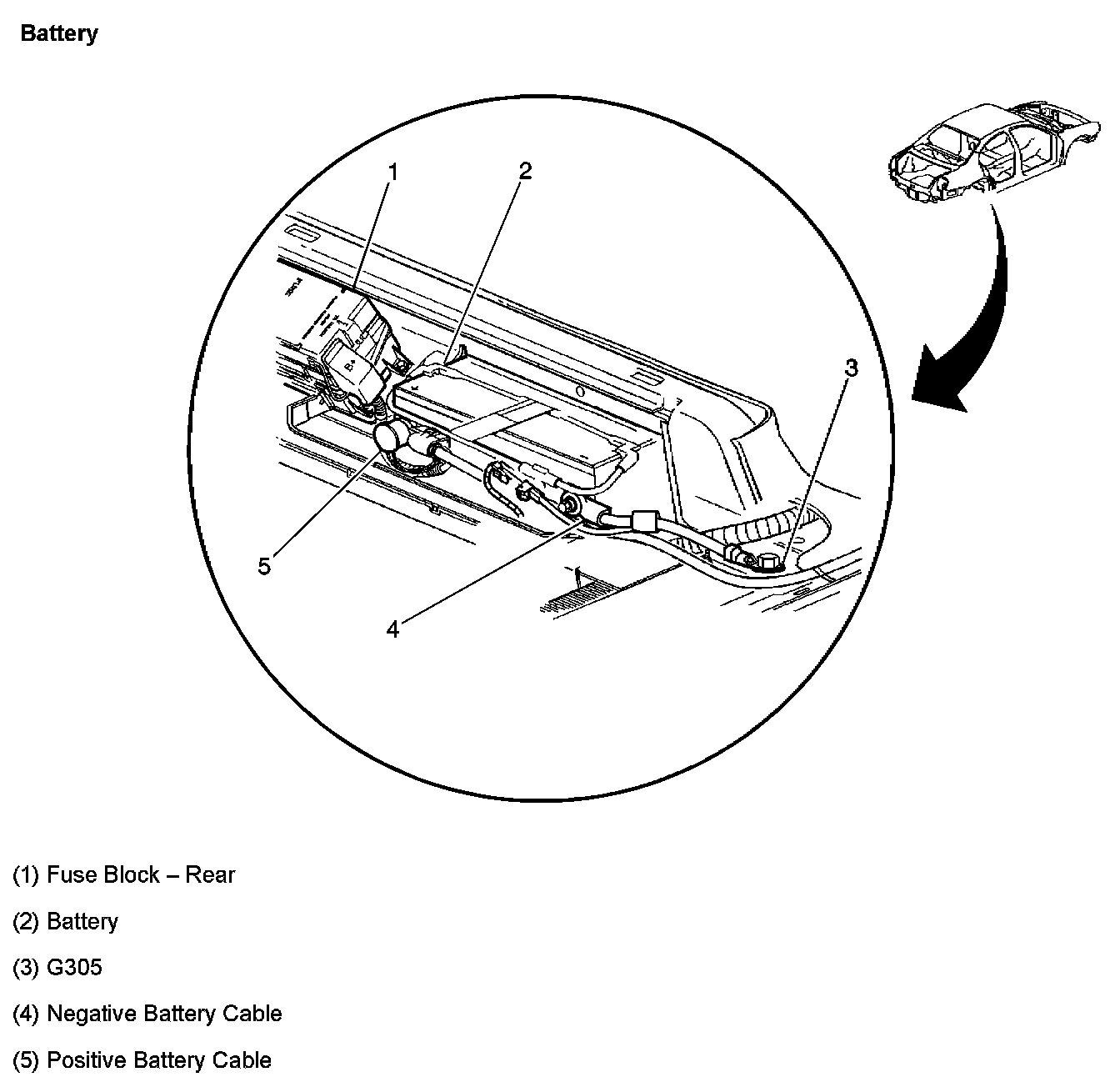

Battery:

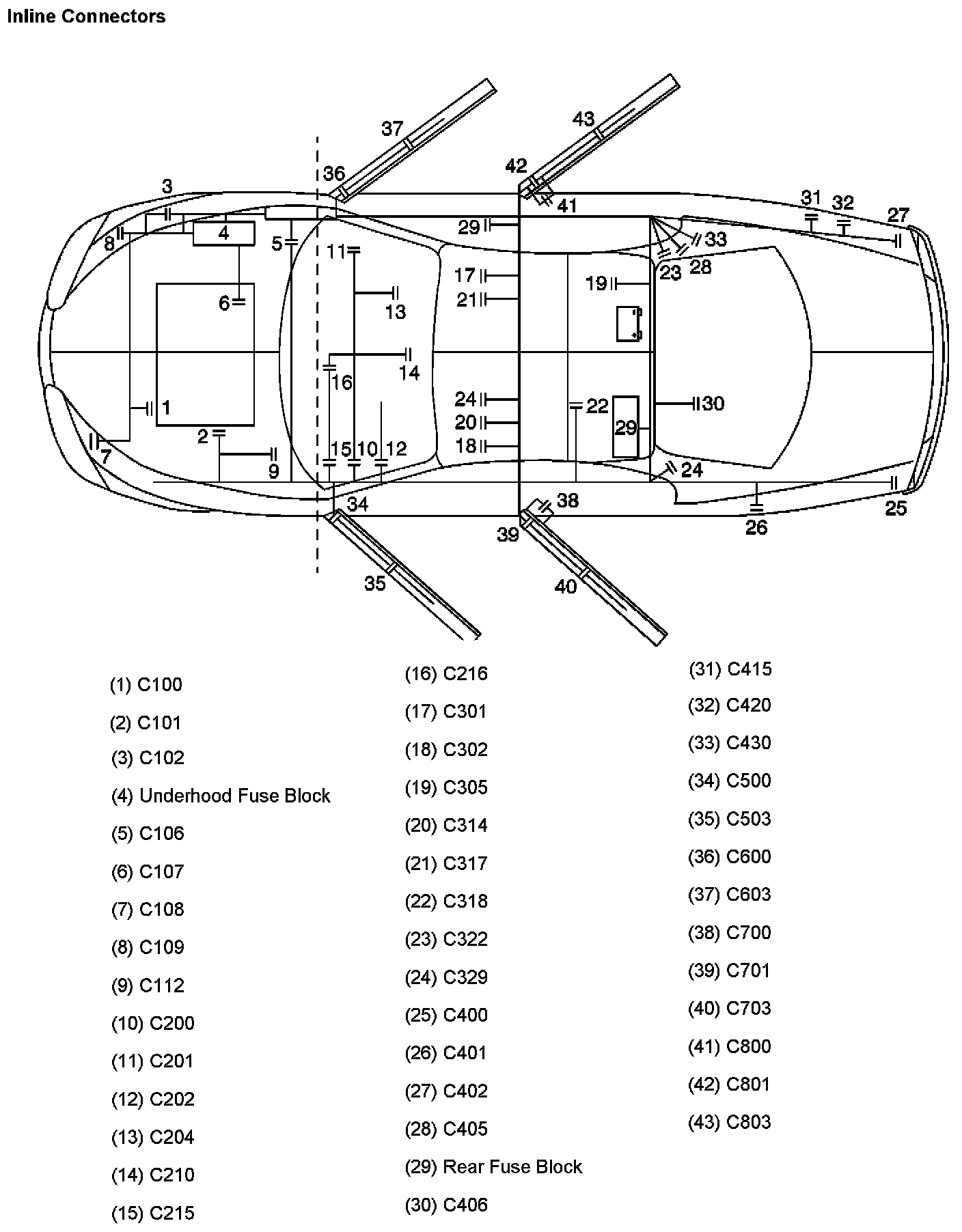

Inline Connectors:



Under The Rear Seat On The Left Side:



Fuse Block - Rear:

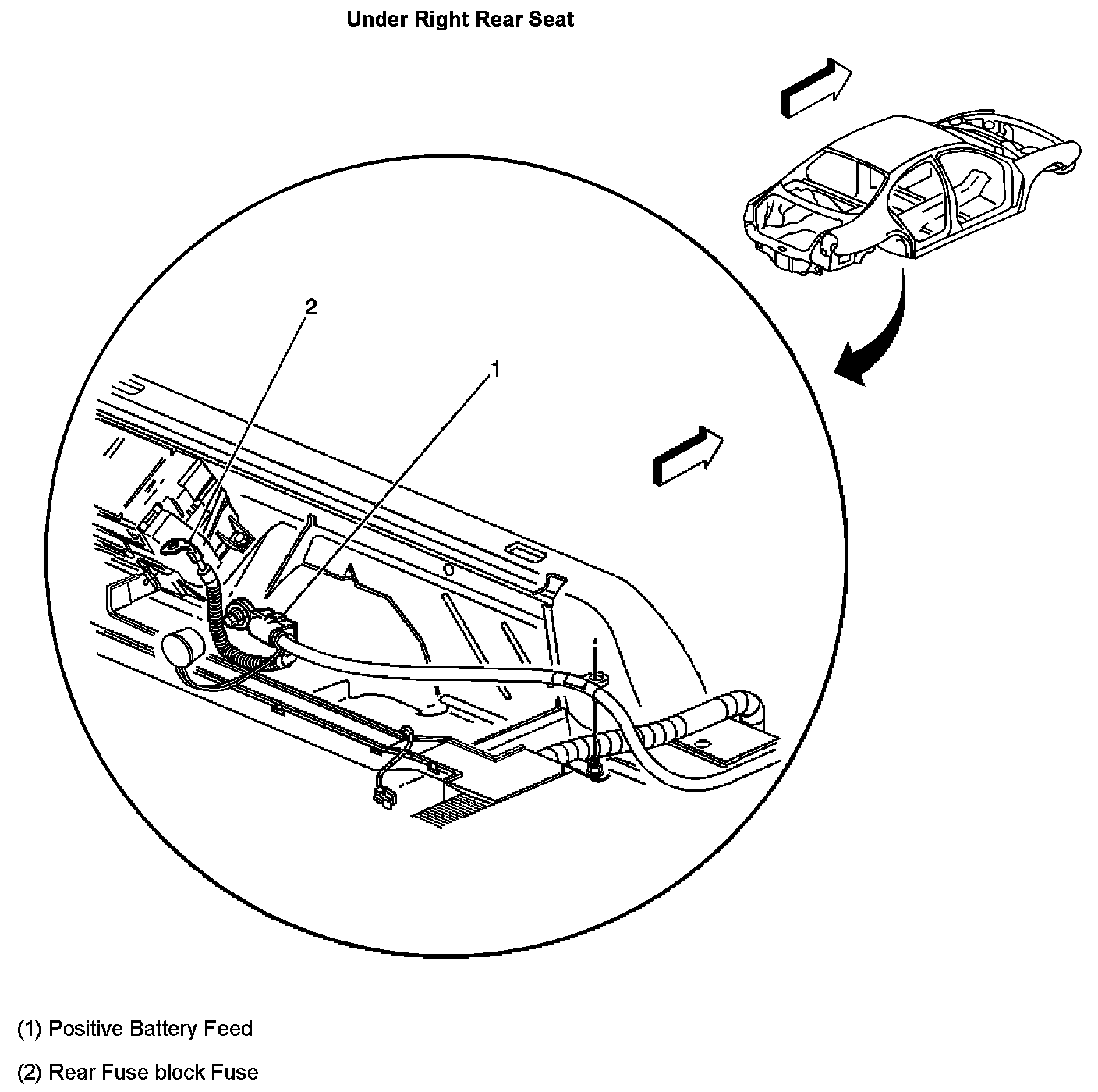

Under Right Rear Seat:
