Rear Fuse Block

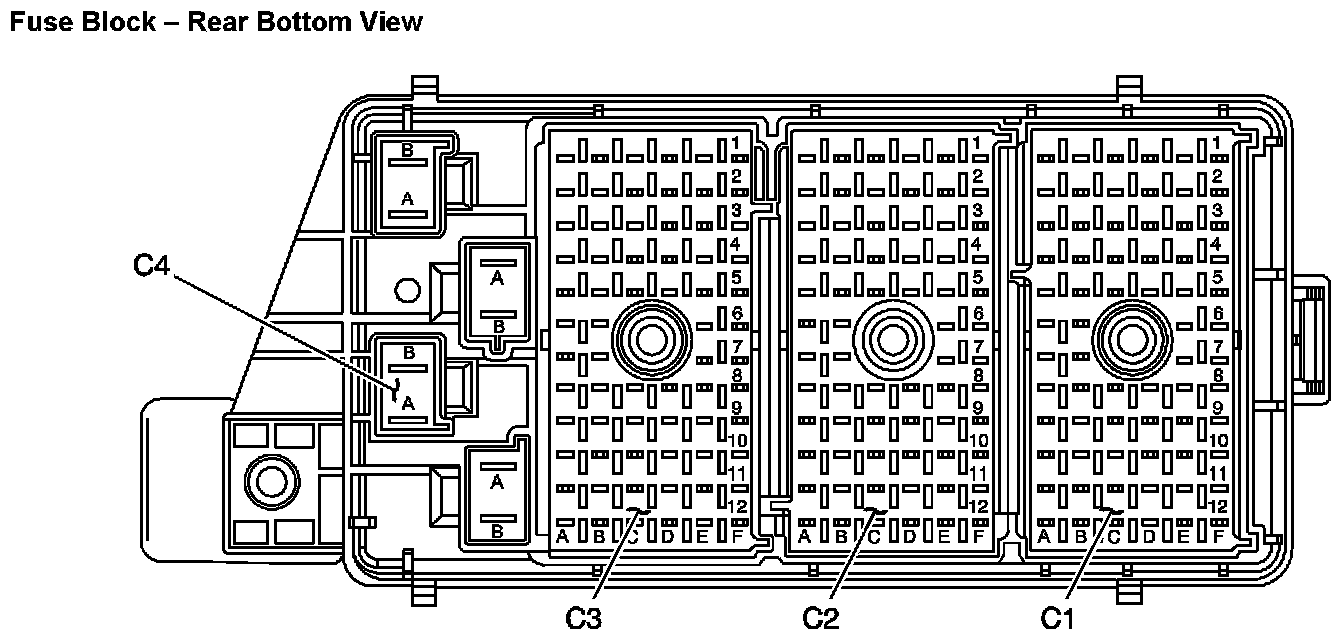

Location View:

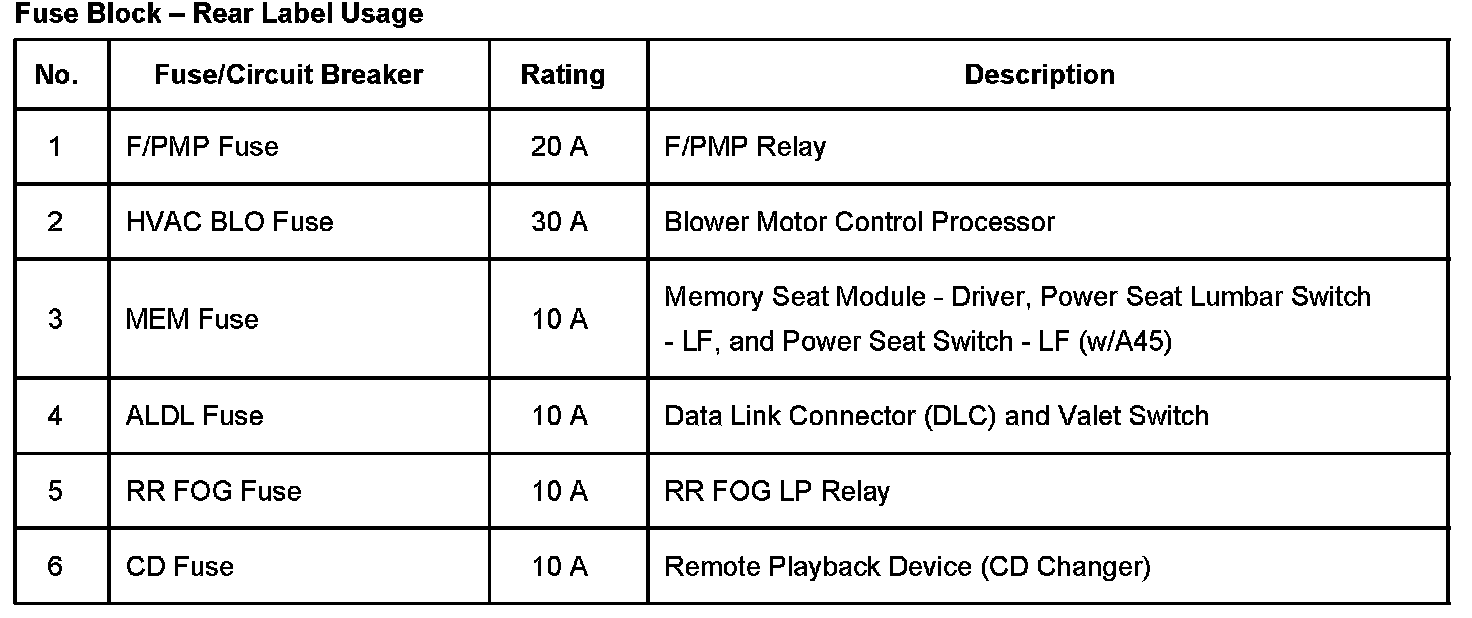

Application Table Part 1:

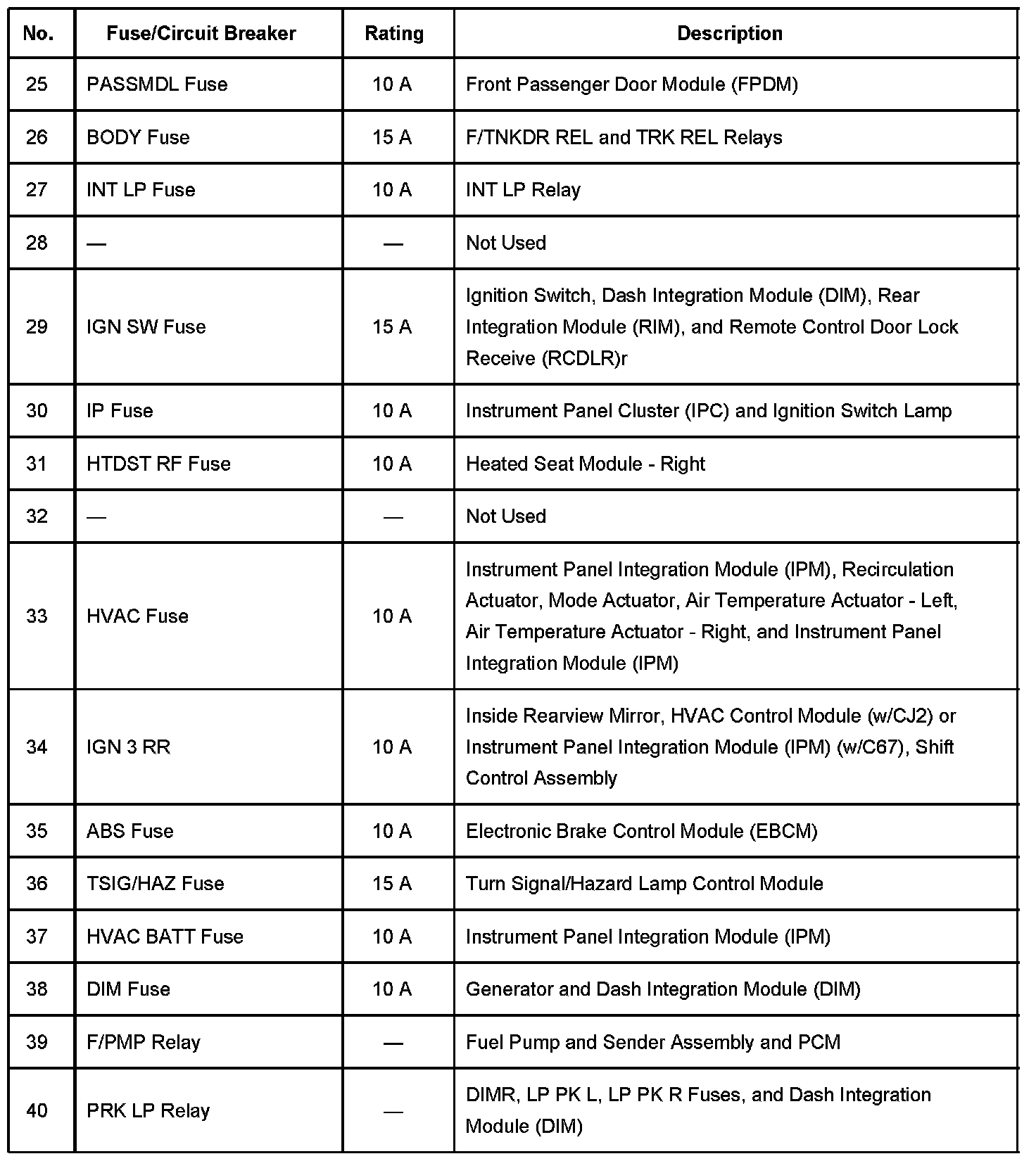

Application Table Part 2:

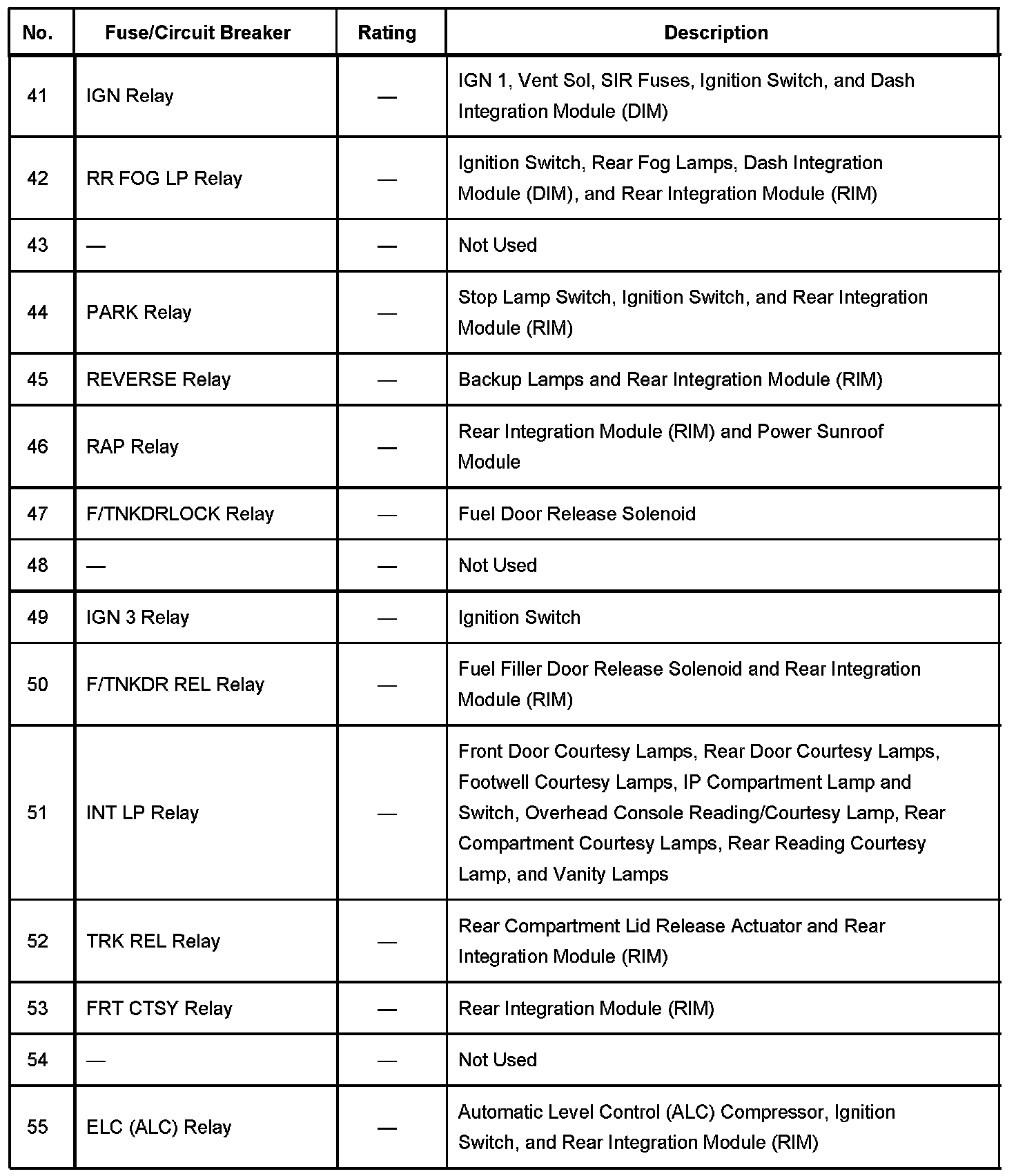

Application Table Part 3:




Application Table Part 4:




Application Table Part 5:

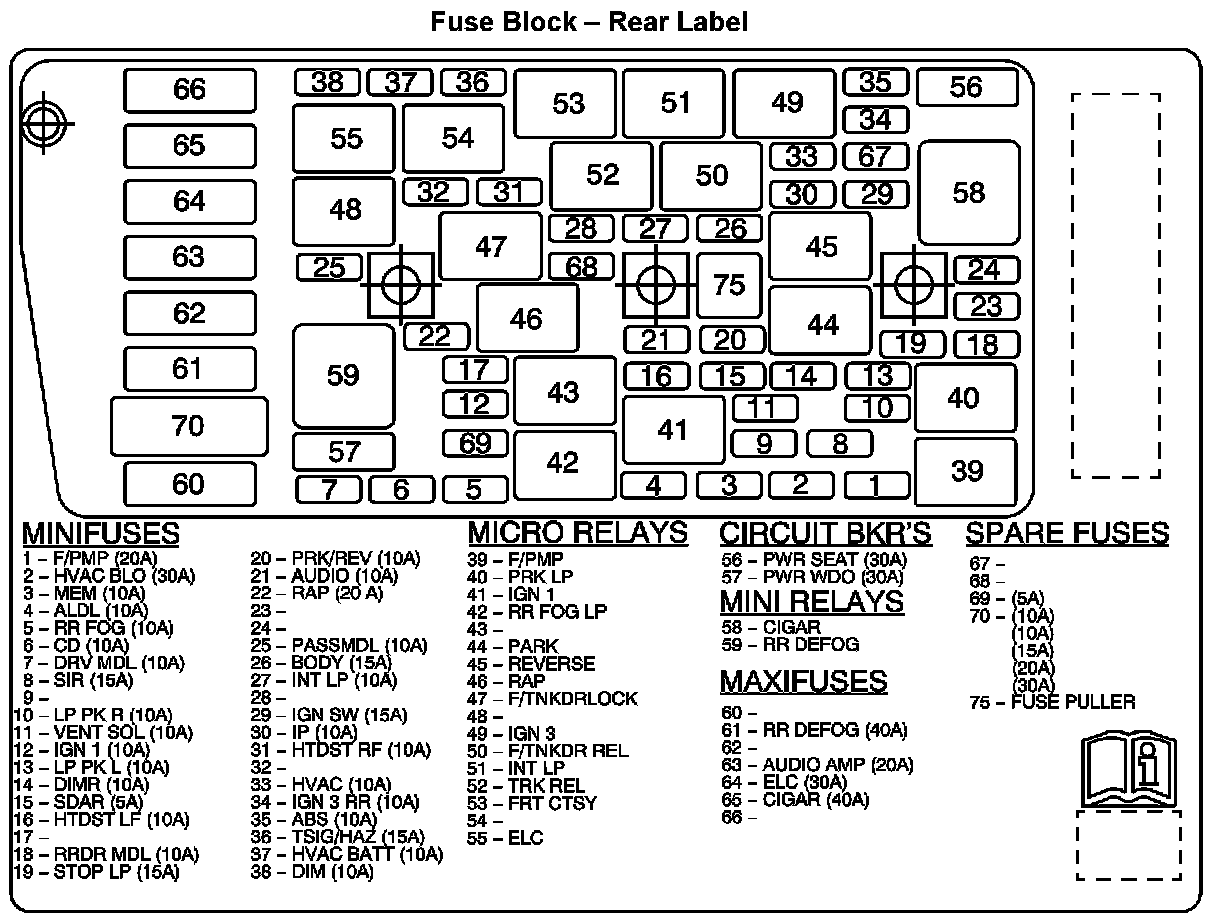

Location View:

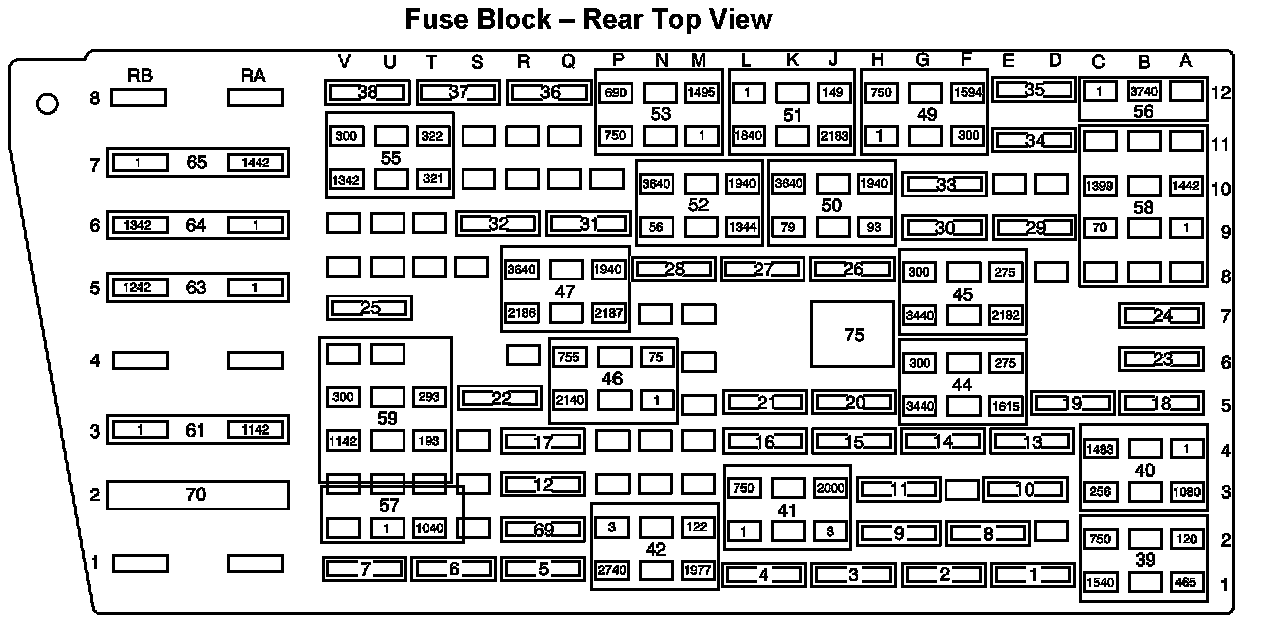

Location View:
