Generator Cable Replacement (L47)

REMOVAL PROCEDURE

IMPORTANT:
- Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
- Always route the replacement cable the same way as the original cable.

1. Disconnect the battery negative cable.
2. Remove the intake manifold.

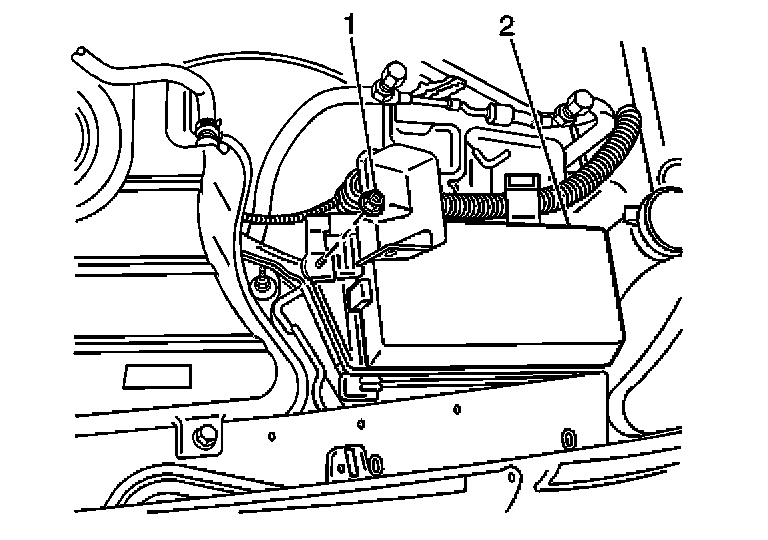

3. Remove the nut (1) securing the battery positive cable to the remote positive terminal.

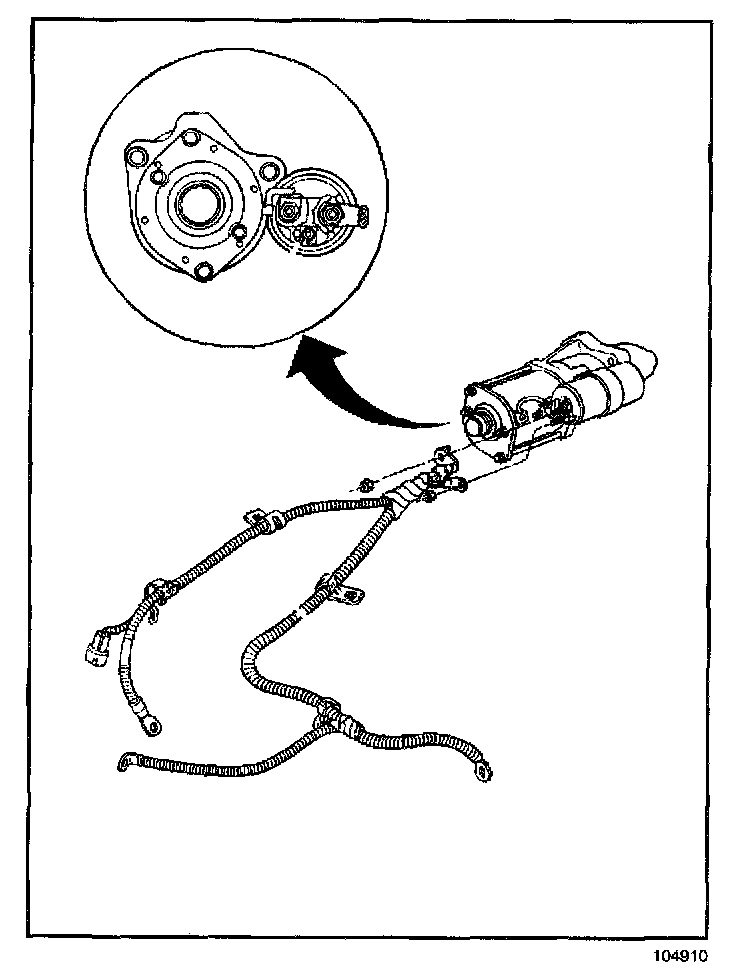

4. Disconnect the starter solenoid BAT terminal wire from the starter.

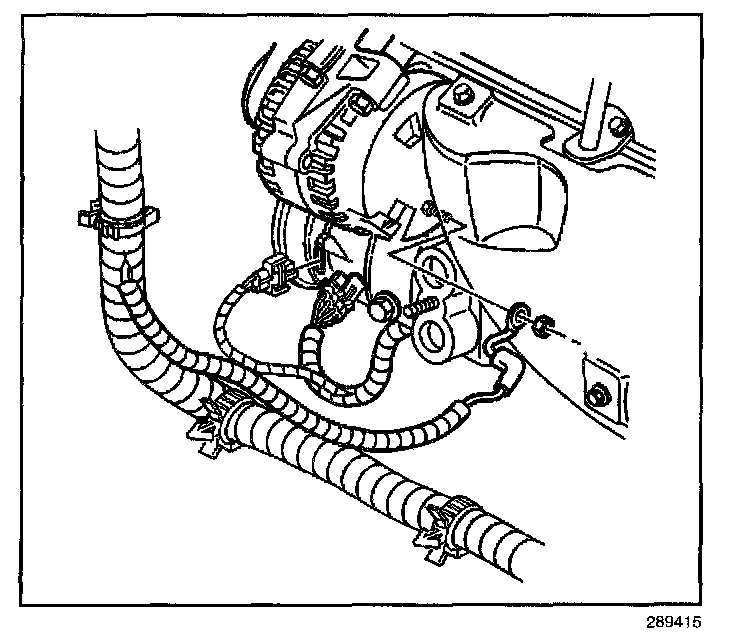

5. Reposition the protective boot from the generator output BAT terminal for access.
6. Remove the generator output BAT terminal nut and disconnect the positive lead from the generator.
7. Disconnect the cable harness clips from the front of the camshaft cover.
8. Remove the generator cable from the vehicle.

INSTALLATION PROCEDURE
1. Position the generator cable to the engine.




2. Connect the battery positive lead and install the generator output BAT terminal nut.

Tighten
Tighten the generator output BAT terminal nut to 12.5 N.m (111 lb in).

NOTE: Refer to Fastener Notice in Service Precautions.

3. Press the protective boot on to the generator output BAT terminal.
4. Connect the cable harness clips to the front of the camshaft cover.




5. Connect the starter solenoid BAT terminal wire.

Tighten
Tighten the starter solenoid BAT terminal nut to 10 N.m (89 lb in).




6. Install the nut (1) securing the battery positive cable to the remote positive terminal.

Tighten
Tighten the battery positive cable to remote positive terminal nut to 12 N.m (106 lb in).

7. Install the intake manifold.
8. Connect the battery negative cable.
