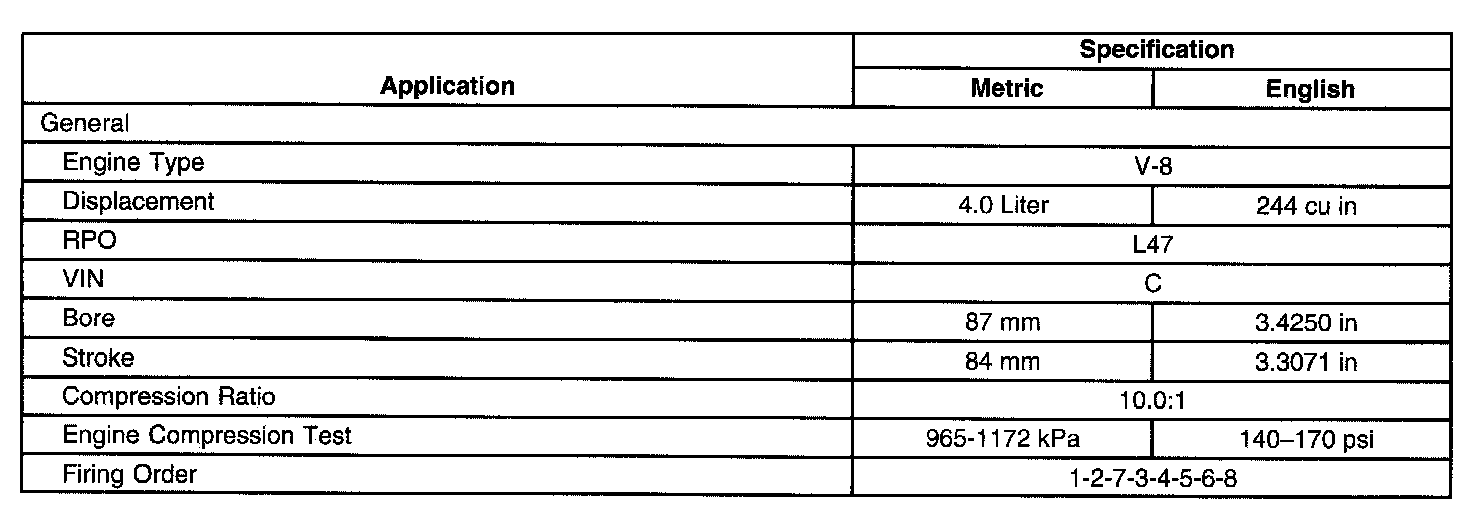

Engine Data Specifications

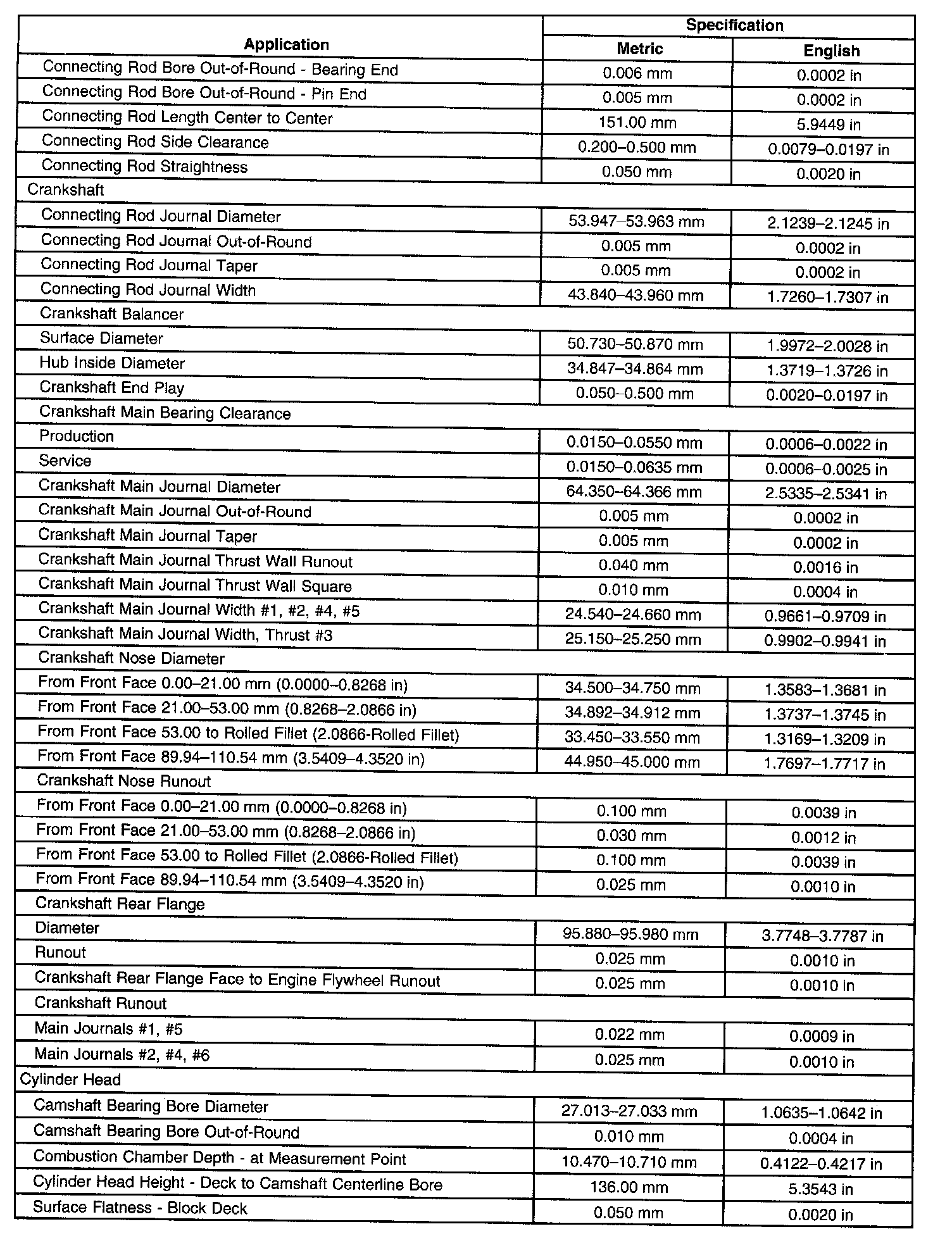

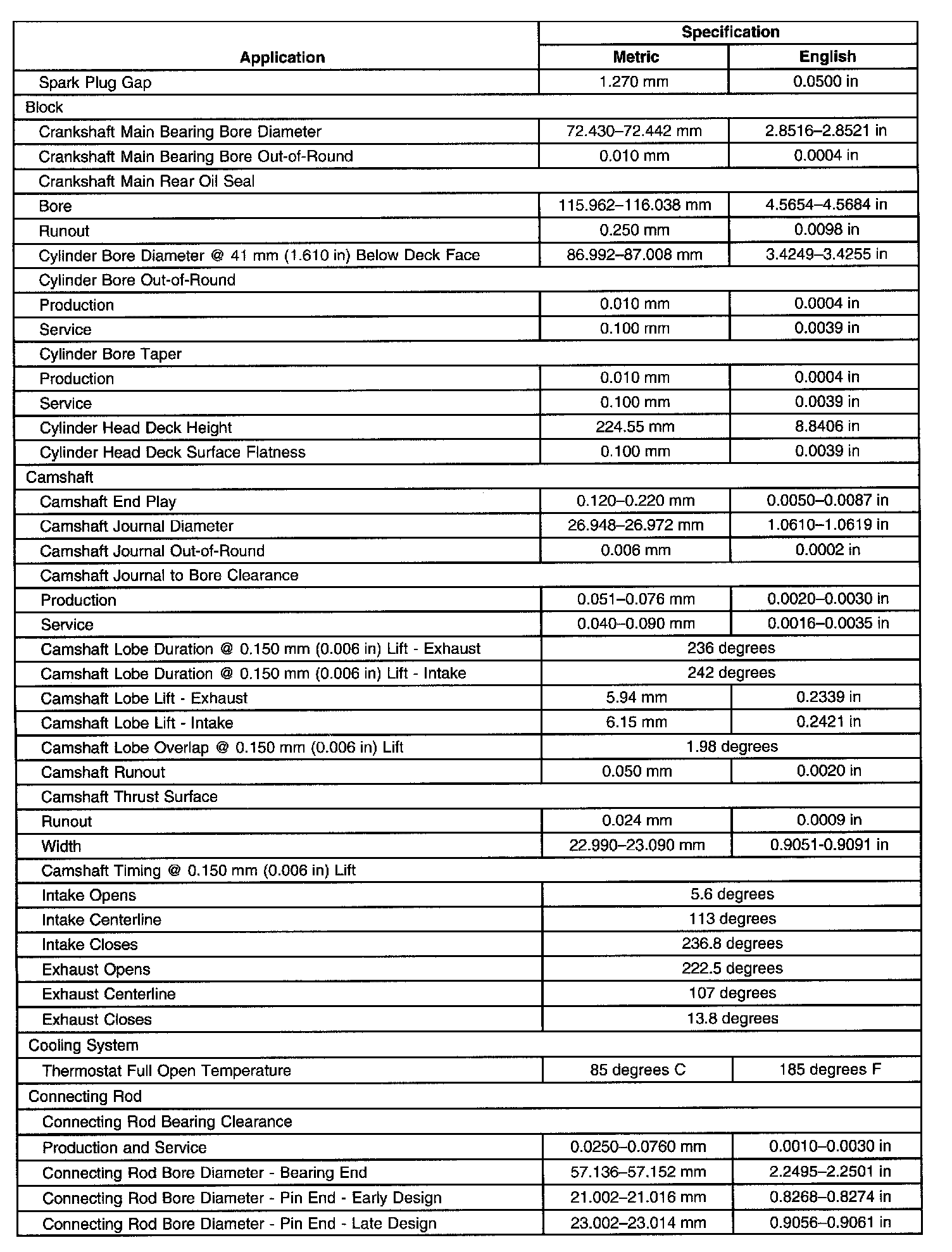

Specifications

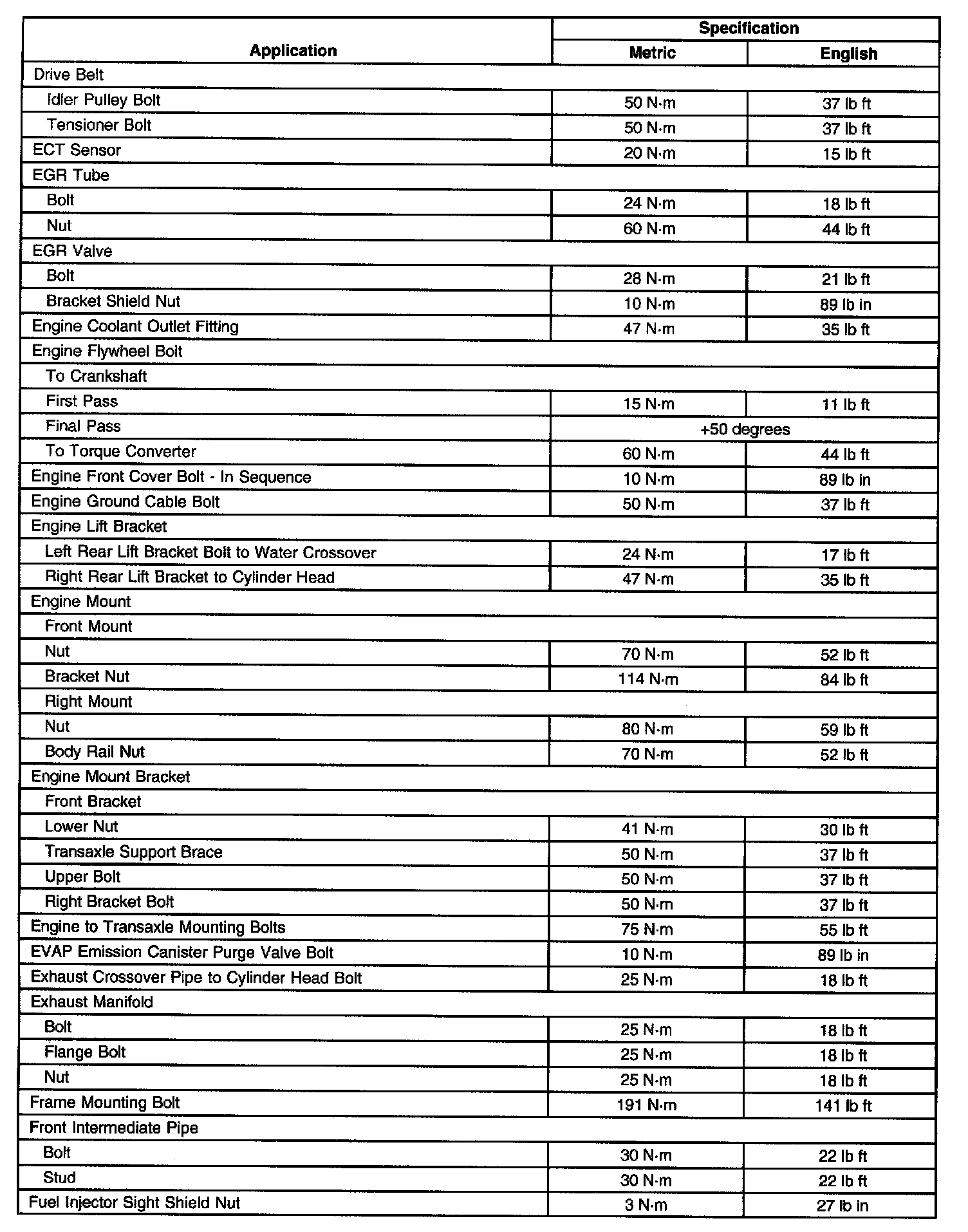

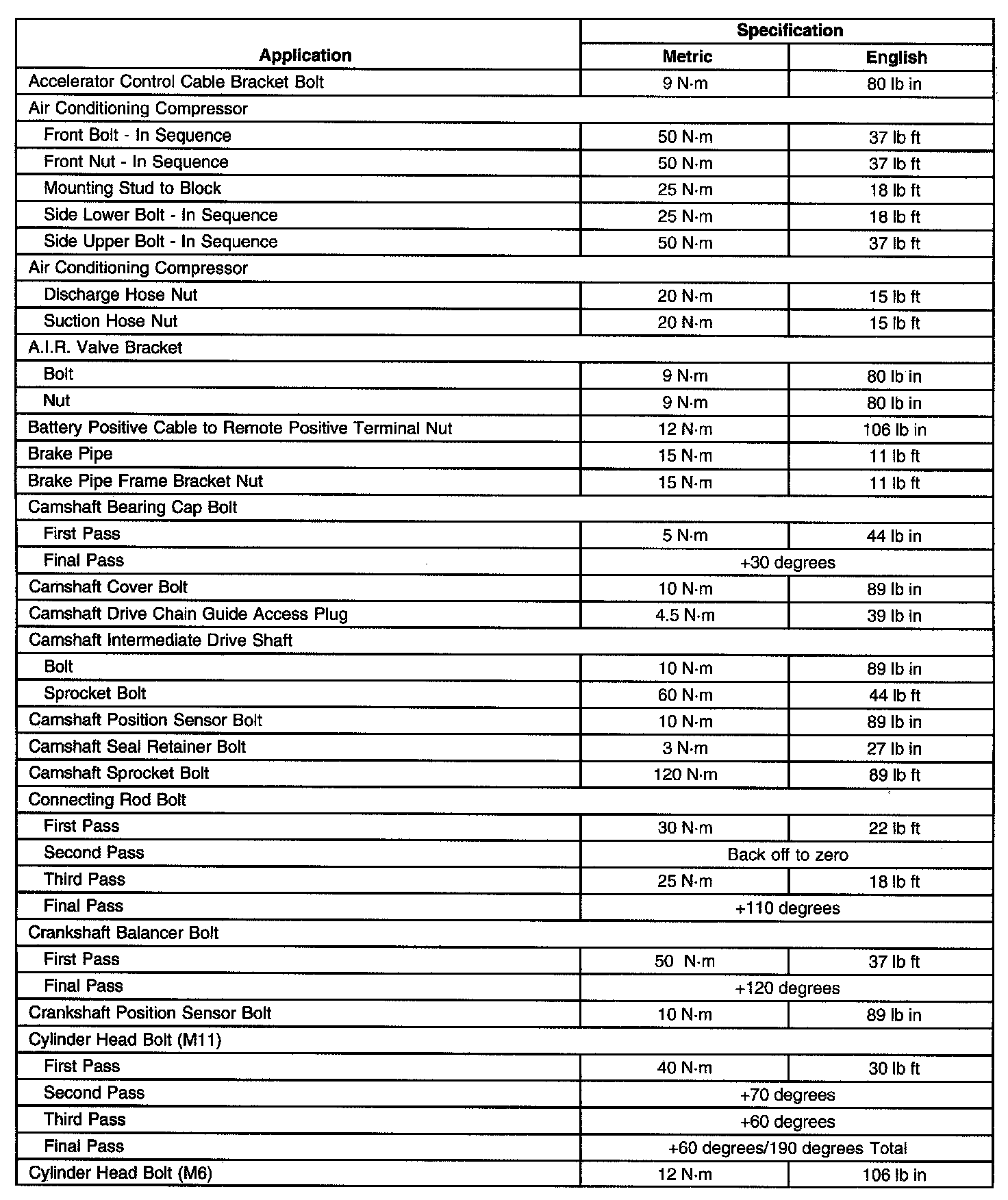

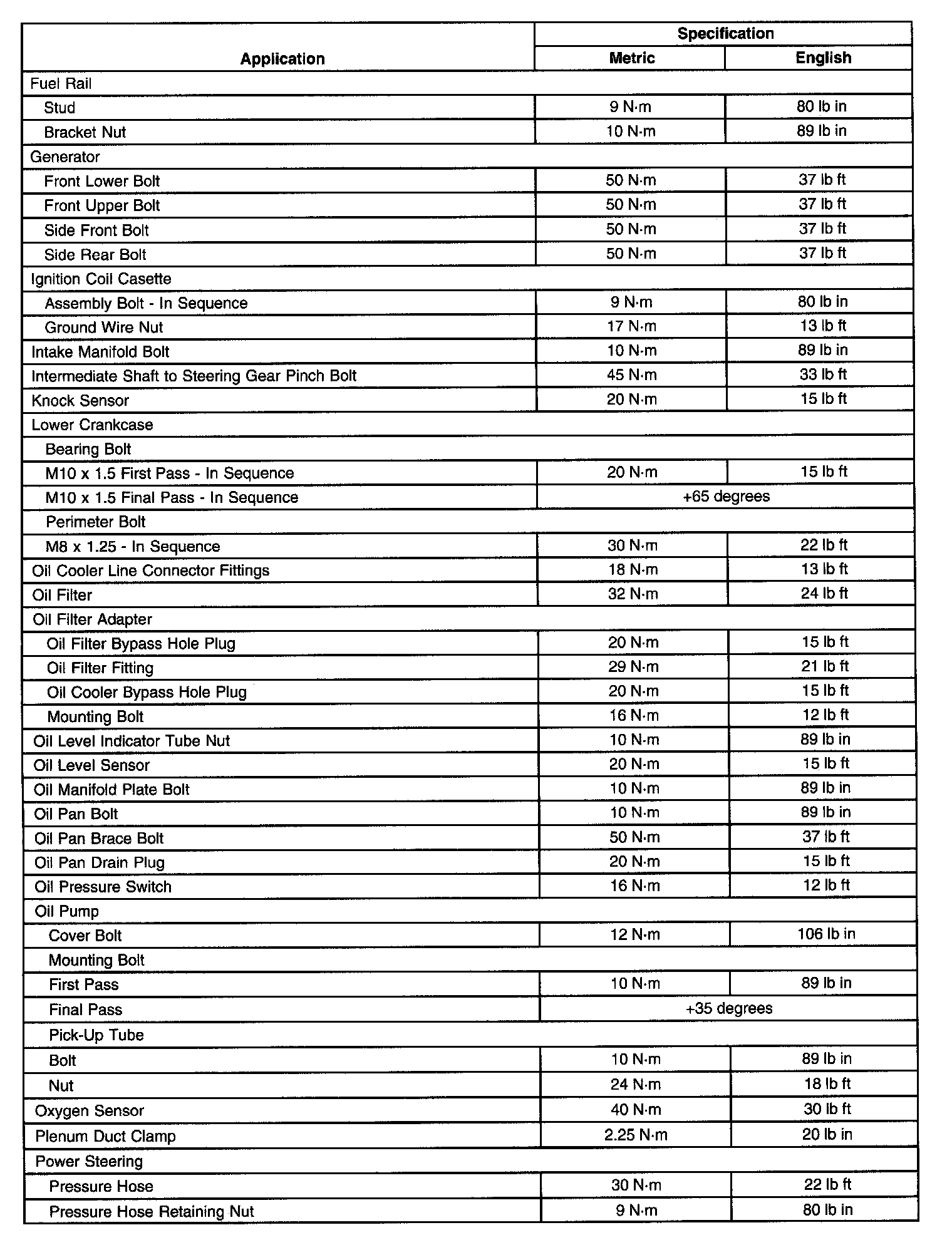

Fastener Tightening




















Engine Mechanical

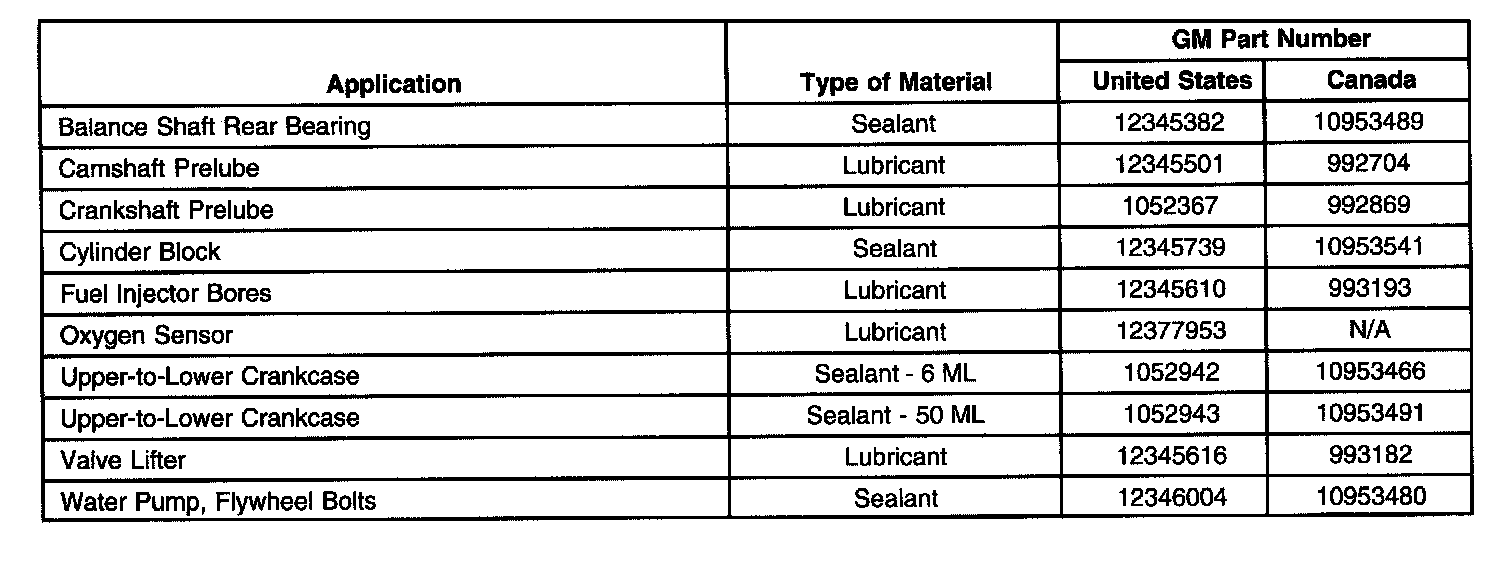

Sealers, Adhesives and Lubricants


Cylinder Head

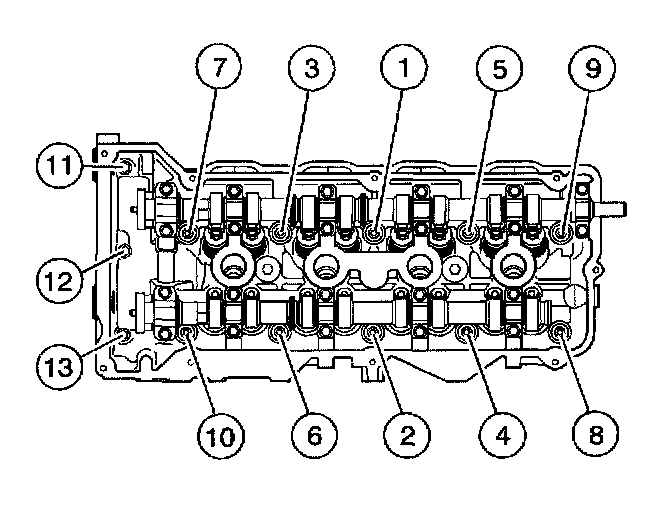

Left Cylinder Head Tightening Sequence:

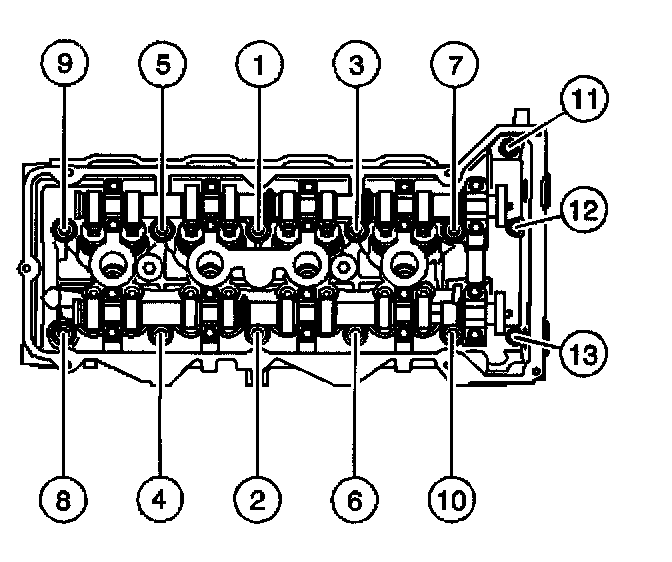

Right Cylinder Head Tightening Sequence:

Important: DO NOT reuse the M11 cylinder head bolts.

Note: Refer to Cylinder Head, Service and Repair for sequence and step details.


Intake Manifold

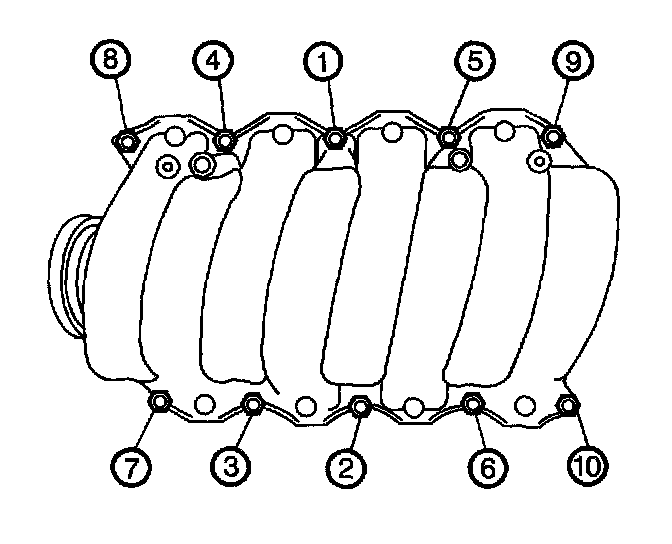

Intake Manifold Tightening Sequence:

Camshaft Bearing Caps

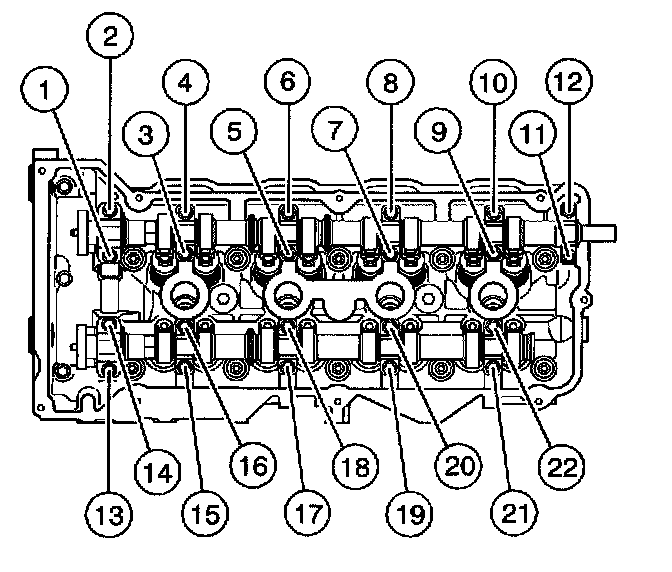

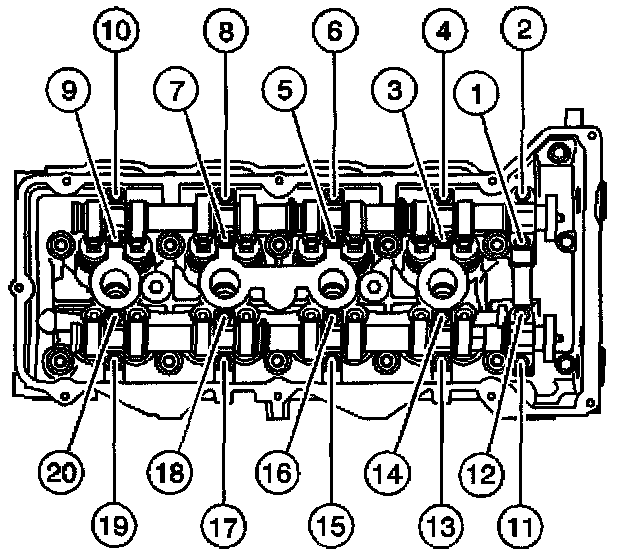

Left Camshaft Bearing Cap Tightening Sequence:

Right Camshaft Bearing Cap Tightening Sequence:
