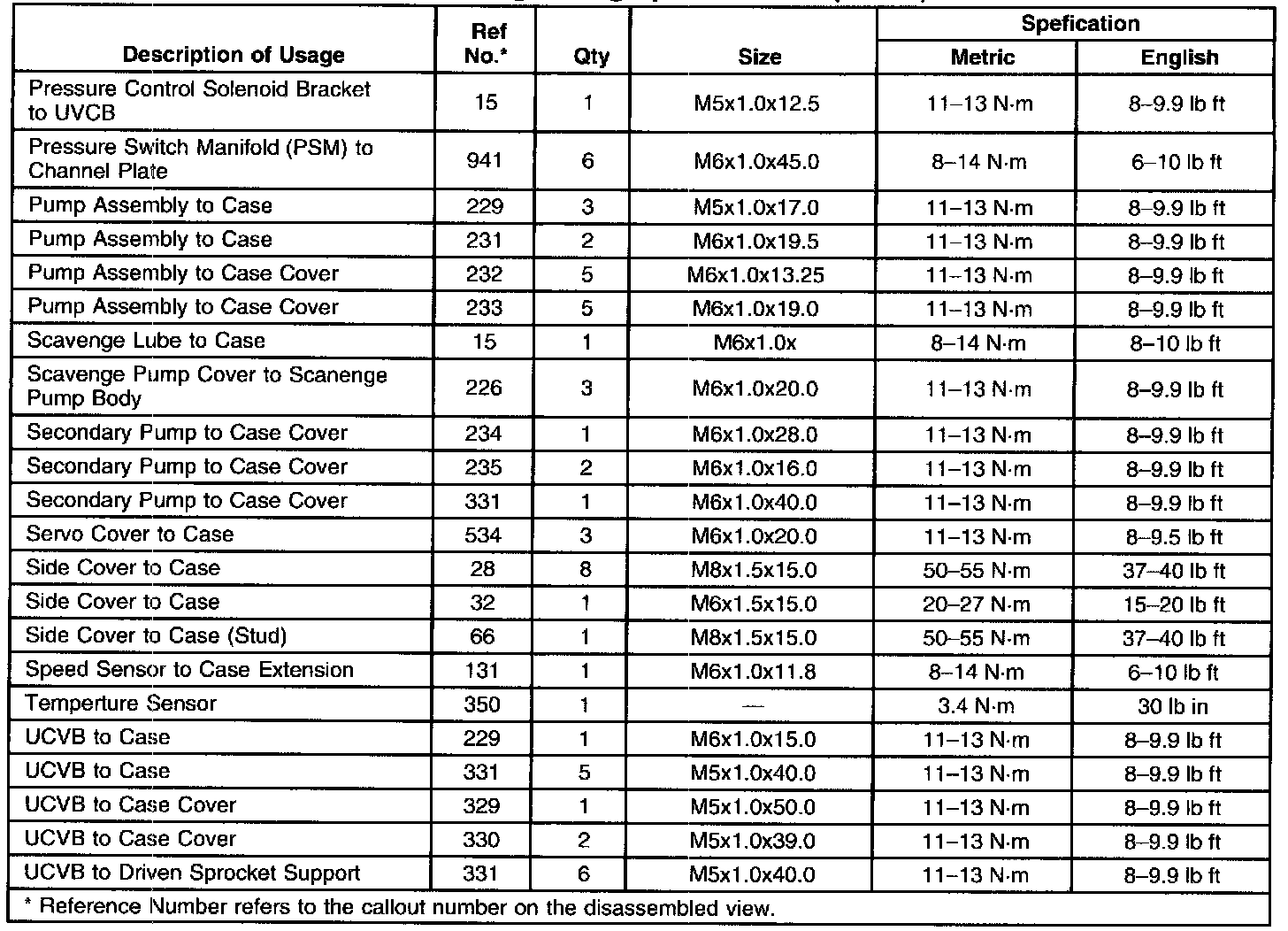

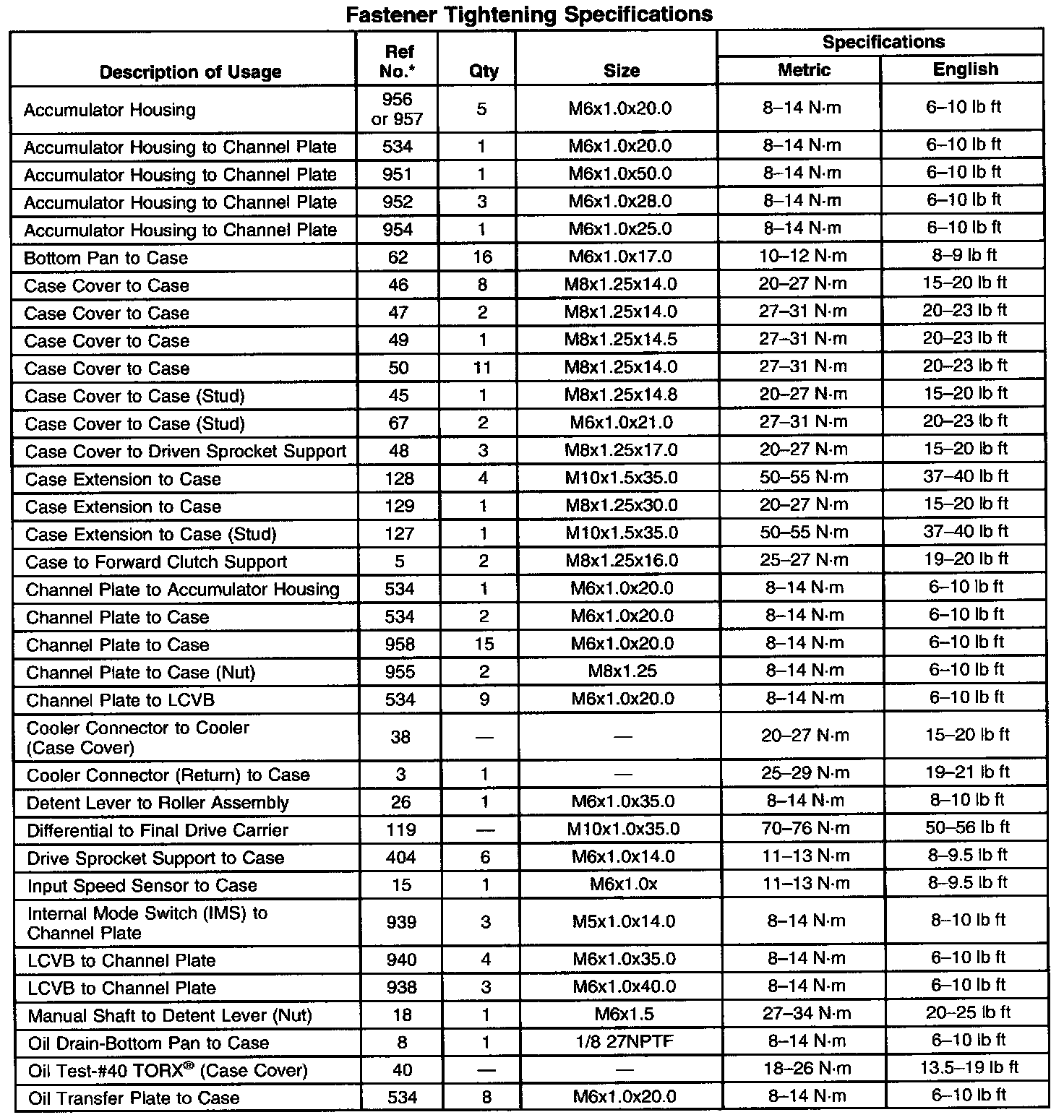

Fastener Tightening Specifications - Unit Repair

NOTE: "Reference Number" refers to the legend numbered items in the exploded views located at "Diagrams/Exploded Views". Refer there for visual identification of the fastener listed. Exploded Views
