Washer Fluid Level Switch: Service and Repair

WASHER SOLVENT CONTAINER LEVEL SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Drain the washer solvent container.
2. Remove the right front fascia extension.

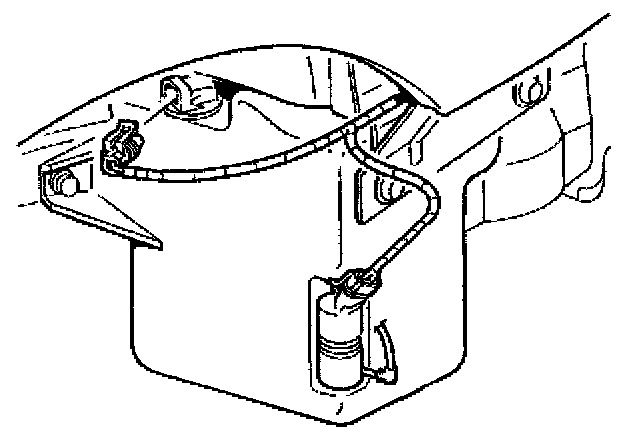

3. Disconnect the electrical connector from the washer solvent level sensor.

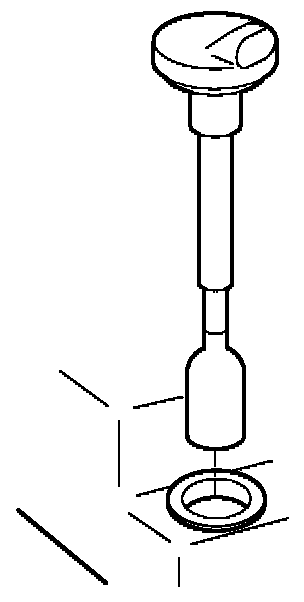

4. Remove the washer solvent level sensor from the washer solvent container.

INSTALLATION PROCEDURE

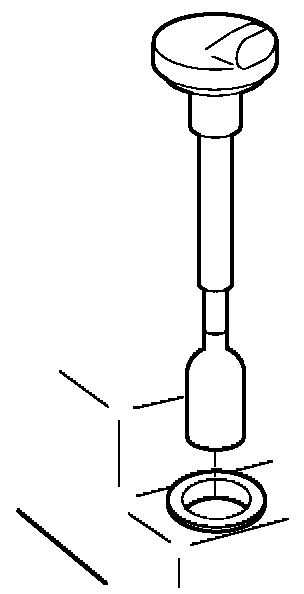

1. Install the washer solvent level sensor in the washer solvent container.

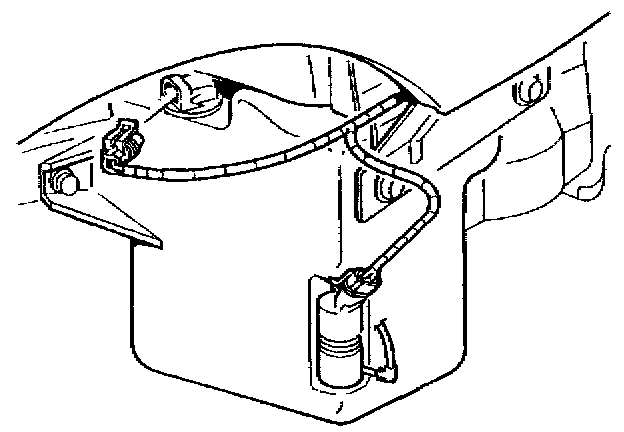

2. Connect the electrical connector to the washer solvent level sensor.
3. Install the right front fascia extension.
4. Fill the washer solvent container.
