Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REPLACEMENT

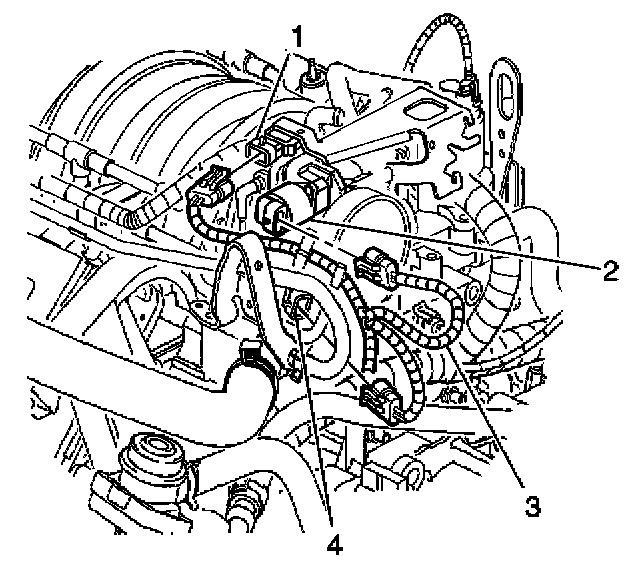

REMOVAL PROCEDURE




1. Turn the ignition OFF.
2. Disconnect the MAP sensor electrical connector.
3. Remove the cable bracket bolts and bracket.
4. Remove the MAP (1) sensor from the intake manifold.
5. Inspect the MAP sensor grommet for wear or damage. If a problem is found, replace the sensor as necessary.

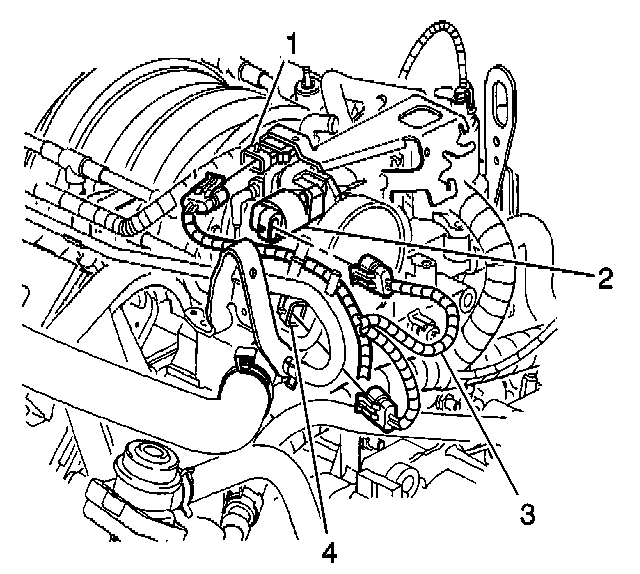

INSTALLATION PROCEDURE




1. Install the MAP sensor (1) into the intake manifold.
2. Install the cable bracket and bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bracket bolts to 12 N.m (106 lb in).

3. Connect the MAP sensor electrical connector.
