Knock Sensor: Service and Repair

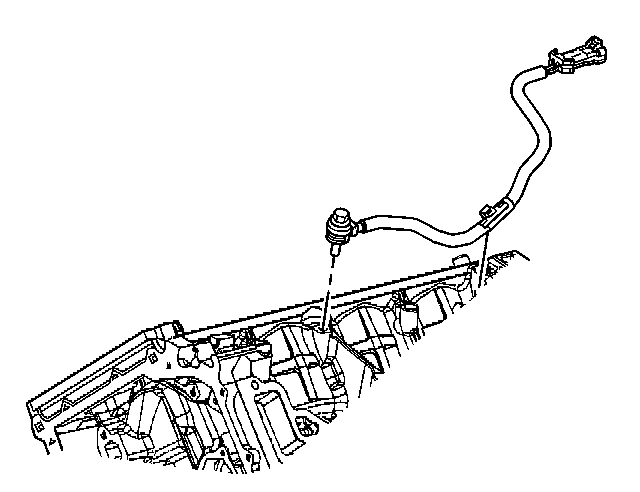

REMOVAL PROCEDURE




1. Remove the intake manifold.
2. Disconnect the knock sensor electrical connector.
3. Remove the knock sensor.

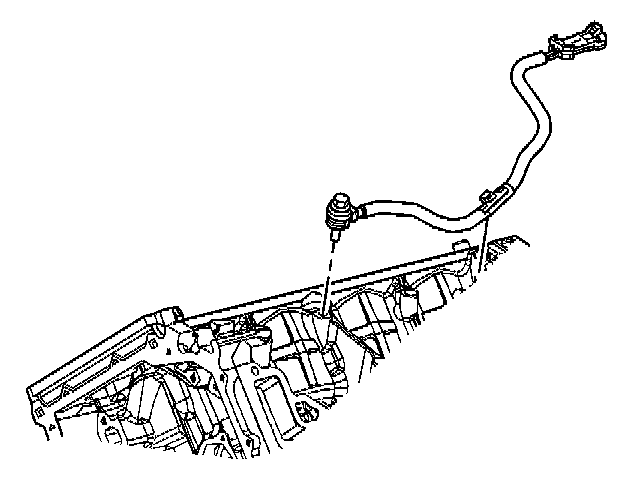

INSTALLATION PROCEDURE




1. Install the knock sensor.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the knock sensor to 25 N.m (18 lb ft).

2. Connect the knock sensor electrical connector.
3. Reinstall the intake manifold.
