Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Hazard Warning Switch >> Locations

Hazard Warning Switch: Locations

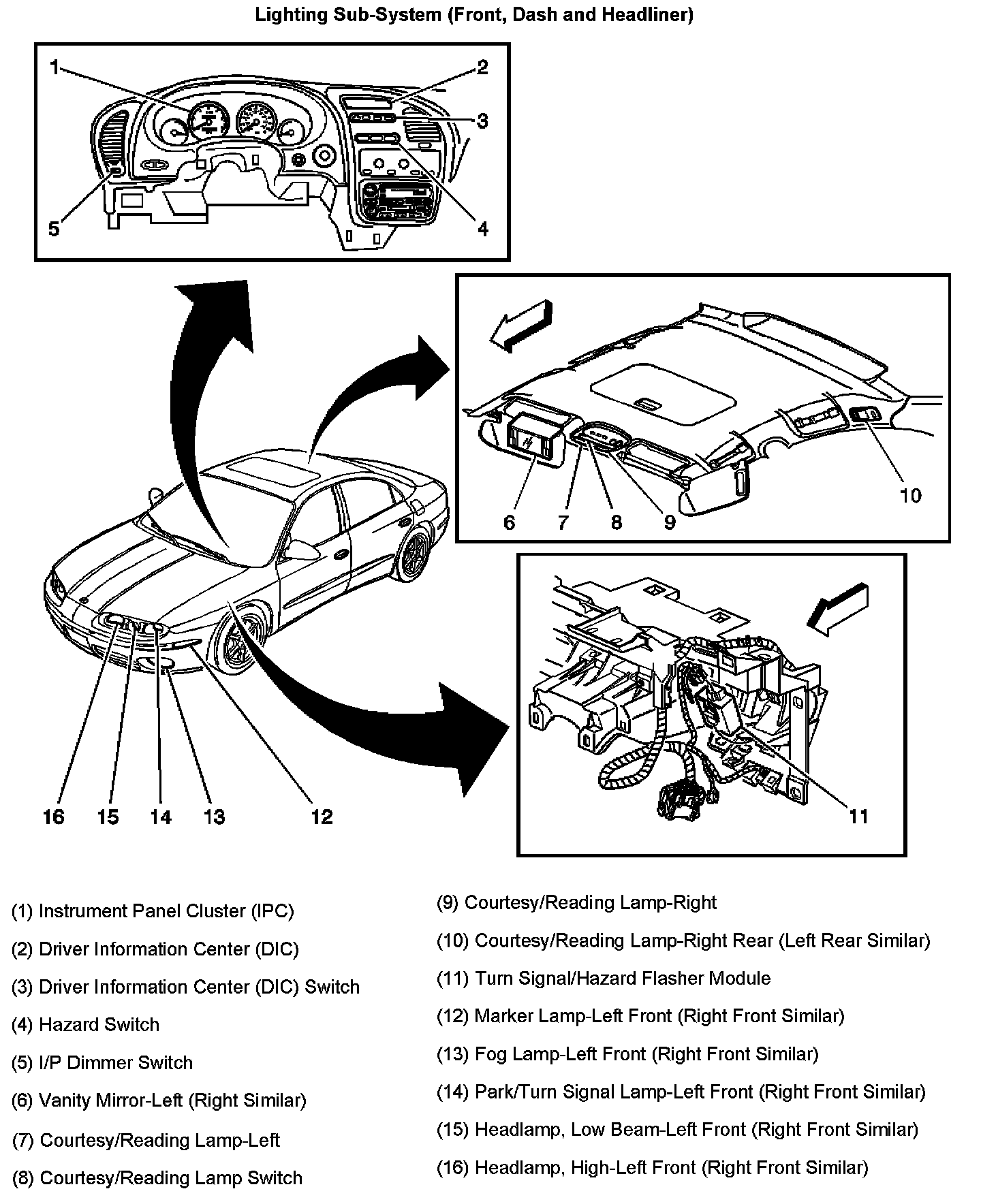

Lighting Sub-System (Front, Dash And Headliner):



Instrument Panel Cluster (IPC):
