Dimmer Switch: Service and Repair

INSTRUMENT PANEL (I/P) DIMMER SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the left I/P endcap.

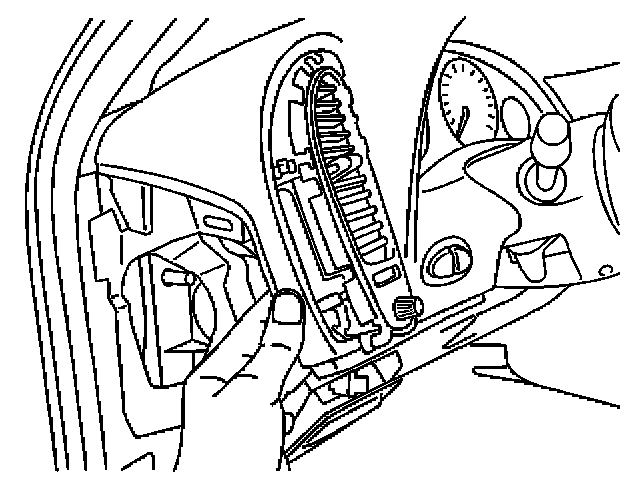

2. Remove the left air deflector.

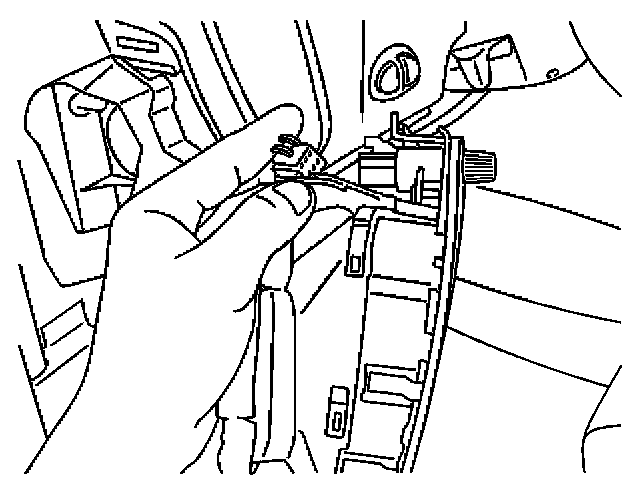

3. Disconnect the electrical connector from the I/P dimmer switch.
4. Remove the I/P dimmer switch knob by pulling outward removing it from the switch.
5. Remove the fasteners securing the I/P dimmer switch to the air deflector.
6. Remove the I/P dimmer switch.

INSTALLATION PROCEDURE
1. Position the I/P dimmer switch to the air deflector.
2. Install the fasteners in order to secure the I/P dimmer switch to the air deflector.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the fasteners to 2 N.m (18 lb in).




3. Connect the electrical connector to the I/P dimmer switch.
4. Install the I/P dimmer switch knob.

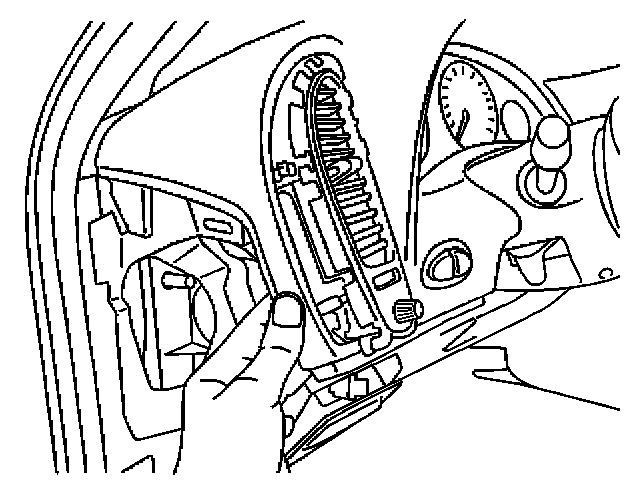

5. Install the left air deflector.
6. Install the left I/P endcap.
