Sunload and Twilight Sentinel Sensor Replacement

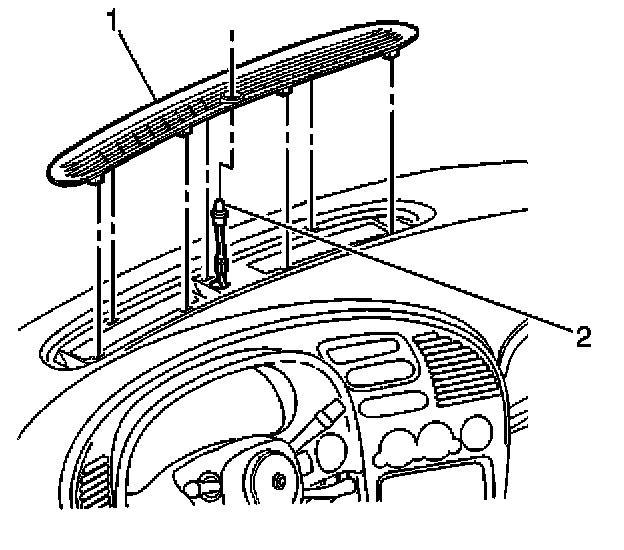

SUNLOAD AND TWILIGHT SENTINEL SENSOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the defroster grille.
2. Remove the sunload and twilight sentinel sensor (2) from the defroster grill (1) by turning 1/4 turn counter clockwise.
3. Disconnect the electrical connector from the sunload and twilight sentinel sensor (2).

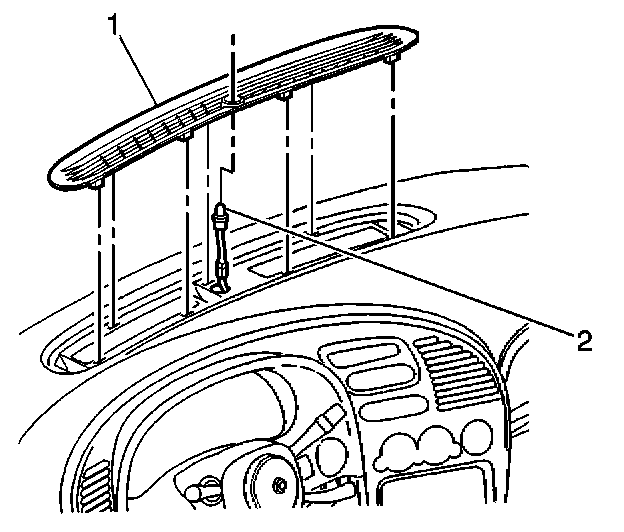

INSTALLATION PROCEDURE
1. Connect the electrical connector to the sunload and twilight sentinel sensor (2).
2. Install the sunload and twilight sentinel sensor (2) to the defroster grill (1).
3. Turn the sunload and twilight sentinel sensor 1/4 turn clockwise in order to secure the sensor to the defroster grill.
4. Install the defroster grille (1).
