Cruise Control Switch: Service and Repair

CRUISE CONTROL SWITCH REPLACEMENT

REMOVAL PROCEDURE
1. Disable the SIR System. Refer to SIR Disabling and Enabling Zone 3 in Restraint Systems.

CAUTION: Refer to SIR Caution in Service Precautions.

2. Remove the steering wheel.

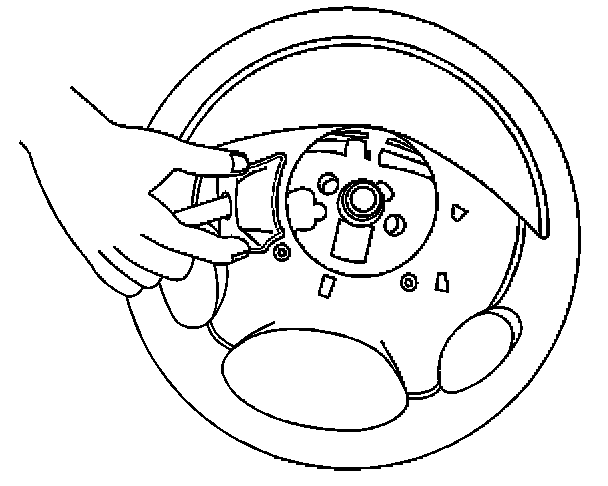

3. Remove the access plate covering the back of the switch.

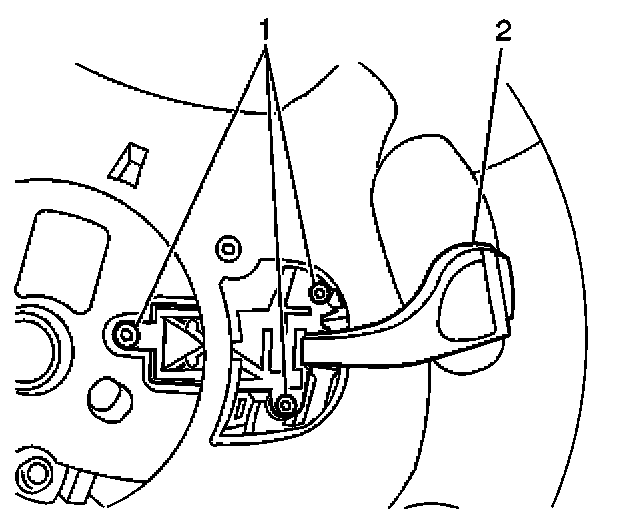

4. Remove the cruise control lever retaining screws (1).
5. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical connector.

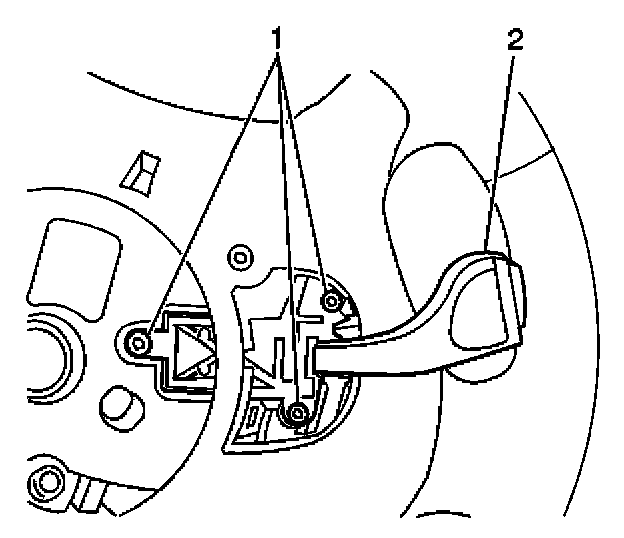

2. Position the cruise control lever (2) in the opening on the steering wheel.
3. Install the cruise control lever retaining screws (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to 2.30 N.m (20 lb in).

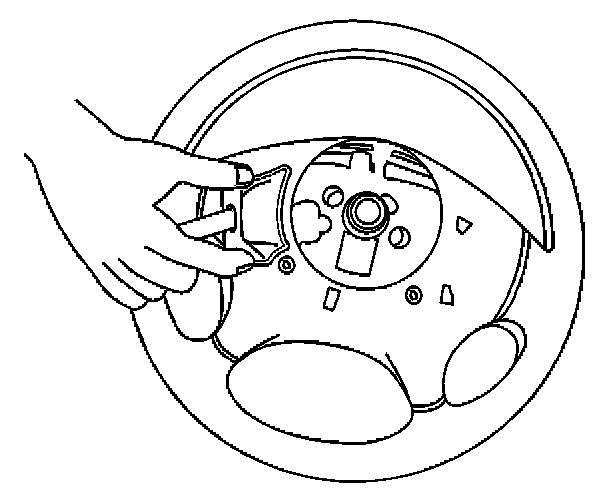

4. Install the access plate.
5. Install the steering wheel.
6. Enable the SIR System. Refer to SIR Disabling and Enabling Zone 3 in Restraint Systems.
