Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Lateral Accelerometer >> Locations

Lateral Accelerometer: Locations

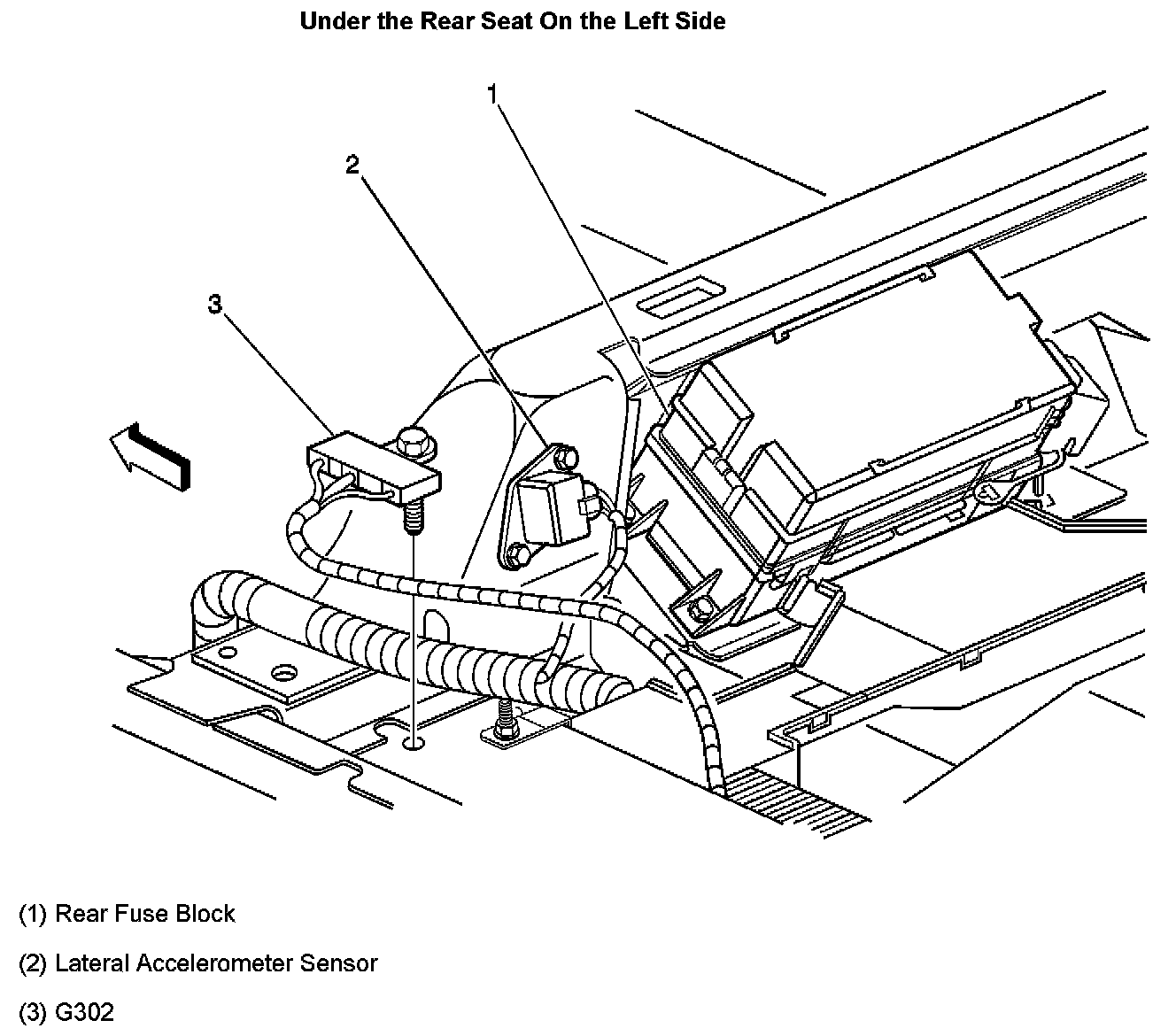

Under The Rear Seat On The Left Side:



Fuse Block - Rear:
