Seat Temperature Switch: Service and Repair

Heated Seat Switch Replacement

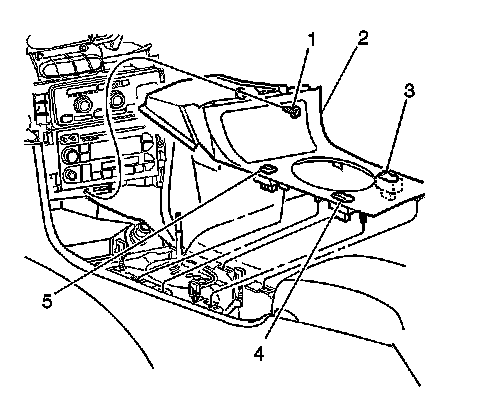

Removal Procedure





1. Remove the console trim plate. Refer to Trim Plate Replacement - Console (Service and Repair) in Instrument Panel, Gages and Console.
2. Disconnect the electrical connector.
3. Remove the switch fastener from the underside of the console trim plate.
4. Remove the heated seat switch from the console trim plate.



Installation Procedure





1. Install the heated seat switch into the console trim plate.
2. Install the fastener.
3. Install the electrical connectors.
4. Install the console trim plate. Refer to Trim Plate Replacement - Console (Service and Repair) in Instrument Panel, Gages and Console.
