Power Trunk / Liftgate Lock Switch: Service and Repair

REAR COMPARTMENT LID VALET LOCK OUT SWITCH REPLACEMENT

REMOVAL PROCEDURE

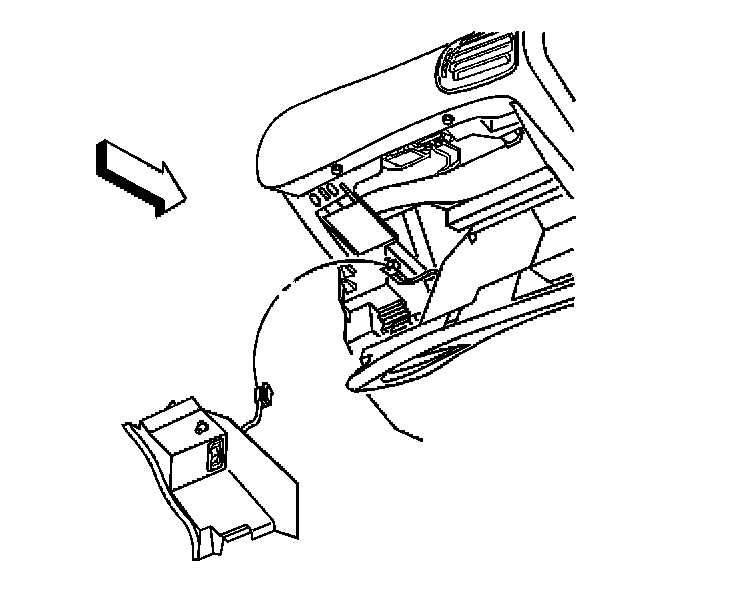

1. Remove the right IP accessory trim plate.

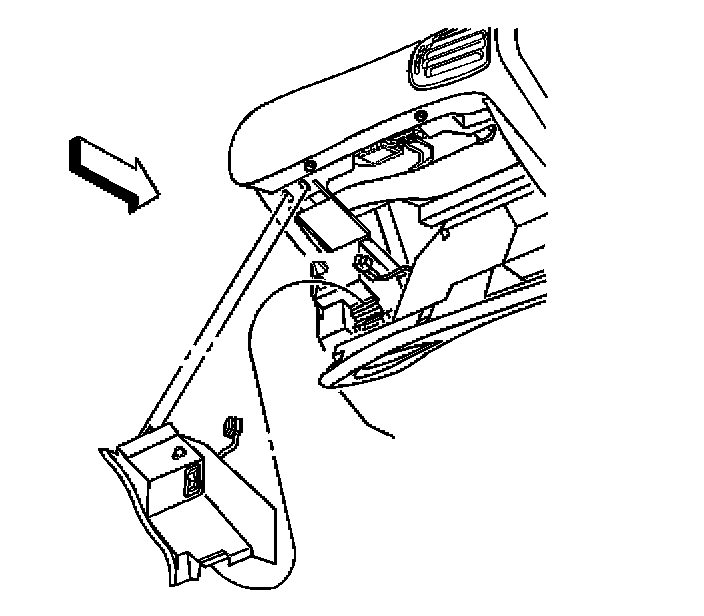

2. Remove the valet switch by prying down at the top to release the clips.




3. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the valet switch.

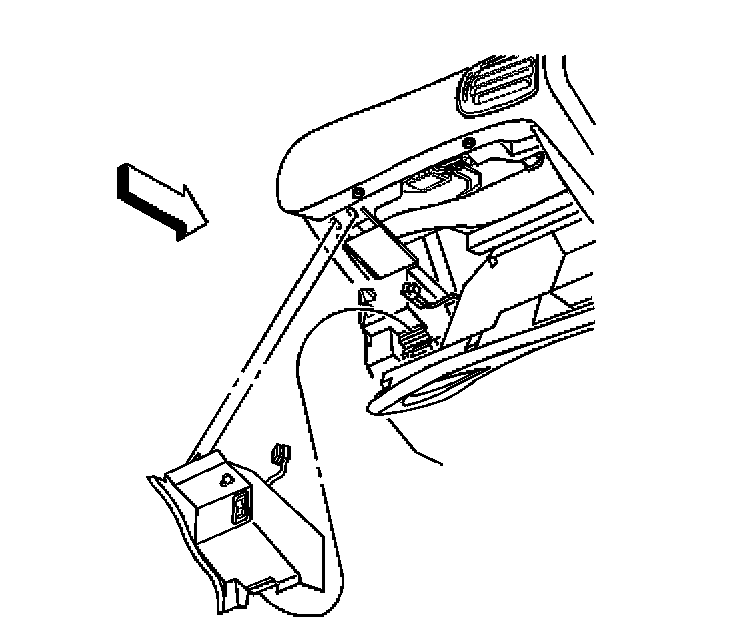

2. Install the valet switch by pressing into the IP.

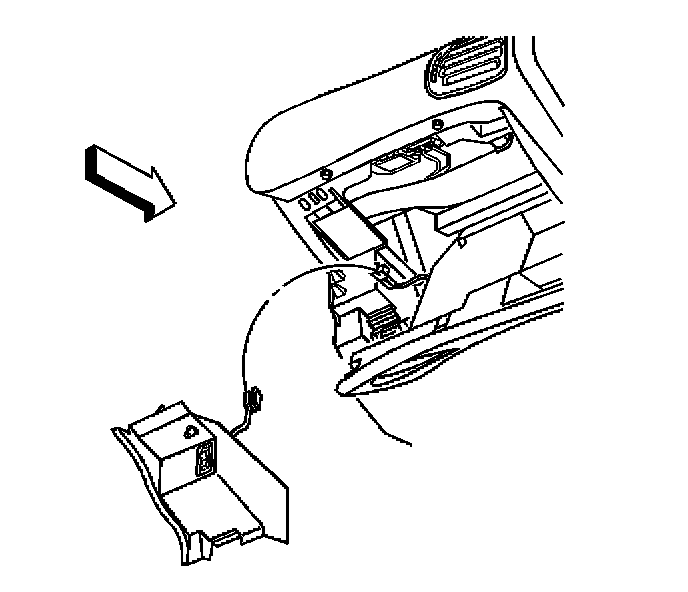

3. Install the right IP accessory trim plate.
4. Close the instrument panel storage compartment.
