Power Seat Motor Position Sensor: Service and Repair
POWER RECLINER SENSOR REPLACEMENT - FRONTREMOVAL PROCEDURE
1. Disable the SIR system.

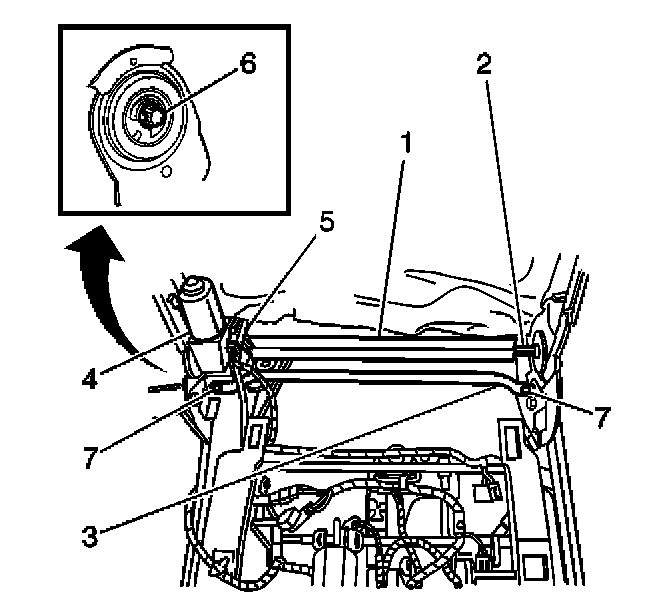

CAUTION: Refer to SIR Caution in Service Precautions.
2. Remove the front seat.
3. Partially remove the seat back cover and pad in order to gain access to the power recliner motor and power recliner sensor.
4. Disconnect the electrical connector on the power recliner sensor (5).
NOTE: Refer to Electrical Wiring Routing Notice in Service Precautions.
5. Remove the push-on nut (6) on the end of the recliner rod (2).
6. Slide the recliner rod (2) out of the seat back recliner and the power recliner motor (4) far enough to clear the sensor (5).
7. Remove the power recliner position sensor (5) from the motor (4).
INSTALLATION PROCEDURE

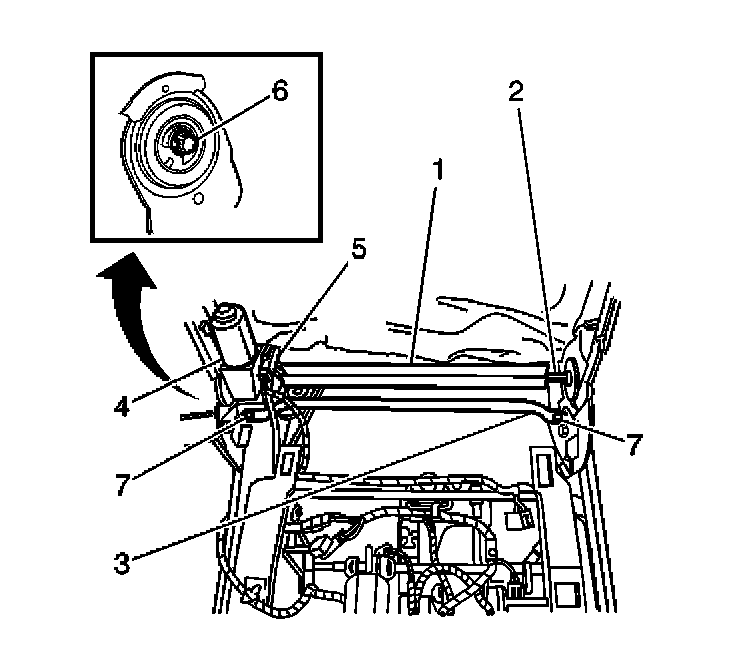

1. Install the power recliner position sensor (5) to the motor (4).
2. Slide the recliner rod through the power recliner position sensor (5) the seat back recliner motor (4), and the recliner assembly.
3. Install a new push on nut (6) to the end of the recliner rod (2).
4. Connect the electrical connector to the power recliner position sensor (5).
5. Install the seat back cover and pad.
6. Install the front seat.
7. Enable the SIR system.
