Power Seat Motor Position Sensor: Locations

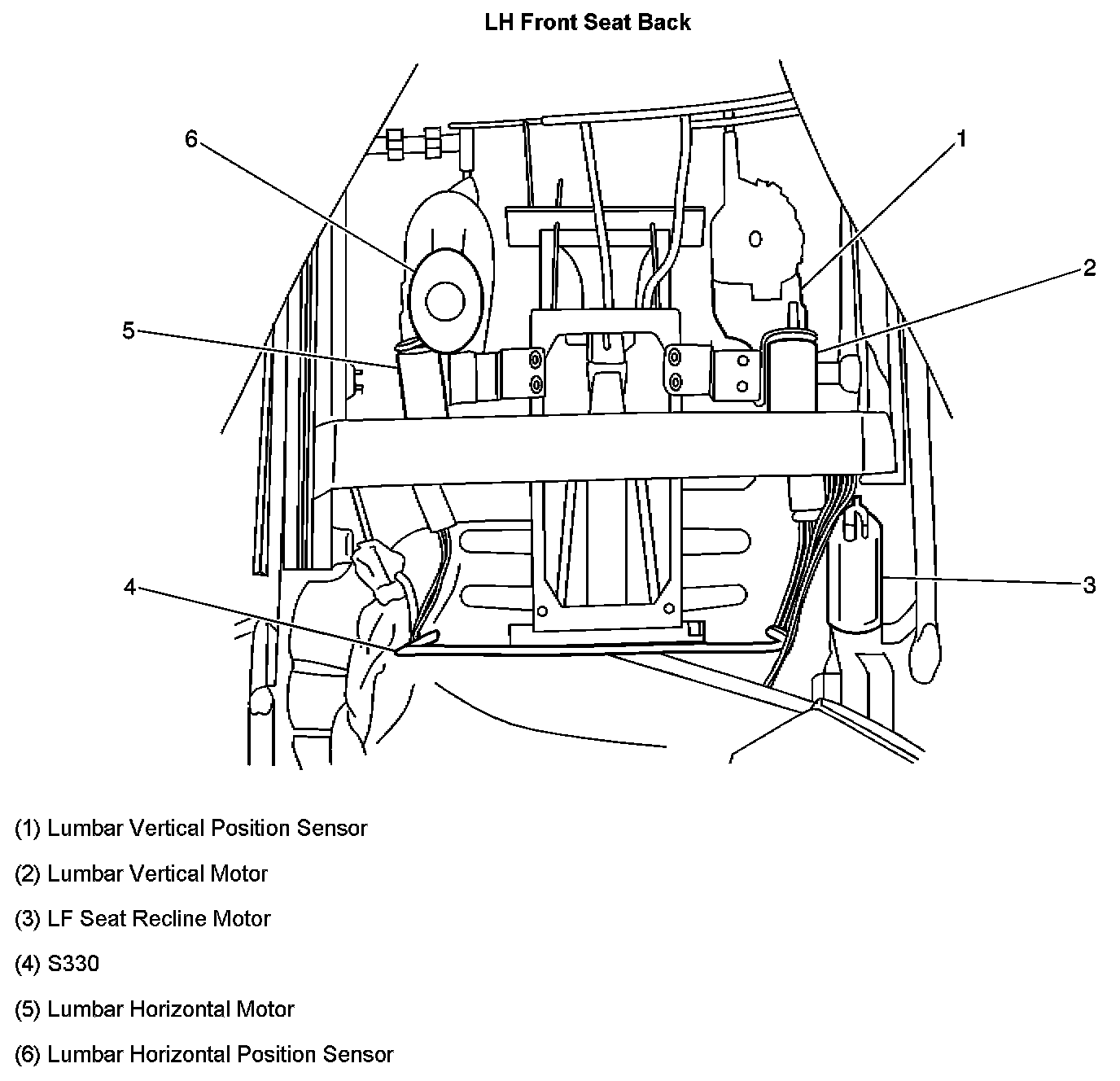

LH Front Seat Back:



Driver Seat Back (Front Passenger Similar):

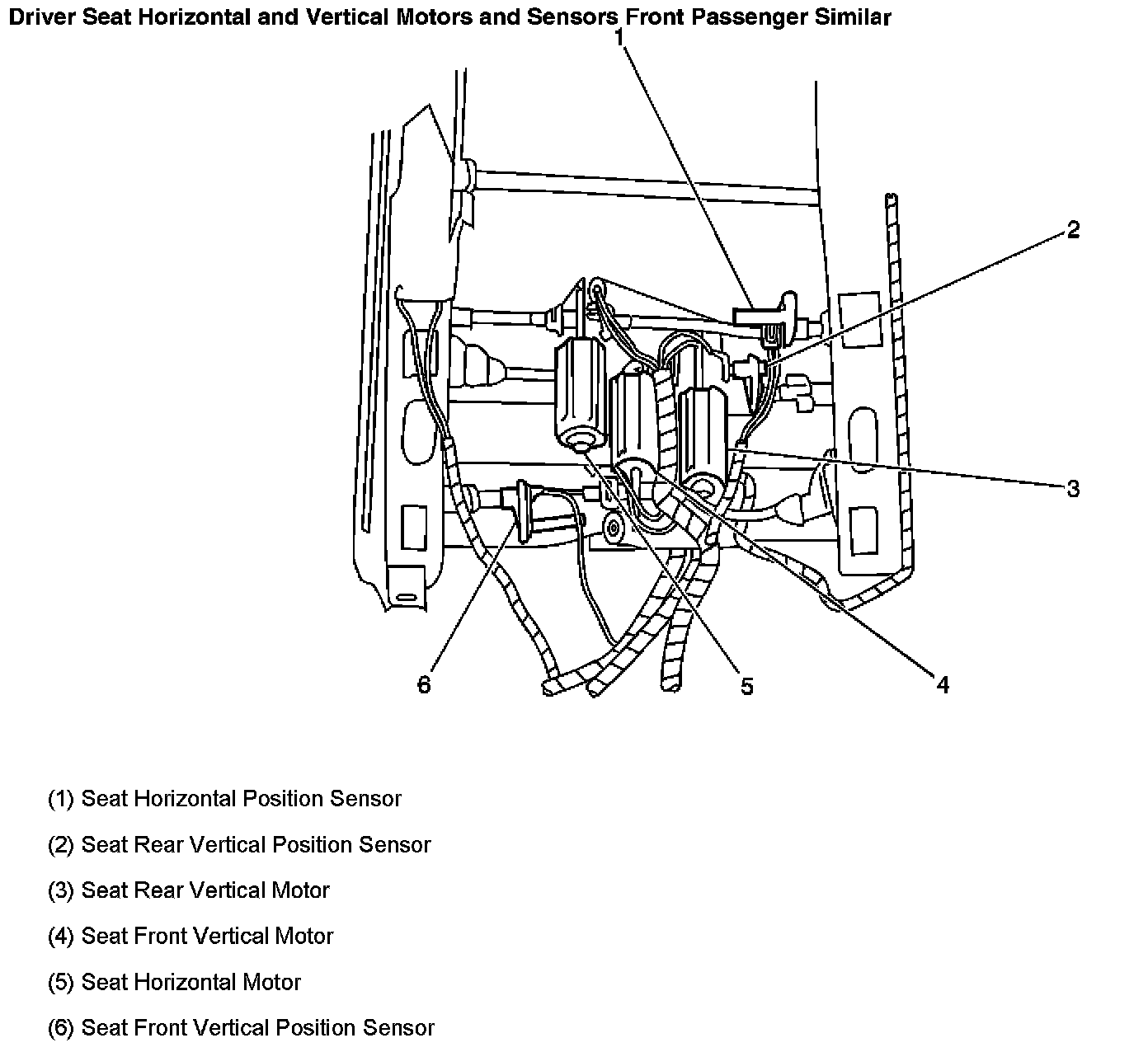

Driver Seat Horizontal And Vertical Motors And Sensors (Front Passenger Similar):
