Fuel Door Switch: Service and Repair

FUEL FILLER DOOR RELEASE SWITCH REPLACEMENT

REMOVAL PROCEDURE

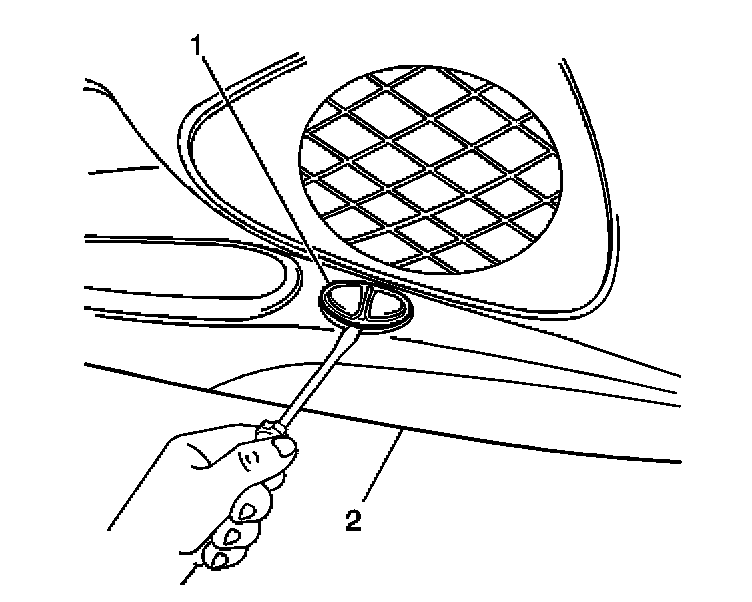

1. Using a small flat bladed tool, gently pry the fuel filler door release switch (1) from the door trim panel (2).

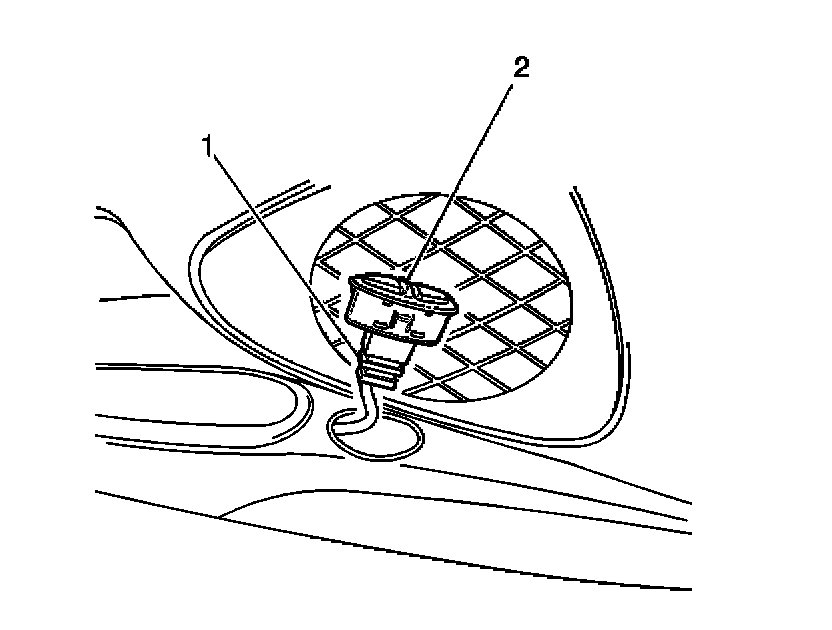

2. Disconnect the electrical connector (1) from the fuel filler door release switch (2).

INSTALLATION PROCEDURE

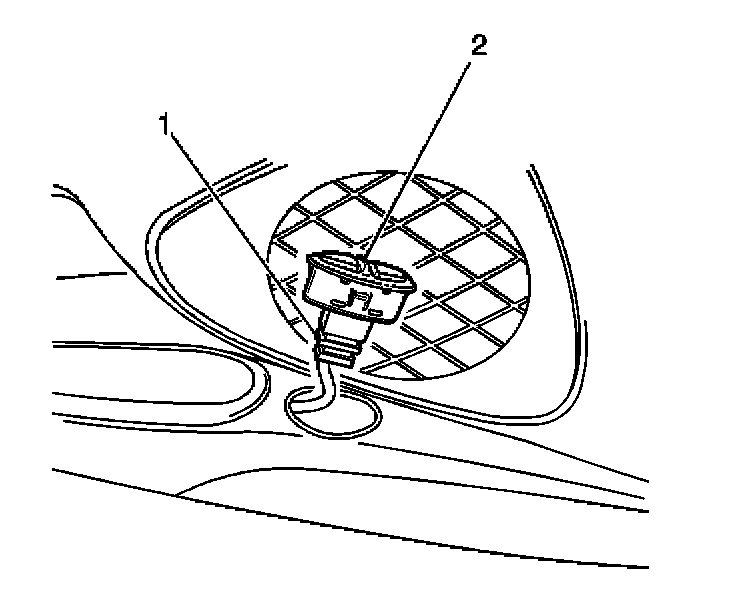

1. Connect the electrical connector (1) to the fuel filler door release switch (2).
2. Position the fuel filler door release switch (2) into the opening in the door trim panel.
3. Push downward on the fuel filler door release switch (2) in order to engage the retainer clips.
