Door Lock Cylinder Switch: Diagrams

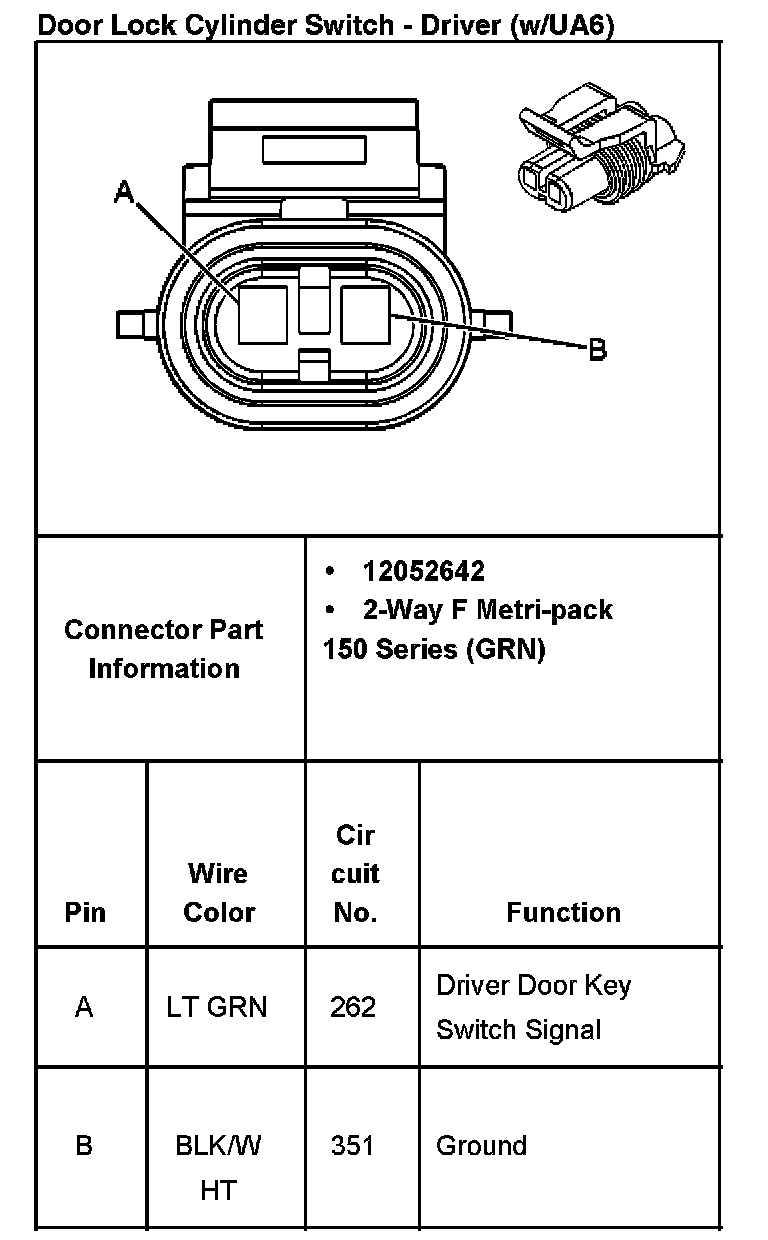

Door Lock Cylinder Switch - Driver With RPO Code UA6:

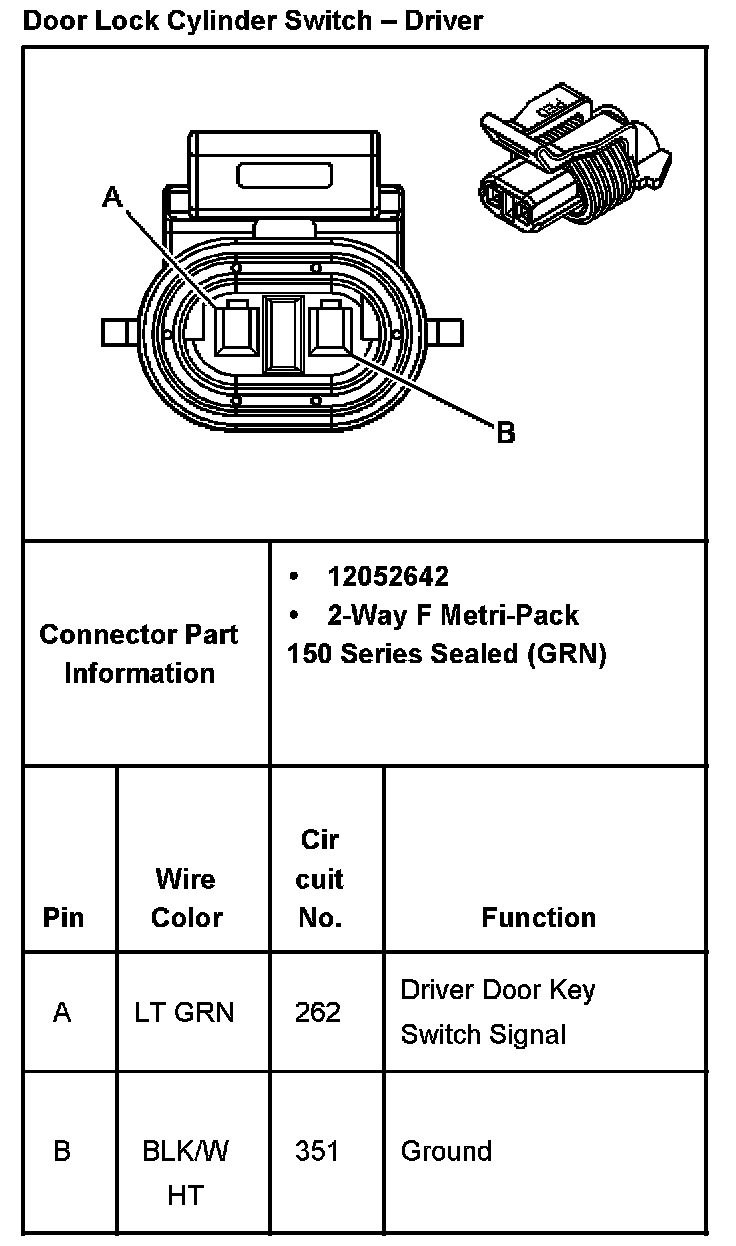

Door Lock Cylinder Switch - Driver:
