Compressor/Pump Relay: Locations

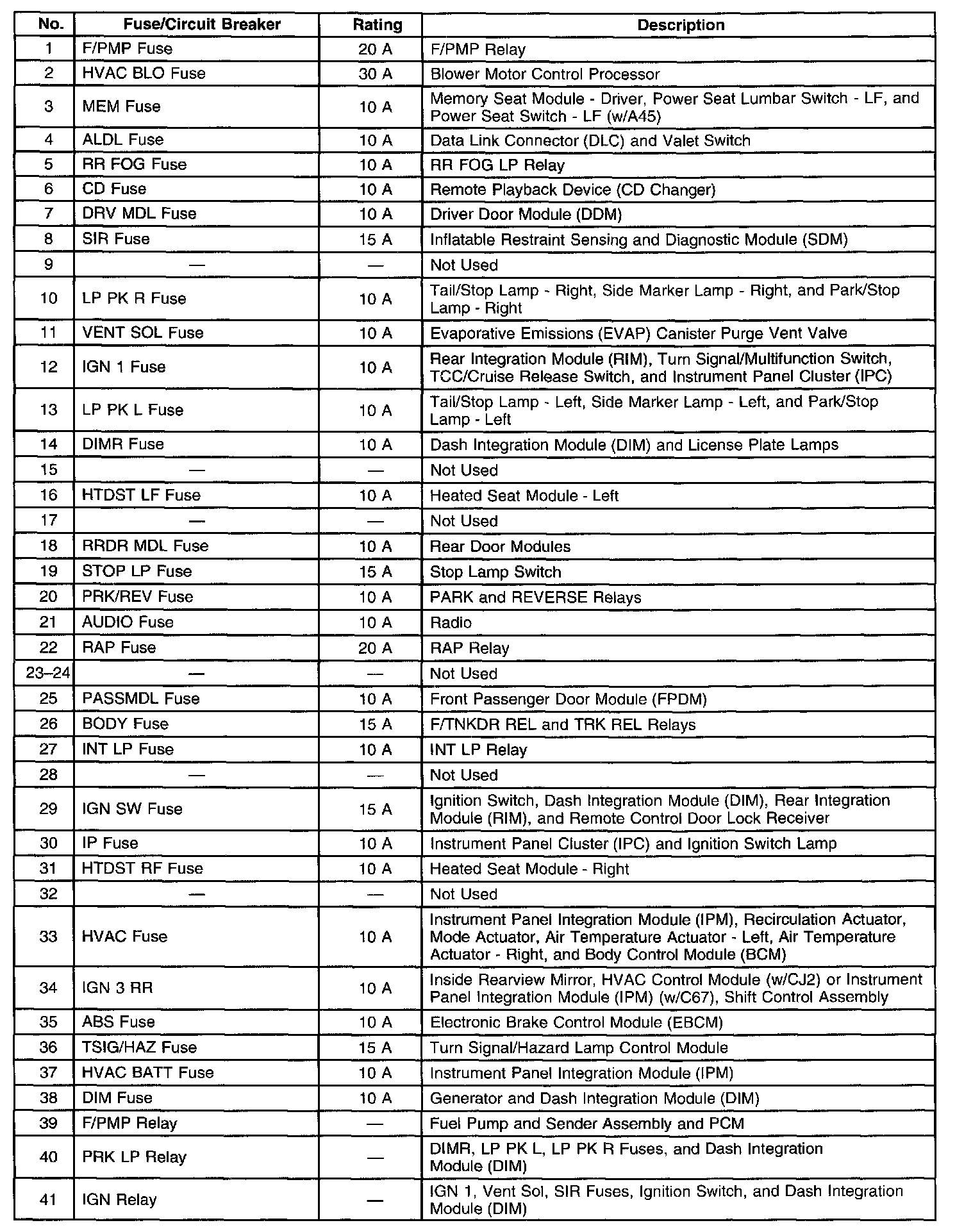

Fuse Block - Rear Part 1:

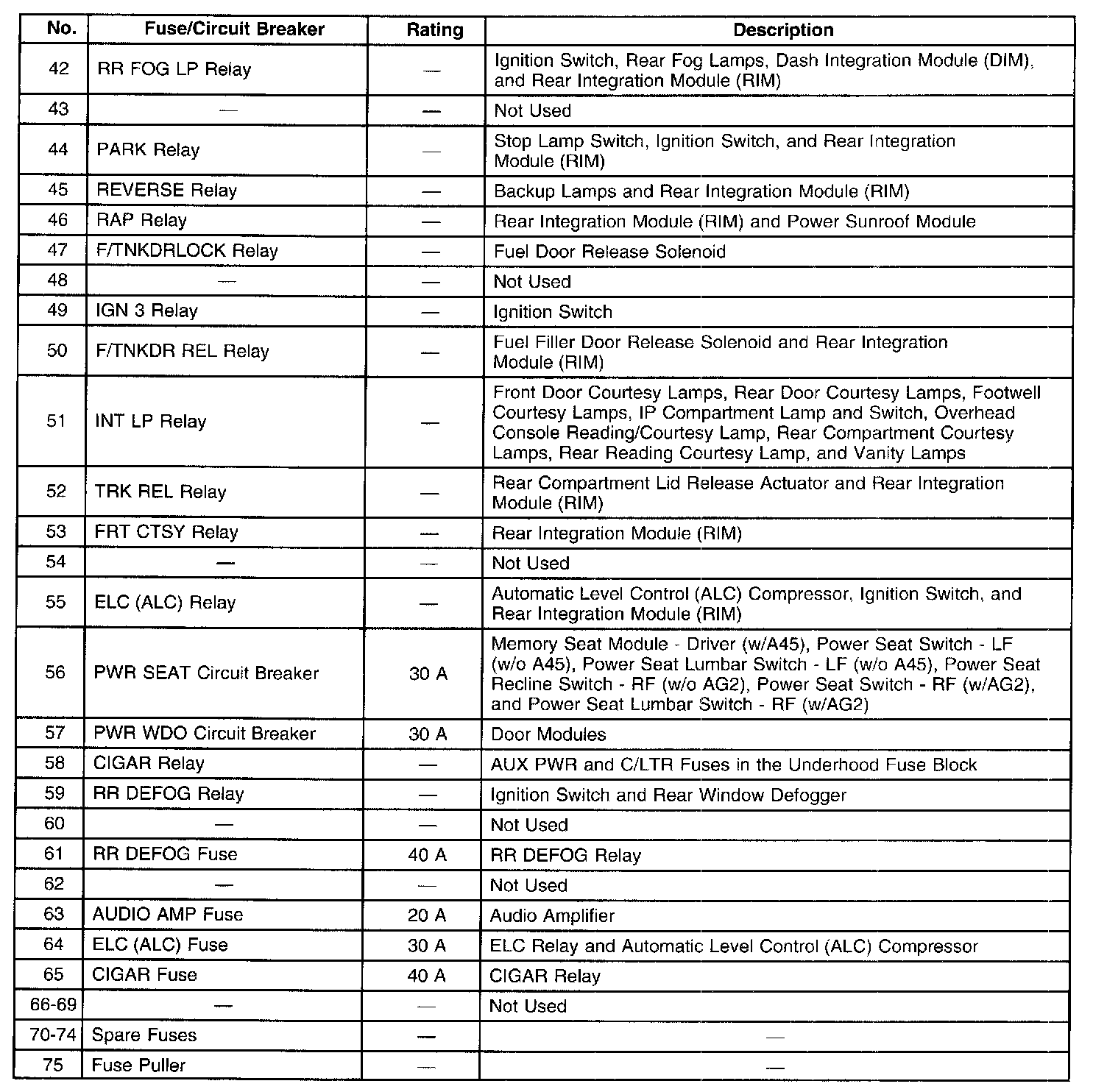

Fuse Block - Rear Part 2:

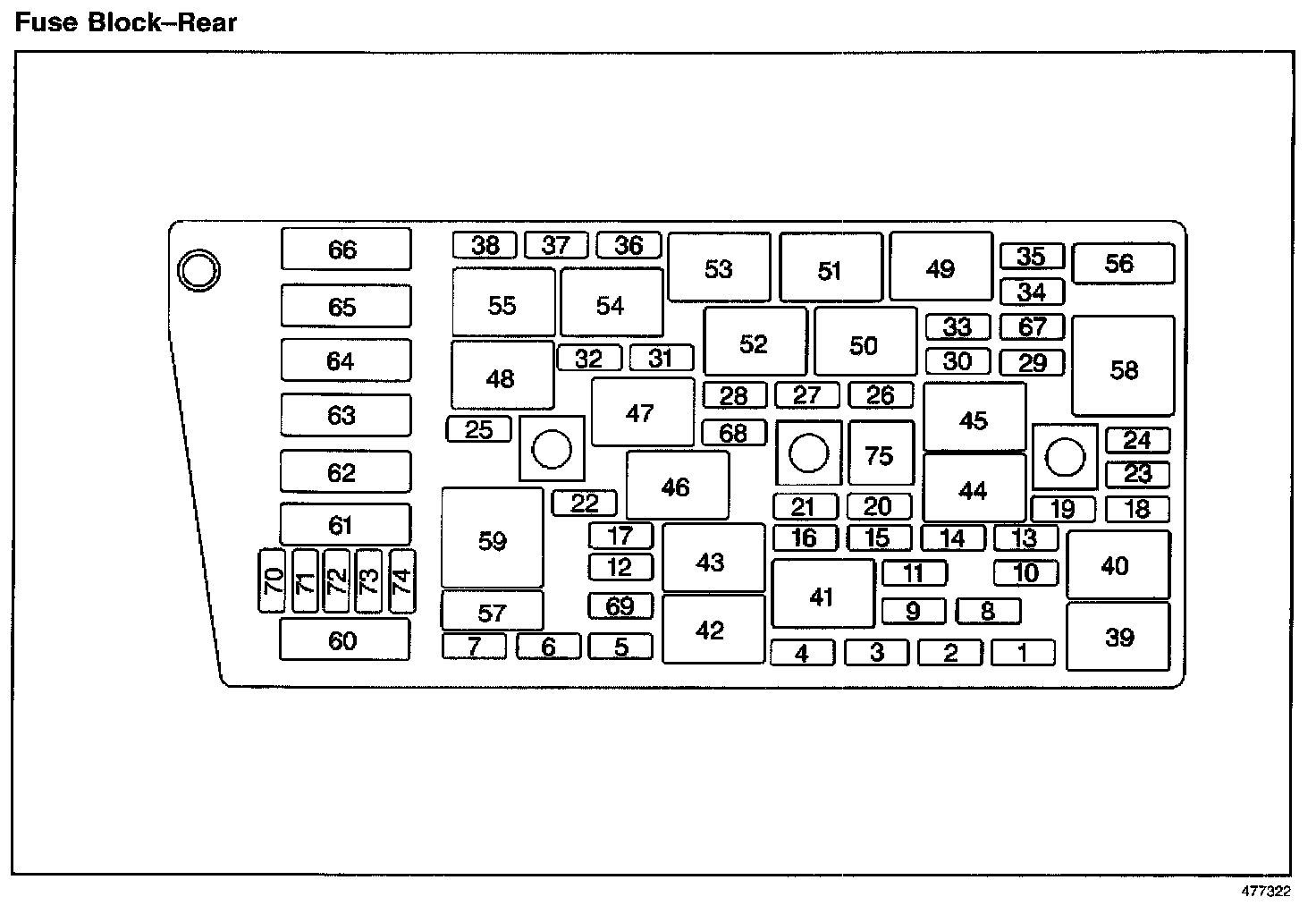

Fuse Block - Rear Part 3:
