Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Accessory Delay Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Retained Accessory Power (RAP) - On After Timeout

Retained Accessory Power (RAP) - On After Timeout

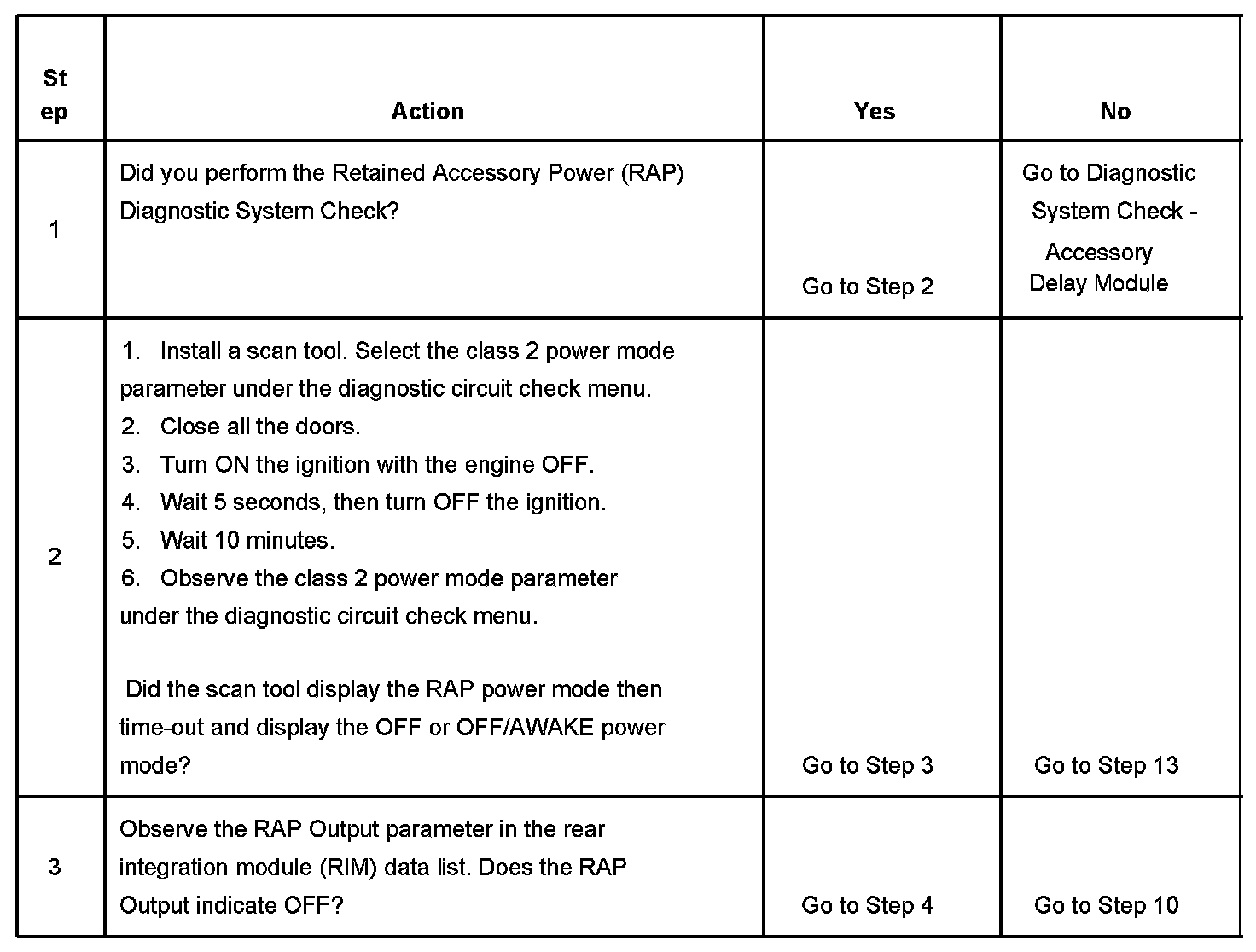

Steps 1-3:

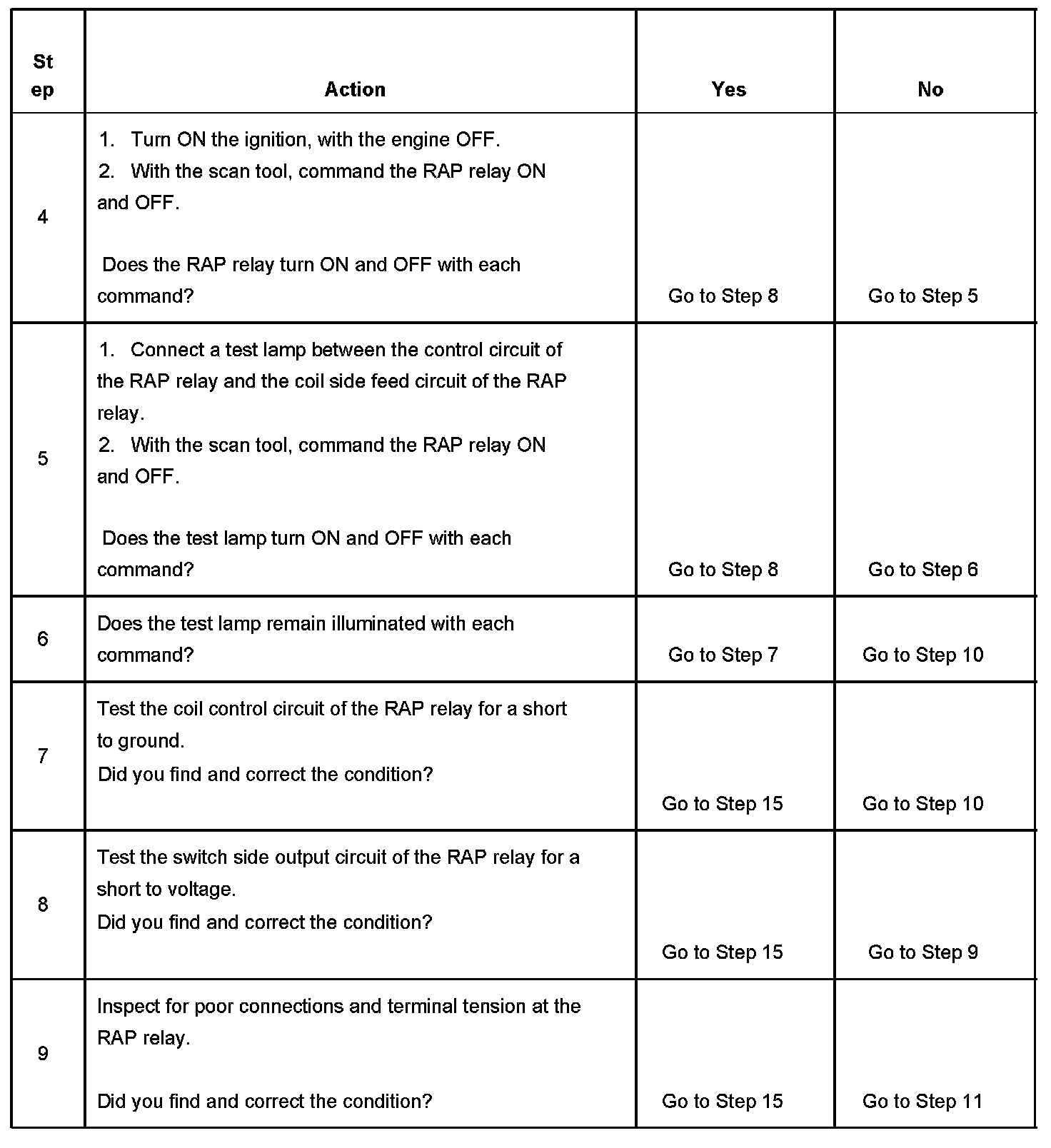

Steps 4-9:

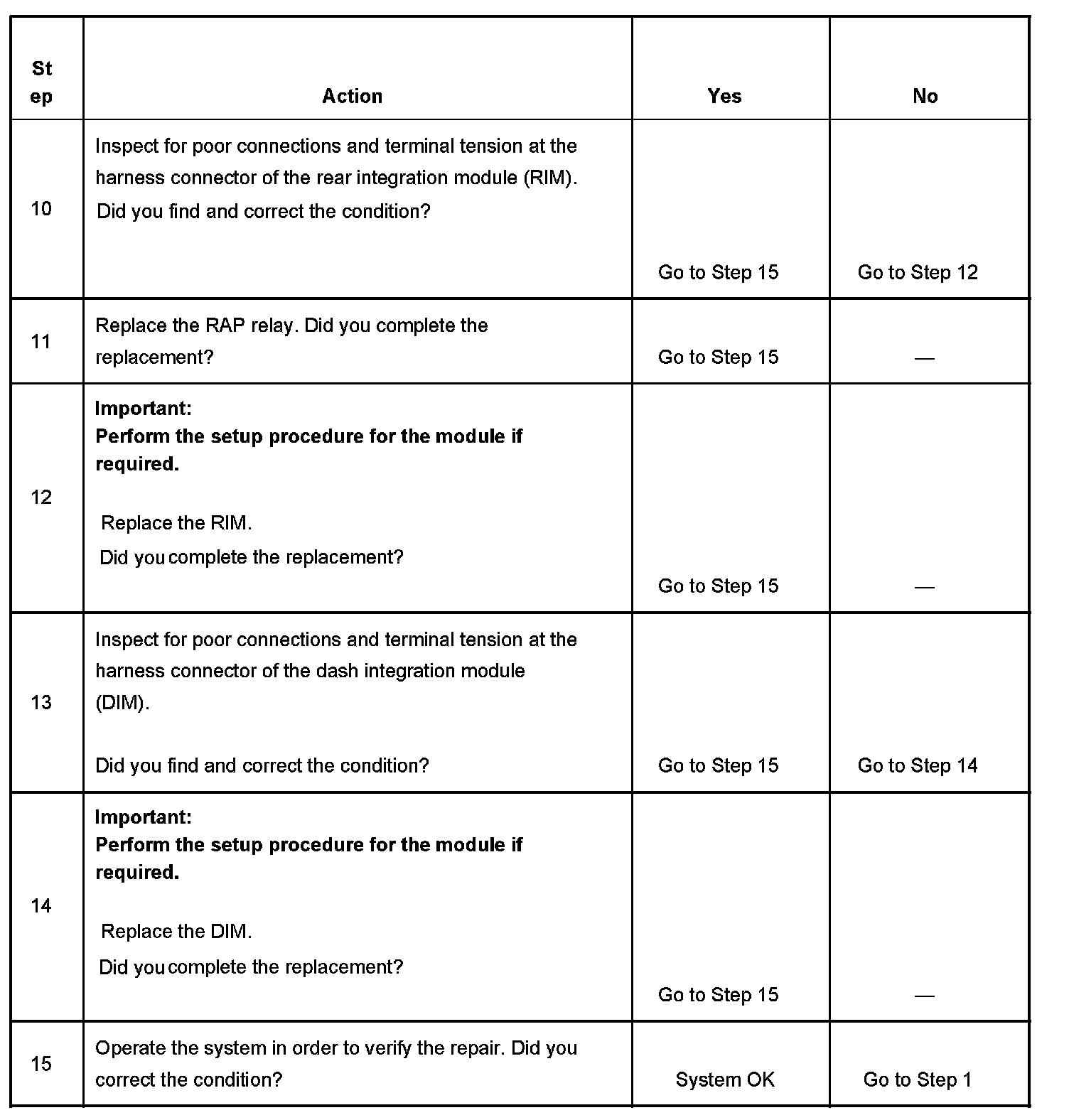

Steps 10-15:
