Fuel Pressure Gage Installation and Removal
TOOLS REQUIREDJ 34730-1A Fuel Pressure Gage
INSTALLATION PROCEDURE
CAUTION: Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline or diesel fuel in an open container, due to the possibility of fire or explosion. Have a dry chemical (Class B) fire extinguisher nearby.
NOTE:
Clean all of the following areas before performing any disconnections in order to avoid possible contamination in the system:
- The fuel pipe connections
- The hose connections
- The areas surrounding the connections
1. Remove the fuel injector sight shield.

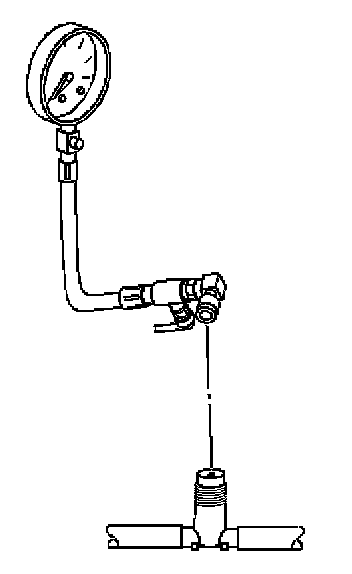

2. Install the J 34730-1A to the fuel pressure service connection, located on the fuel rail.
CAUTION: Wrap a shop towel around the fuel pressure connection in order to reduce the risk of fire and personal injury. The towel will absorb any fuel leakage that occurs during the connection of the fuel pressure gage. Place the towel in an approved container when the connection of the fuel pressure gage is complete.
3. Turn ON the ignition, with the engine OFF.
4. Place the bleed hose of the fuel pressure gage into an approved gasoline container.
CAUTION: Do not drain the fuel into an open container. Never store the fuel in an open container due to the possibility of a fire or an explosion.
5. Open the bleed valve on the fuel pressure gage in order to bleed the air from the fuel pressure gage.
6. Command the fuel pump ON with a scan tool.
7. Close the bleed valve on the fuel pressure gage.
8. Command the fuel pump ON with a scan tool.
9. Inspect for fuel leaks.
