A/T Inline Harness 20-Way Connector, Transmission Side
A/T Inline Harness 20-Way Connector, Transmission Side

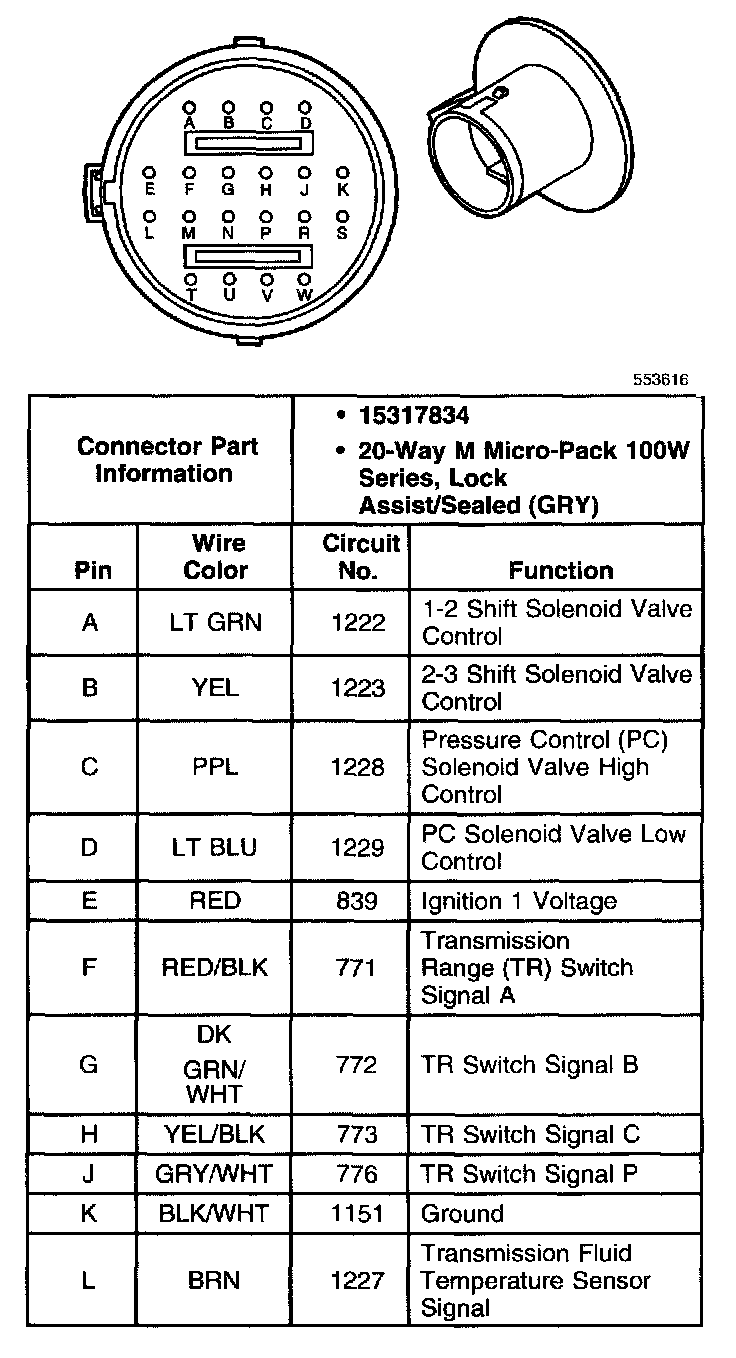

Part 1 Of 2:

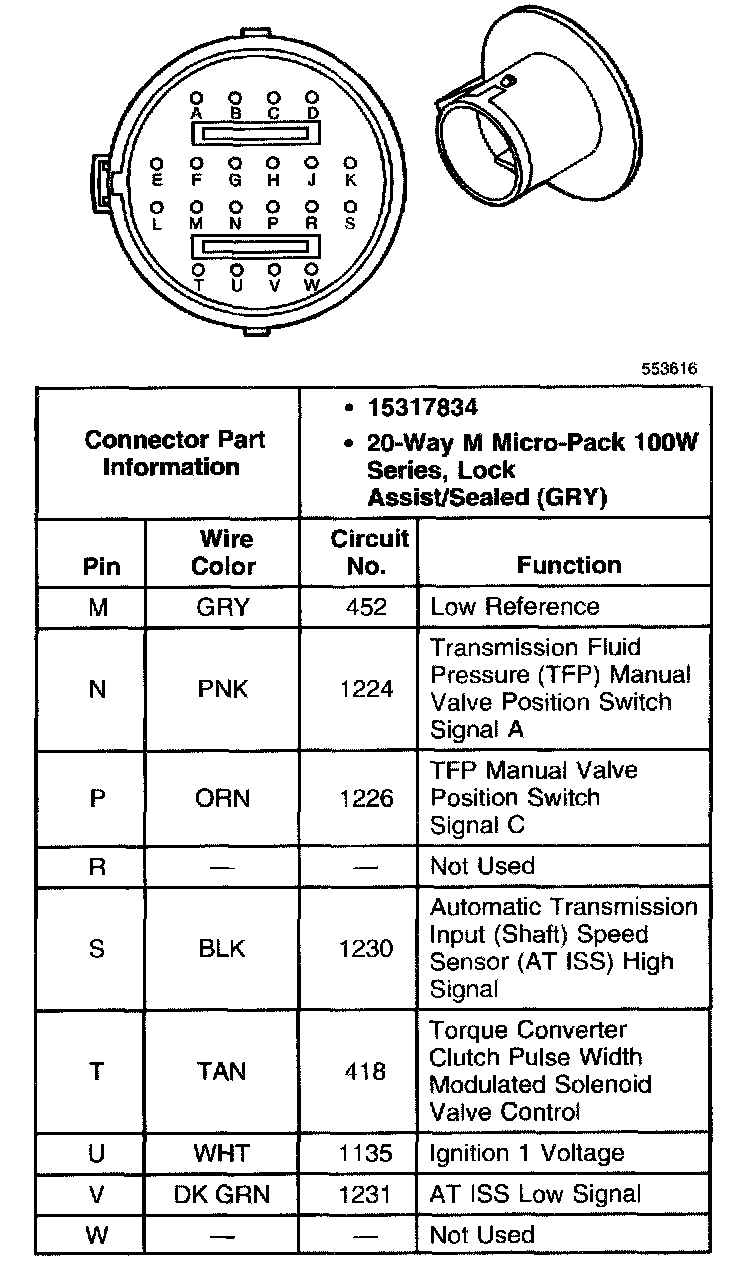

Part 2 Of 2:
Engine Side

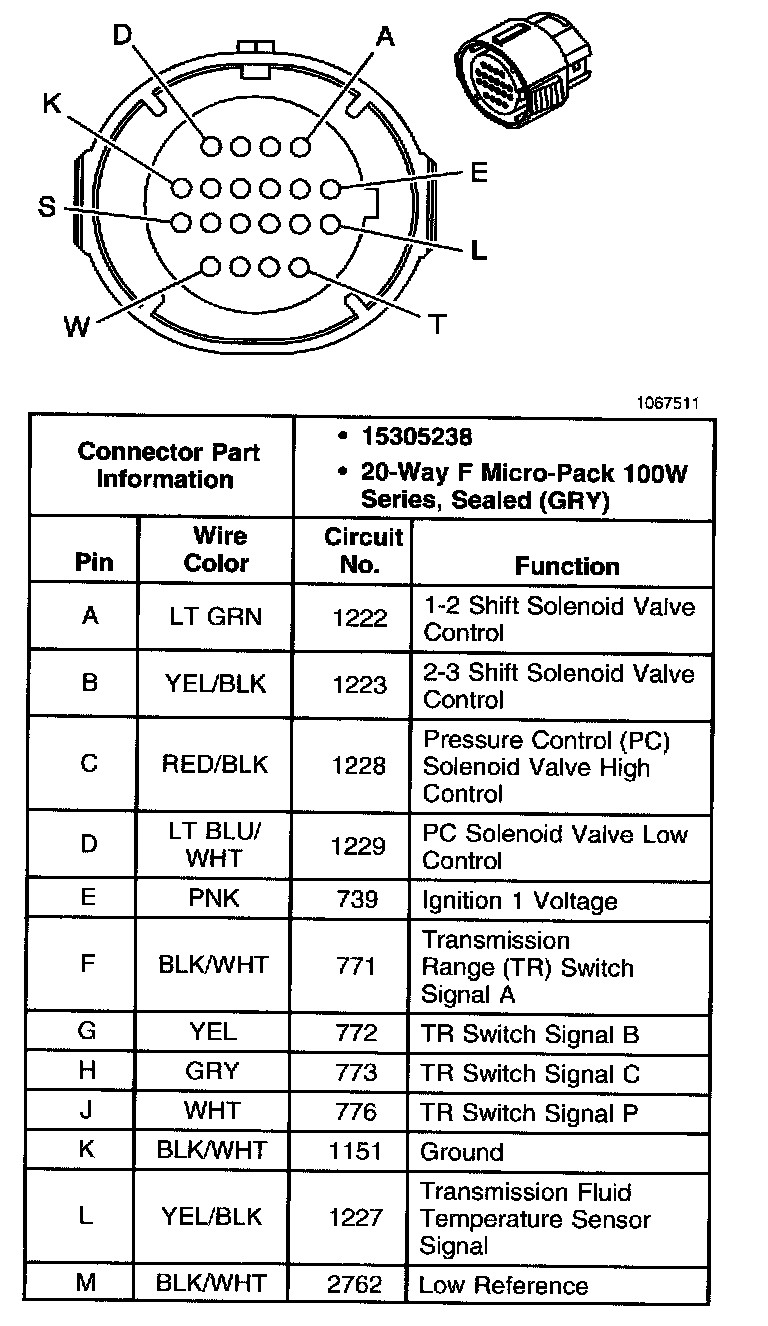

Part 1 Of 2:

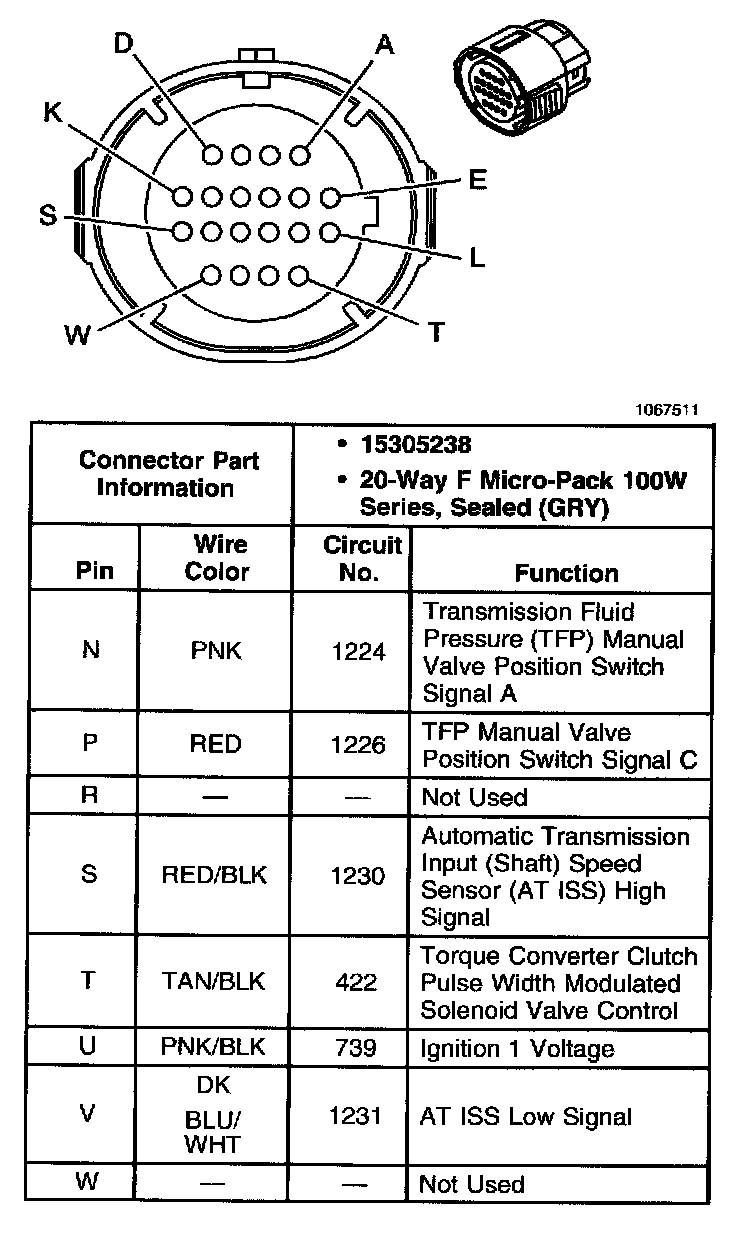

Part 2 Of 2:
Transmission Side
