Ignition Coil(S) Replacement - Bank 1

REMOVAL PROCEDURE




1. Remove the fuel injector sight shield.
2. Disconnect the ignition control module electrical connector.
3. Disconnect the AIR vacuum control solenoid valve electrical connector.
4. Remove the AIR shut-off valve.




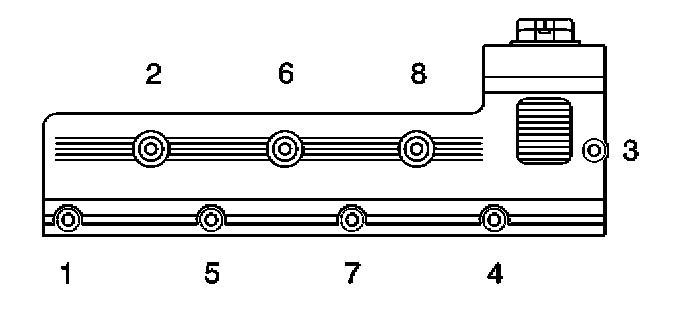

5. Using the removal sequence (1, 2, 3, 4, 5, 6, 7, 8) , remove the ignition cassette retaining bolts.
6. Carefully remove the ignition cassette.

INSTALLATION PROCEDURE




1. Connect the spark plug boots to the spark plugs.

IMPORTANT: Ensure the ignition cassette grounding spring and the insulator are in place when installing the ignition cassette.

2. Carefully install the ignition cassette.




3. Install the ignition cassette retaining bolts.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten

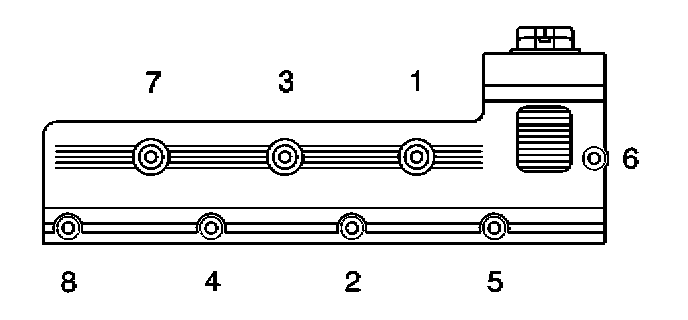

Using the installation torque sequence (1, 2, 3, 4, 5, 6, 7, 8), tighten the ignition cassette retaining bolts to 9 N.m (80 lb in).

4. Install the AIR shut-off valve.
5. Reconnect the AIR vacuum control solenoid valve electrical connector.
6. Reconnect the ignition cassette electrical connector.
7. Install the fuel injector sight shield.
