Accelerator Controls Cable Replacement

REMOVAL PROCEDURE




1. Remove the left closeout/insulator panel replacement.

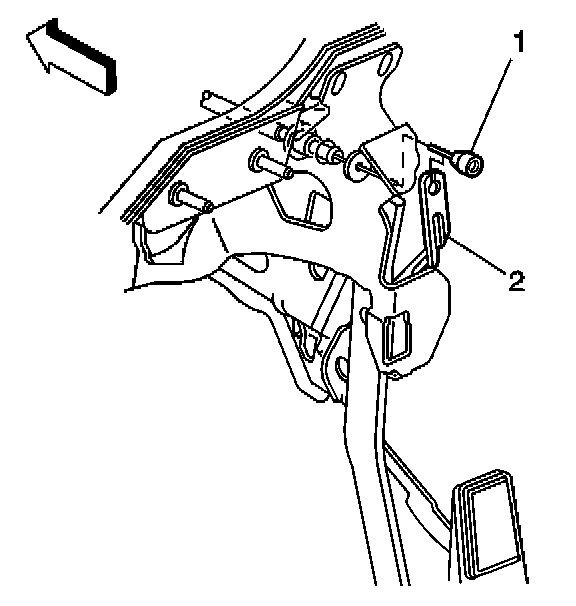

2. Remove the accelerator controls cable (1) from accelerator pedal (2).
3. Squeeze the accelerator controls cable cover tangs and push cable through the bulkhead.




4. Remove the accelerator controls cable (3) from accelerator controls cable bracket (1).

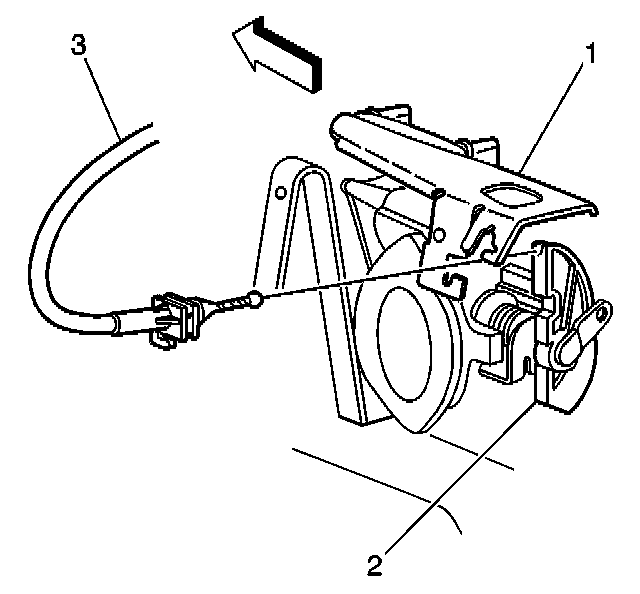

5. Remove the accelerator controls cable (3) from the throttle body lever (2).

INSTALLATION PROCEDURE

NOTE: In order to prevent possible interference and damage, flexible components (hoses, wires, conduits, etc.) must not be routed within 50 mm (2 in) of moving parts, unless the routing is positively controlled.




1. Install the accelerator controls cable (3) to the throttle body lever (2).

IMPORTANT: Accelerator controls cable must be routed through groove in throttle body lever and seated securely.

2. Install the accelerator controls cable (3) at the accelerator controls cable bracket (1).




3. Route the accelerator controls cable under brake master cylinder and through dash.
4. Install the retainer to the accelerator controls pedal.
5. Install the accelerator controls cable (1) to the accelerator controls pedal (3).

IMPORTANT: Check for complete throttle opening and closing positions by operating the accelerator controls pedal. Also check for poor carpet fit under the accelerator controls pedal. The throttle should operate freely without binding between full closed and wide open throttle (WOT).

6. Install the left closeout/insulator panel.
