Accelerator Pedal: Service and Repair

ACCELERATOR CONTROLS PEDAL REPLACEMENT

REMOVAL PROCEDURE
1. Remove the left instrument panel sound insulator.

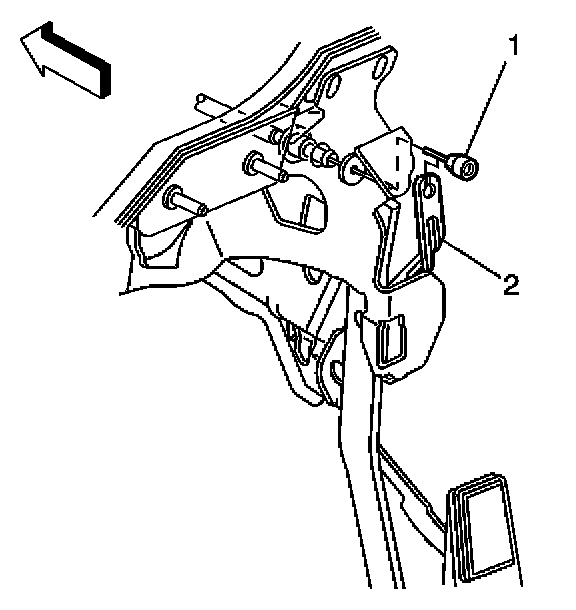

2. Remove the accelerator controls cable (1) from accelerator controls pedal (2).

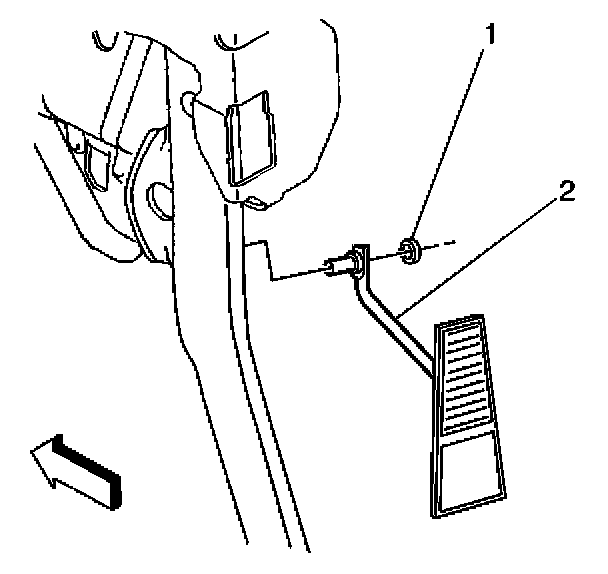

3. Remove the accelerator controls pedal retainer (1) from the accelerator controls pedal.
4. Remove the accelerator controls pedal (2).

INSTALLATION PROCEDURE




1. Install the accelerator controls pedal (2).

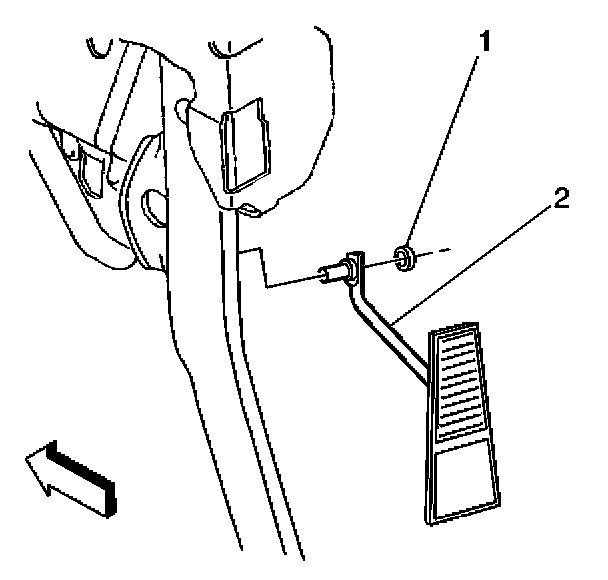

2. Install the accelerator controls pedal retainer (3).




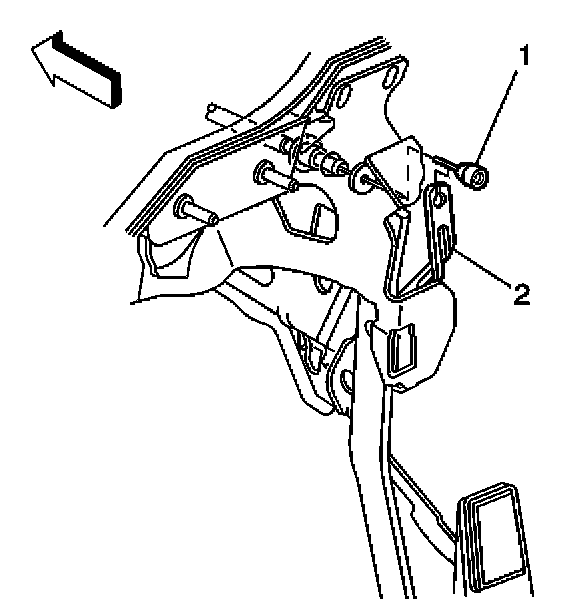

3. Install the accelerator controls cable (1) to accelerator controls pedal (2).

IMPORTANT: Check for complete throttle opening and closing positions by operating the accelerator pedal. Also check for poor carpet fit under the accelerator pedal.

The throttle should operate freely without binding between full closed and wide open throttle (WOT).

4. Install the left instrument panel sound insulator.
