Canister Vent Valve: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER VENT VALVE REPLACEMENT

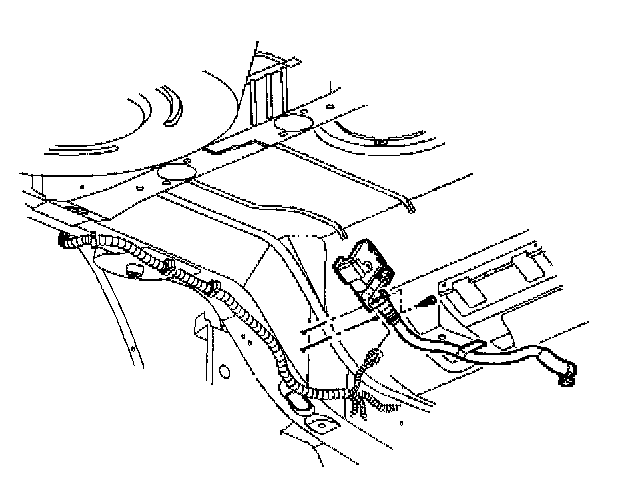

REMOVAL PROCEDURE
1. Raise the vehicle. Refer to Vehicle Lifting.




2. Disconnect the EVAP canister vent valve harness connector.
3. Disconnect the hose from the EVAP canister vent valve.
4. Remove the EVAP canister vent valve bolt.
5. Remove the EVAP canister vent valve from the vehicle.

INSTALLATION PROCEDURE




1. Position the EVAP canister vent valve on the vehicle.
2. Install the EVAP canister vent valve retaining bolt.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolt to 6 N.m (53 lb in).

3. Connect the hose to the EVAP canister vent valve.
4. Connect the EVAP vent valve harness connector.
5. Lower the vehicle.
