Turn Signal Bulb: Service and Repair

PARK/TURN SIGNAL LAMP BULB REPLACEMENT

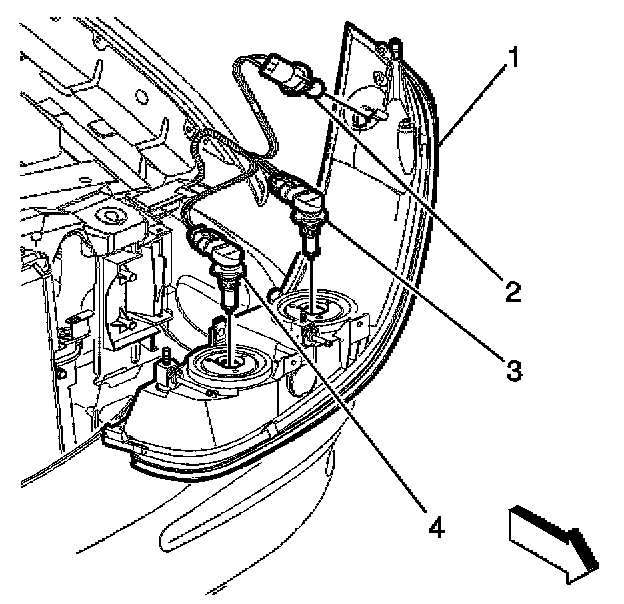

REMOVAL PROCEDURE




1. Remove the headlamp assembly (1).
2. Disconnect the electrical connector from the bulb socket (2).
3. Remove the bulb and socket (2) from the headlamp assembly (1).
4. Remove the bulb from the socket.

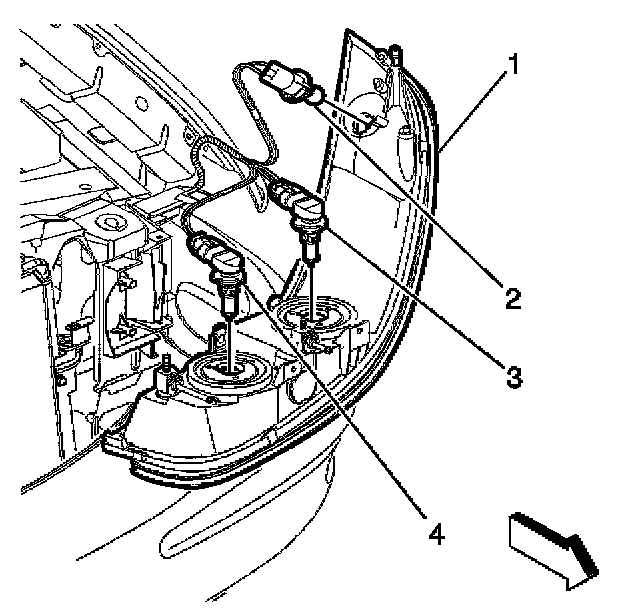

INSTALLATION PROCEDURE




1. Install the bulb into the socket (2).
2. Install the socket with the bulb (2) to the headlamp assembly (1).
3. Connect the electrical connector to the bulb socket (2).
4. Install the headlamp assembly to the vehicle.
