Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Interior Backlighting Does Not Dim

Interior Backlighting Does Not Dim

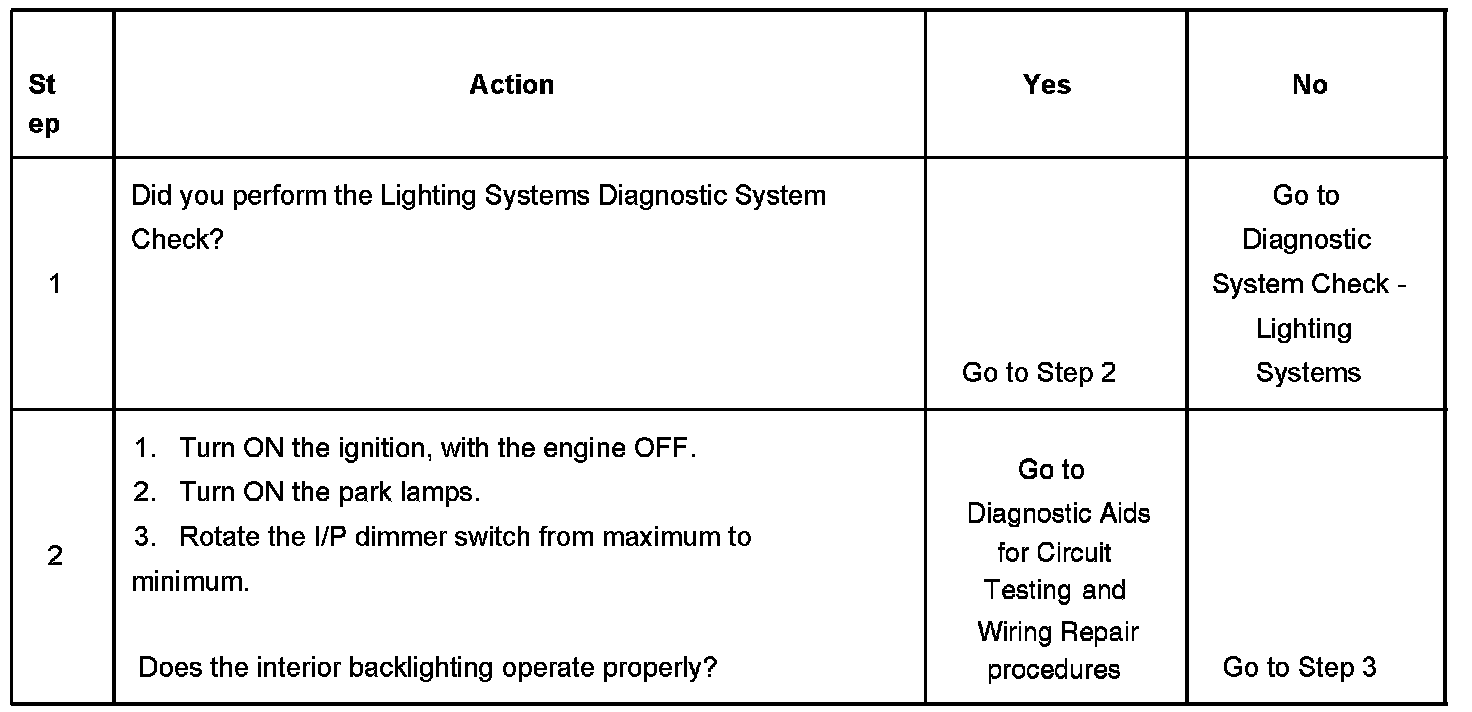

Steps 1-2:

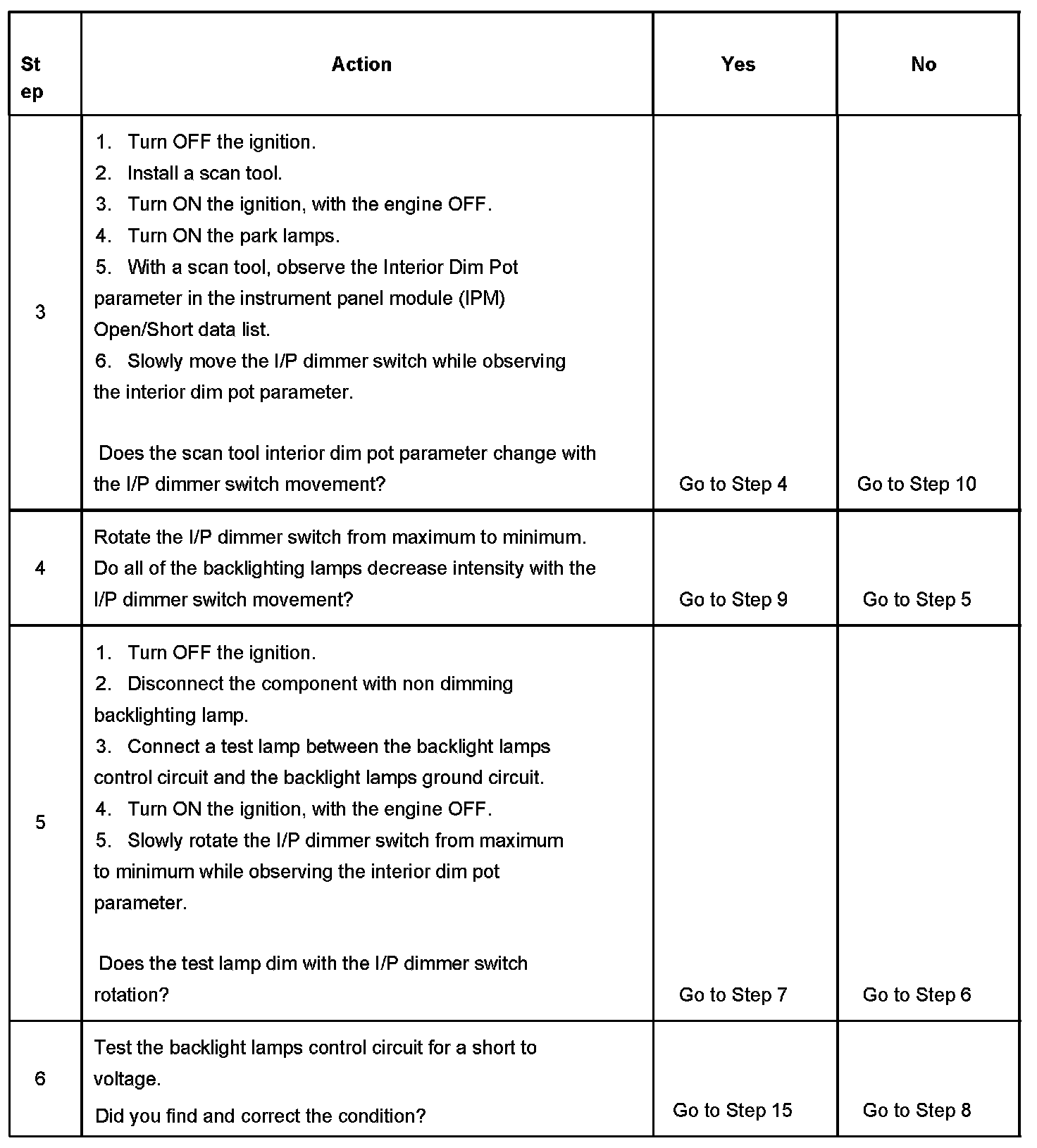

Steps 3-6:

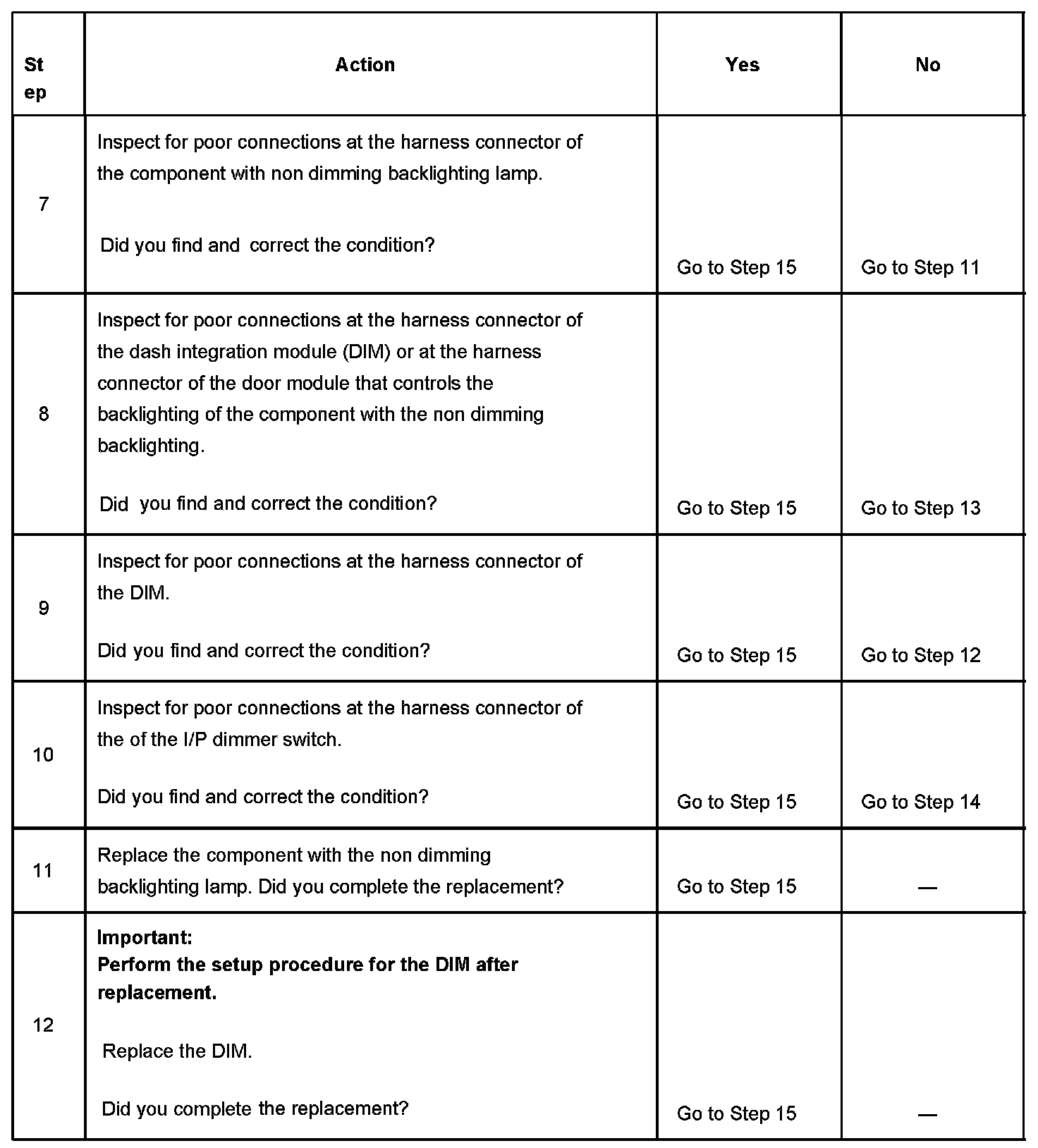

Steps 7-12:

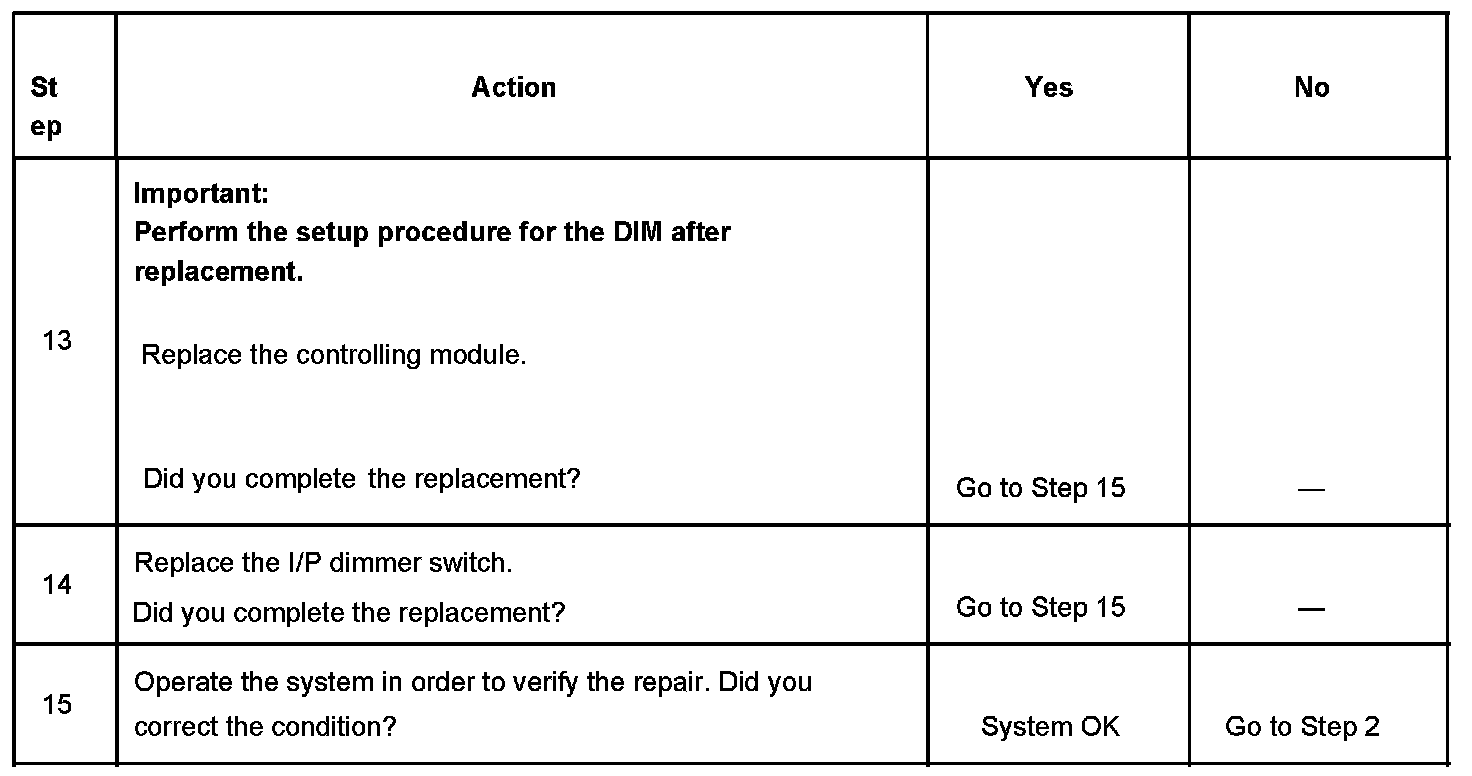

Steps 13-15:
