Backup Lamps Inoperative

BACKUP LAMPS INOPERATIVE

TEST DESCRIPTION

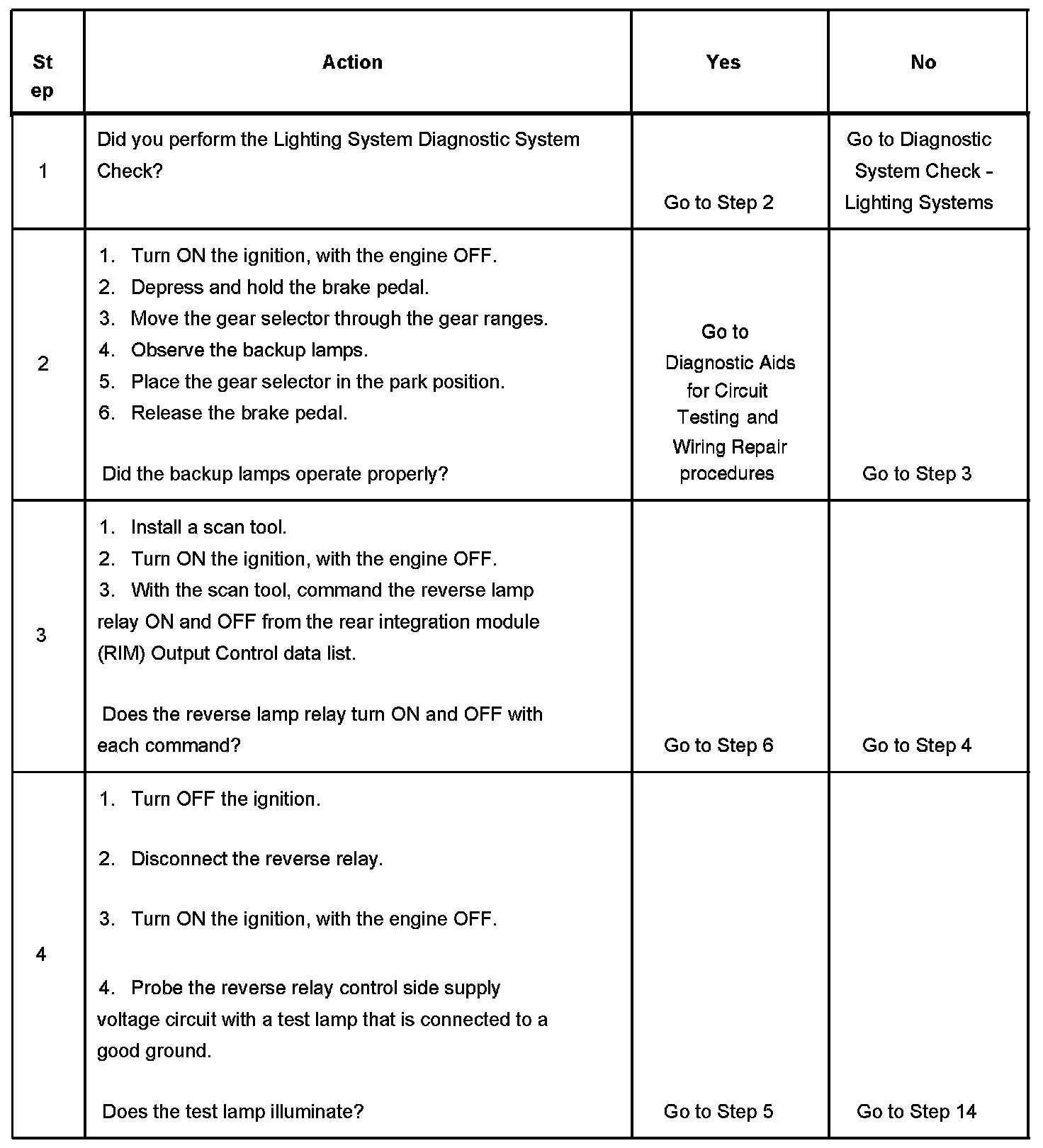

Steps 1-4:

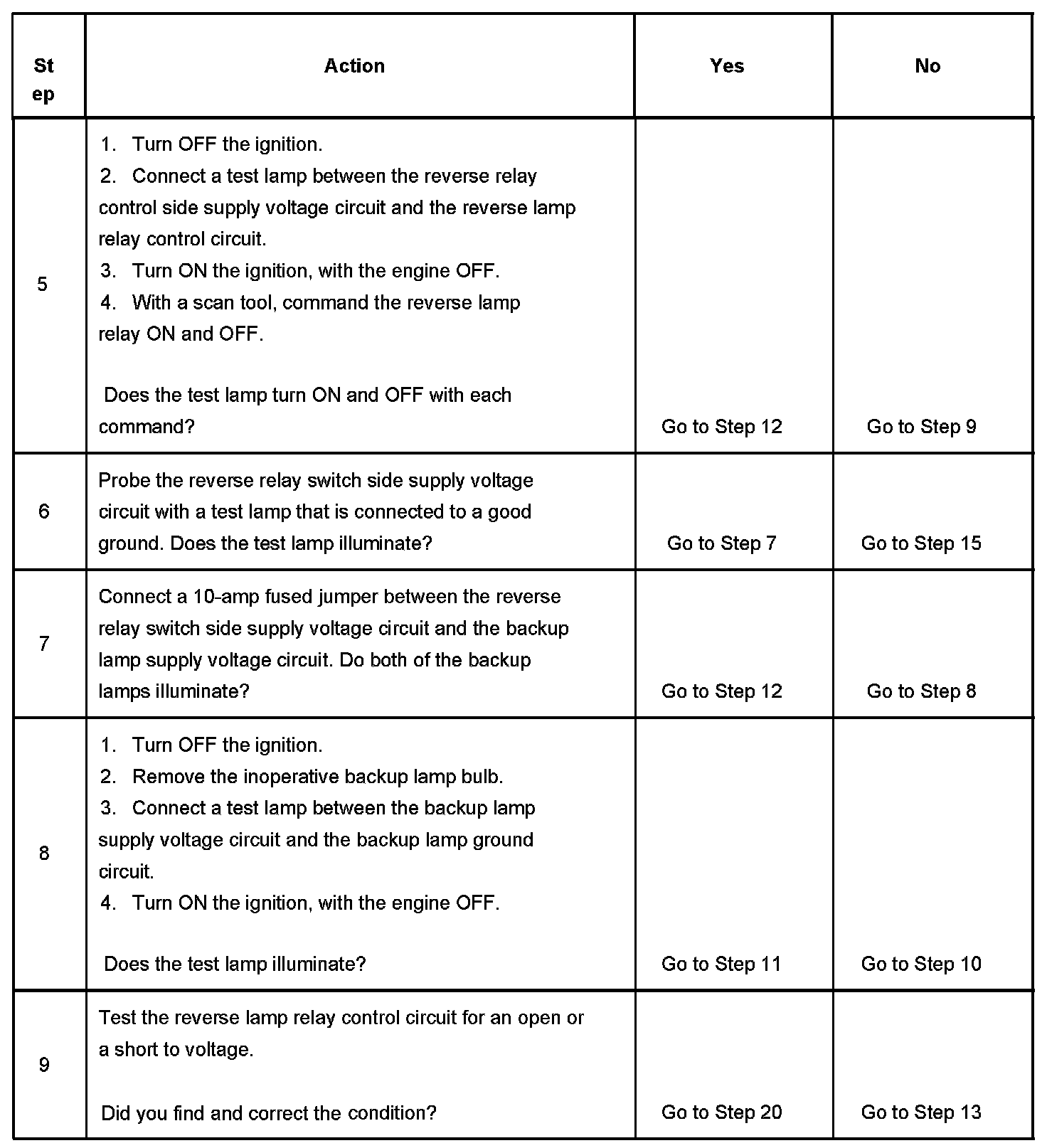

Steps 5-9:

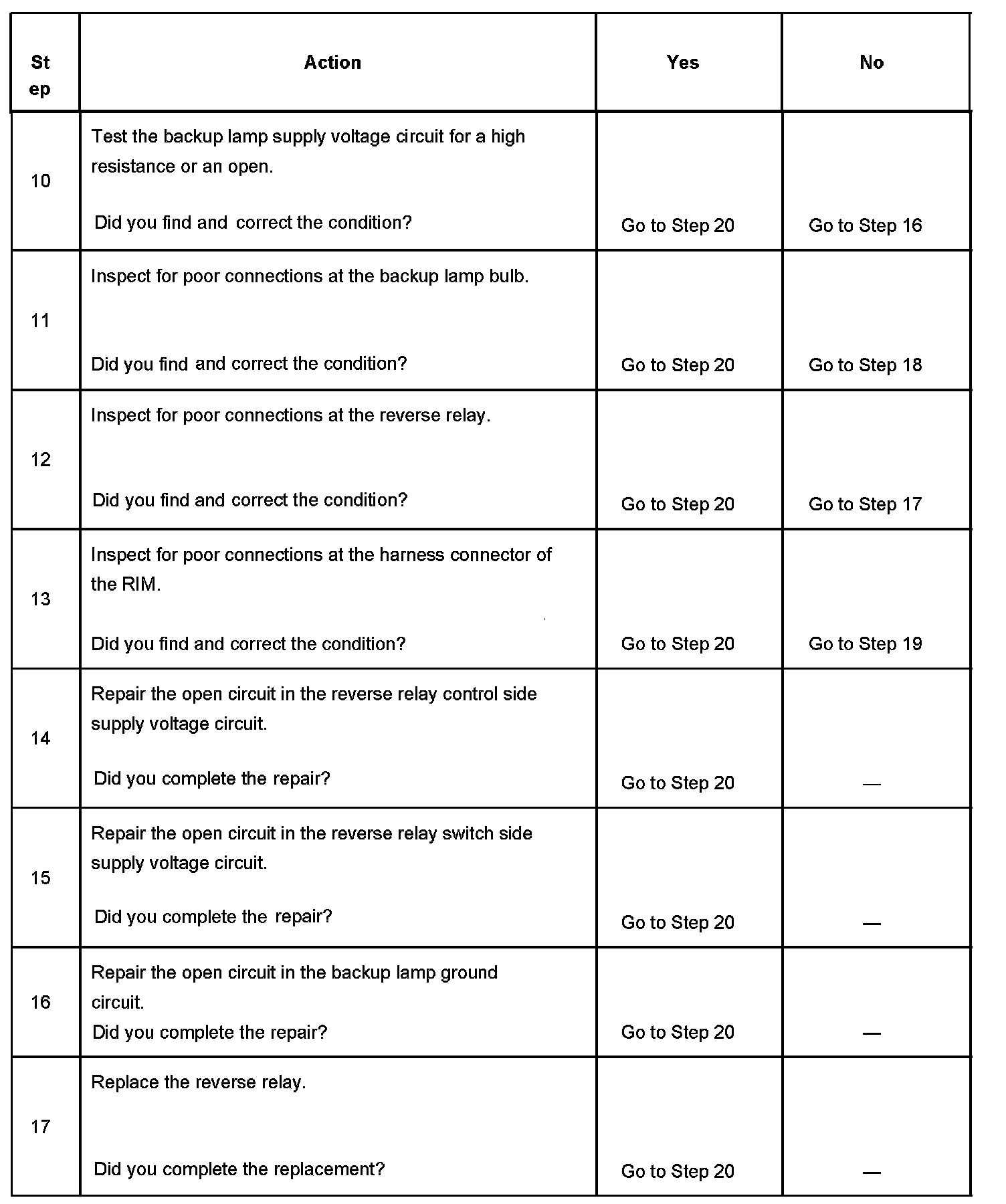

Steps 10-17:

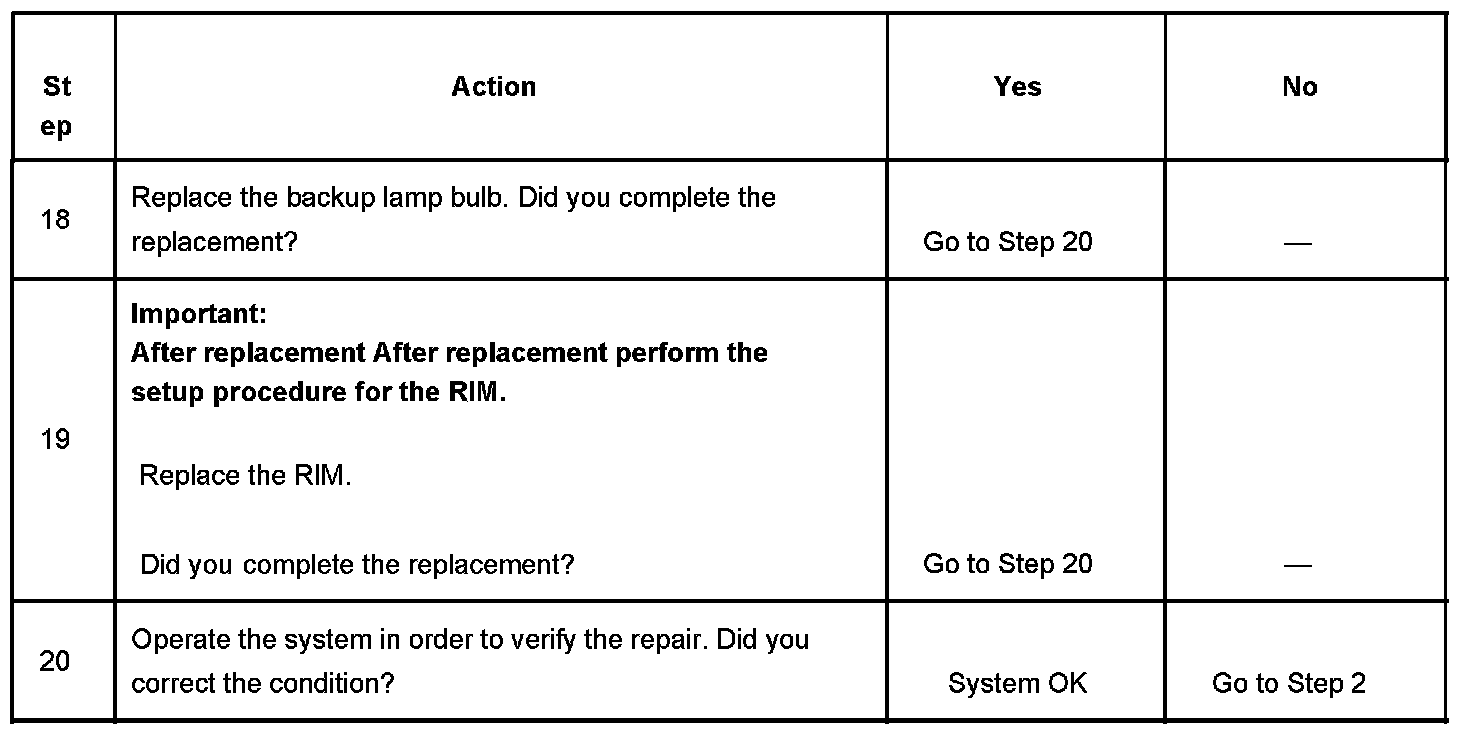

Steps 18-20:

The numbers below refer to the step numbers on the diagnostic table.
3. Listen for an audible click when the reverse relay operates. Command both the ON and OFF states. Repeat the commands as necessary.
4. Tests for voltage at the control side of the reverse relay.
5. Verifies that the control module is providing ground to the reverse relay.
