Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Automatic Lamp Control Inoperative

Automatic Lamp Control Inoperative

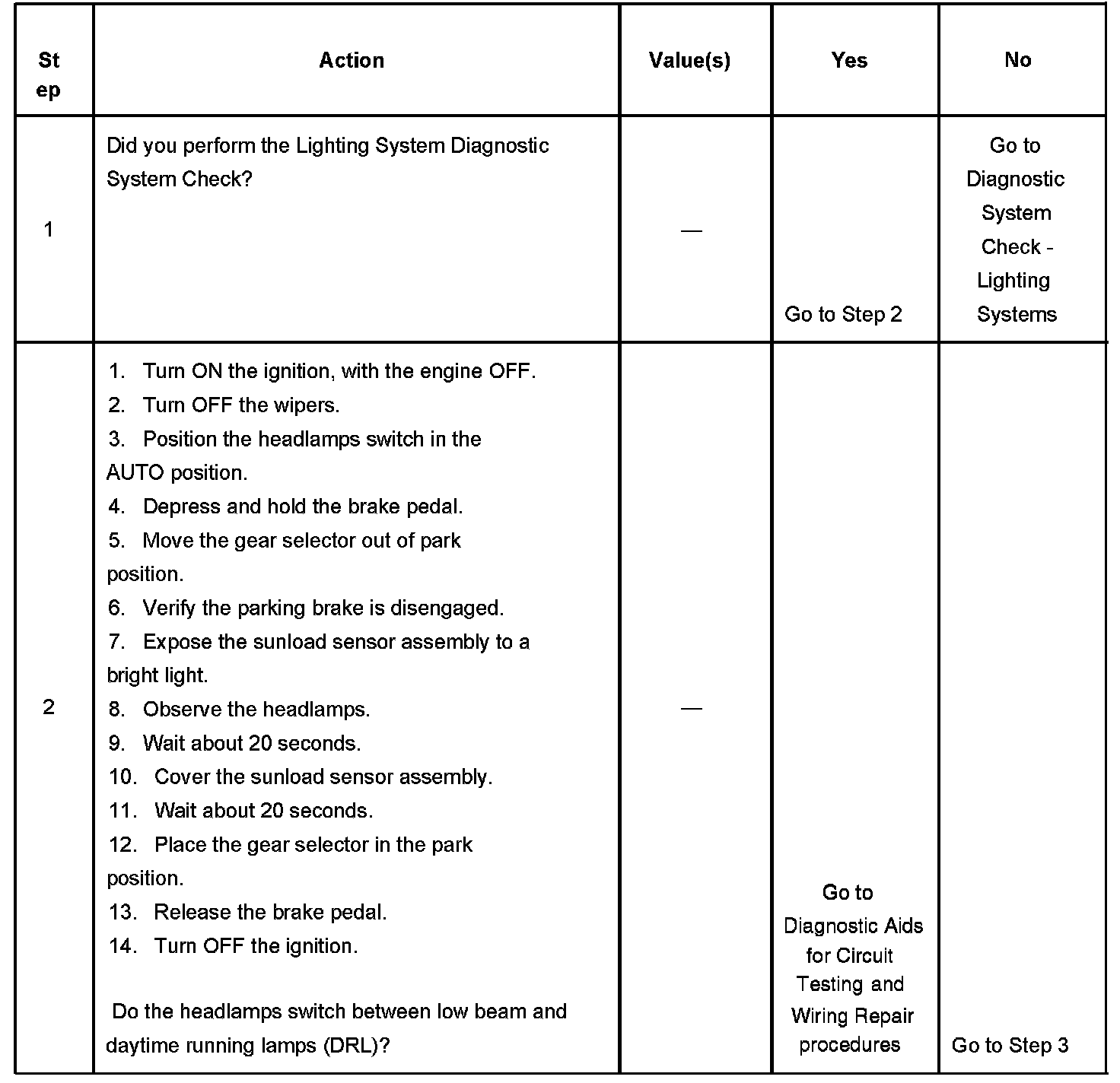

Steps 1-2:



Steps 3-5:

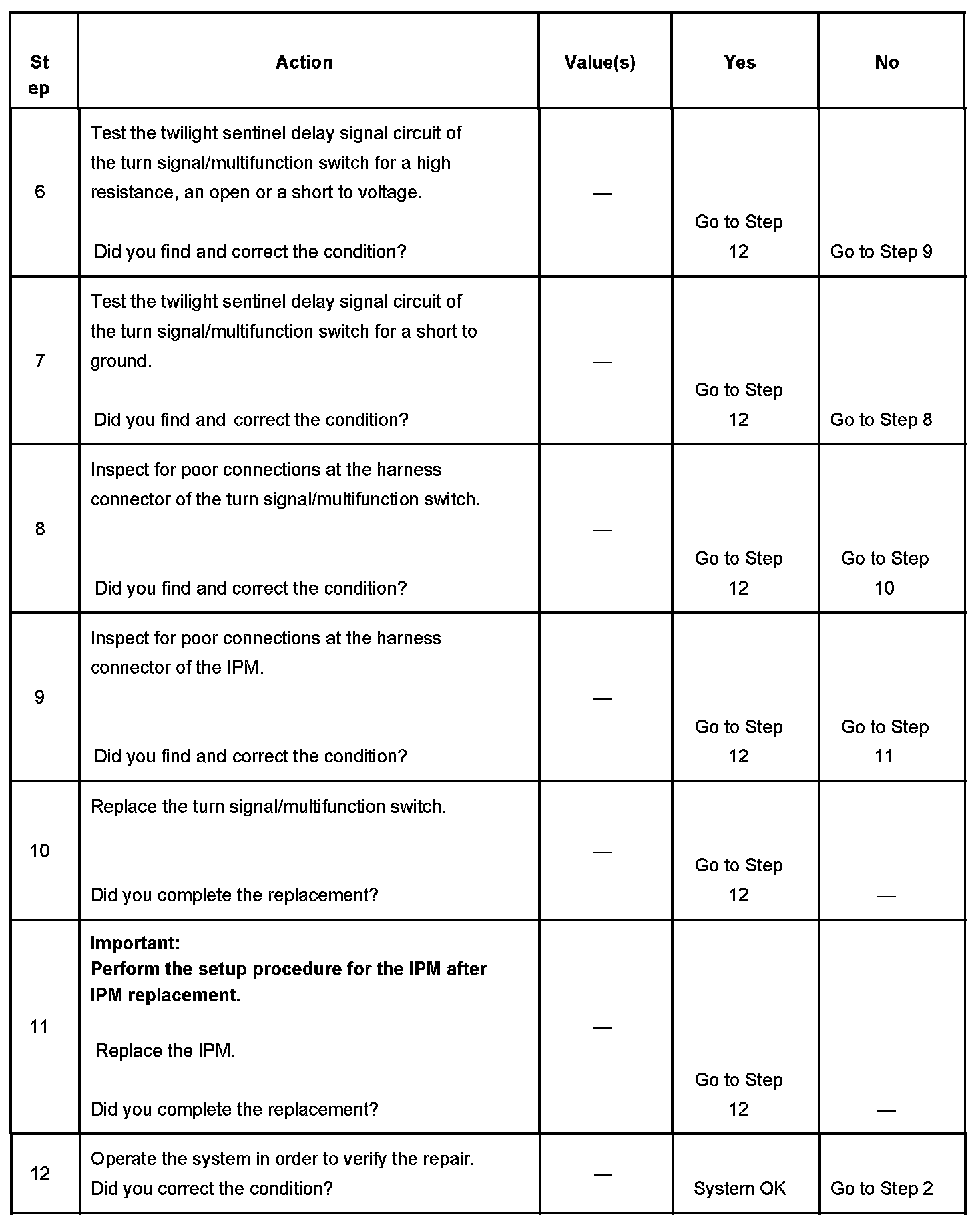

Steps 6-12:
