Scan Tool Output Controls

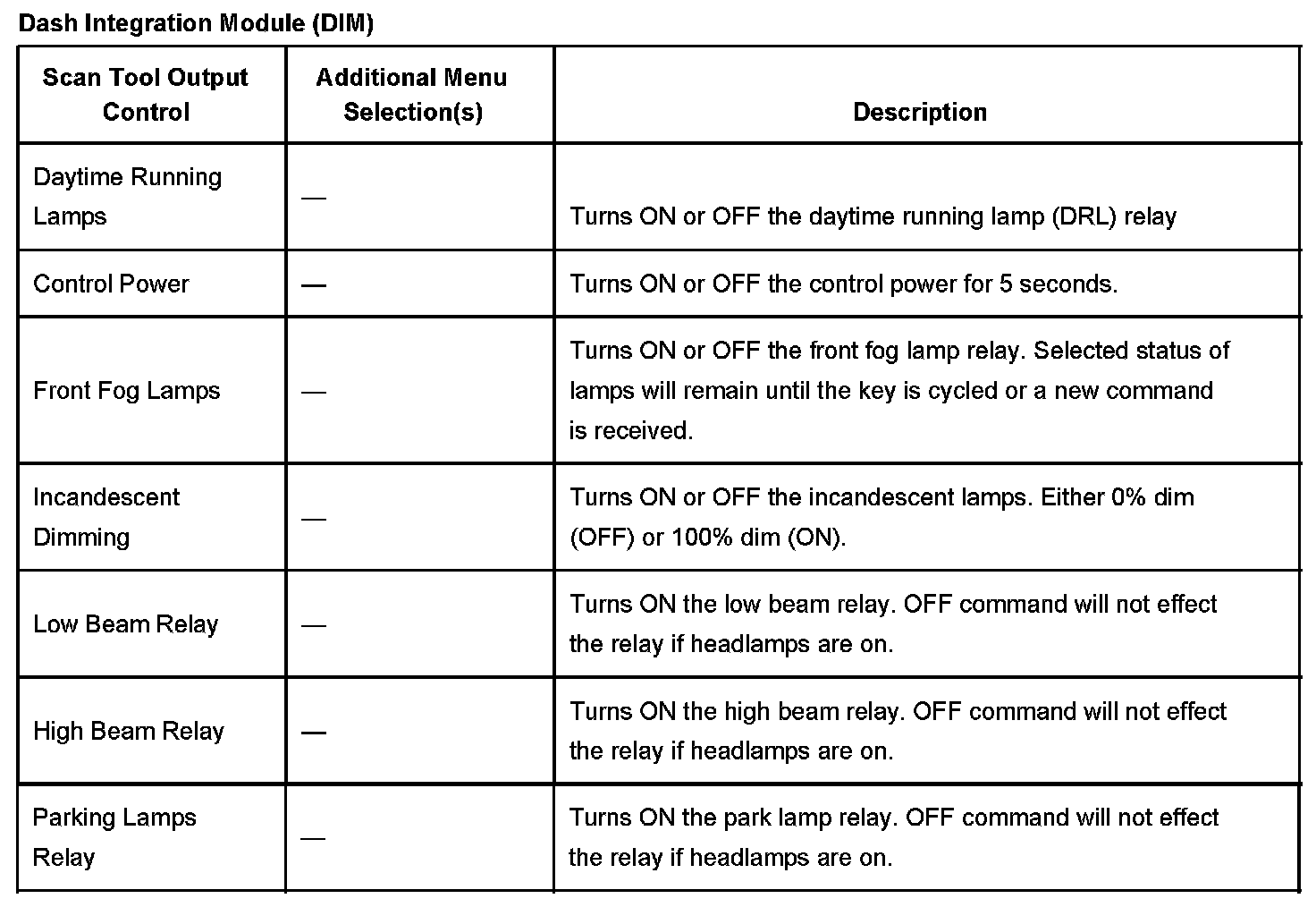

Dash Integration Module (DIM):

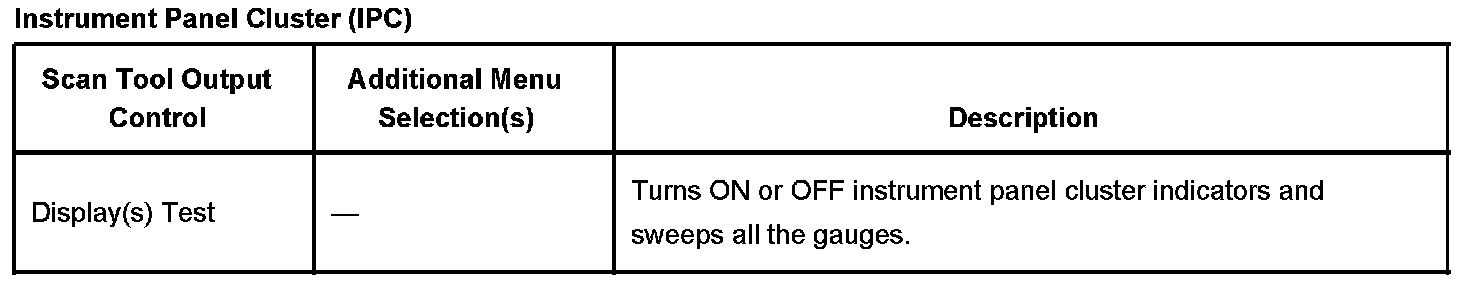

Instrument Panel Cluster (IPC):

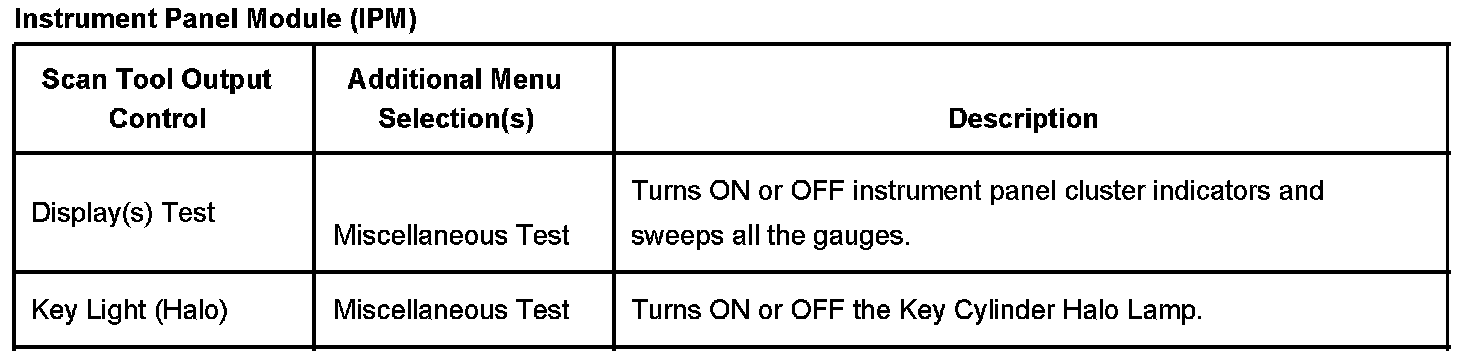

Instrument Panel Module (IPM):



Rear Integration Module (RIM):
