Tail Light Bulb: Service and Repair

TAIL LAMP BULB REPLACEMENT

REMOVAL PROCEDURE




1. Open the rear compartment lid.
2. Remove the appropriate rear compartment side trim panel.
3. Remove the tail lamp housing assembly.

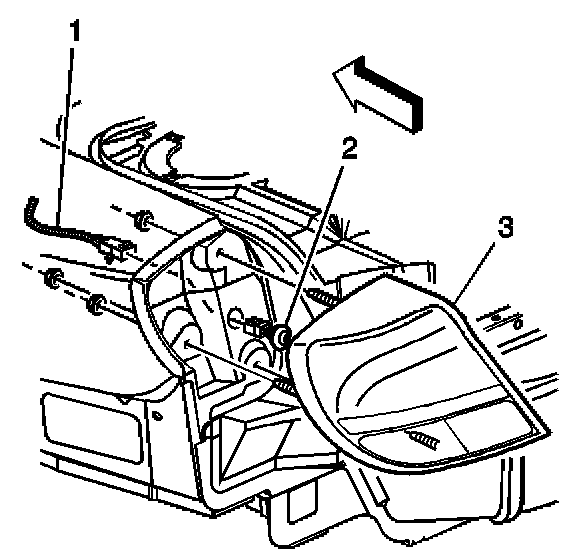

4. Remove the tail lamp socket from the tail lamp housing assembly (3) by turning counter clockwise 1/4 turn.
5. Remove the tail lamp bulb from the socket.

INSTALLATION PROCEDURE




1. Install the tail lamp bulb into the socket.

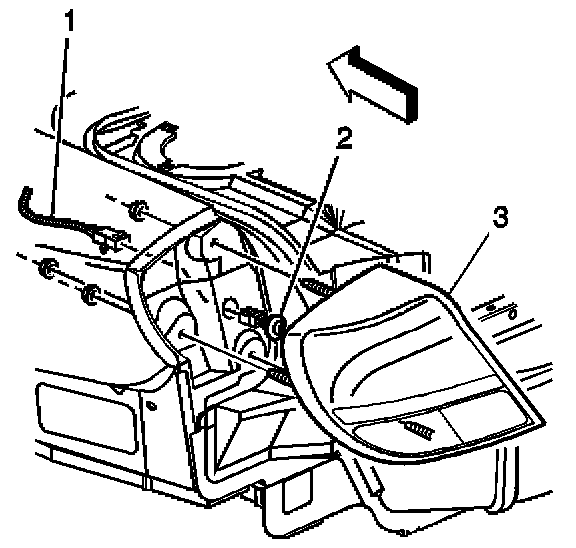

2. Install the tail lamp socket into the tail lamp housing assembly (3).
3. Turn the tail lamp socket clockwise 1/4 turn in order to secure the socket to the tail lamp housing assembly (3).
4. Install the tail lamp assembly (3) to the vehicle.
5. Install the rear compartment side trim panel.
6. Close the rear compartment lid.
