Tail Lamp: Service and Repair

TAIL LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Open the rear compartment lid.

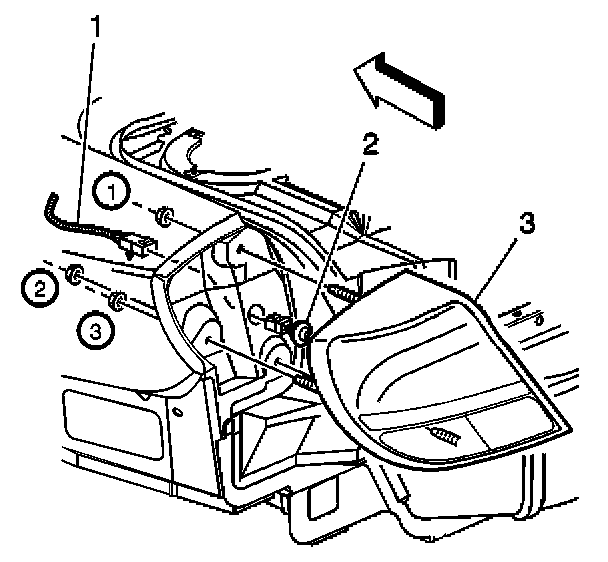

2. Remove the compartment trim panels. Disconnect the tail lamp harness connector (1).
3. Remove the tail lamp fasteners.
4. Remove the tail lamp assembly (3) from the vehicle.
5. While supporting the tail lamp assembly (3), remove the tail lamp harness grommet (2).

INSTALLATION PROCEDURE




1. While supporting the tail lamp assembly (3), install the tail lamp harness grommet (2).
2. Install the tail lamp assembly (3) to the vehicle.
3. Install the tail lamp fasteners to the tail lamp studs in sequence: 1, 2 then 3.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the tail lamp fasteners to 6 N.m (53 lb in).

4. Connect the tail lamp harness connector (1).
5. Install the compartment trim panels.
6. Close the rear compartment lid.
