Home >> Oldsmobile >> 2003 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Map Light >> Diagrams

Map Light: Diagrams

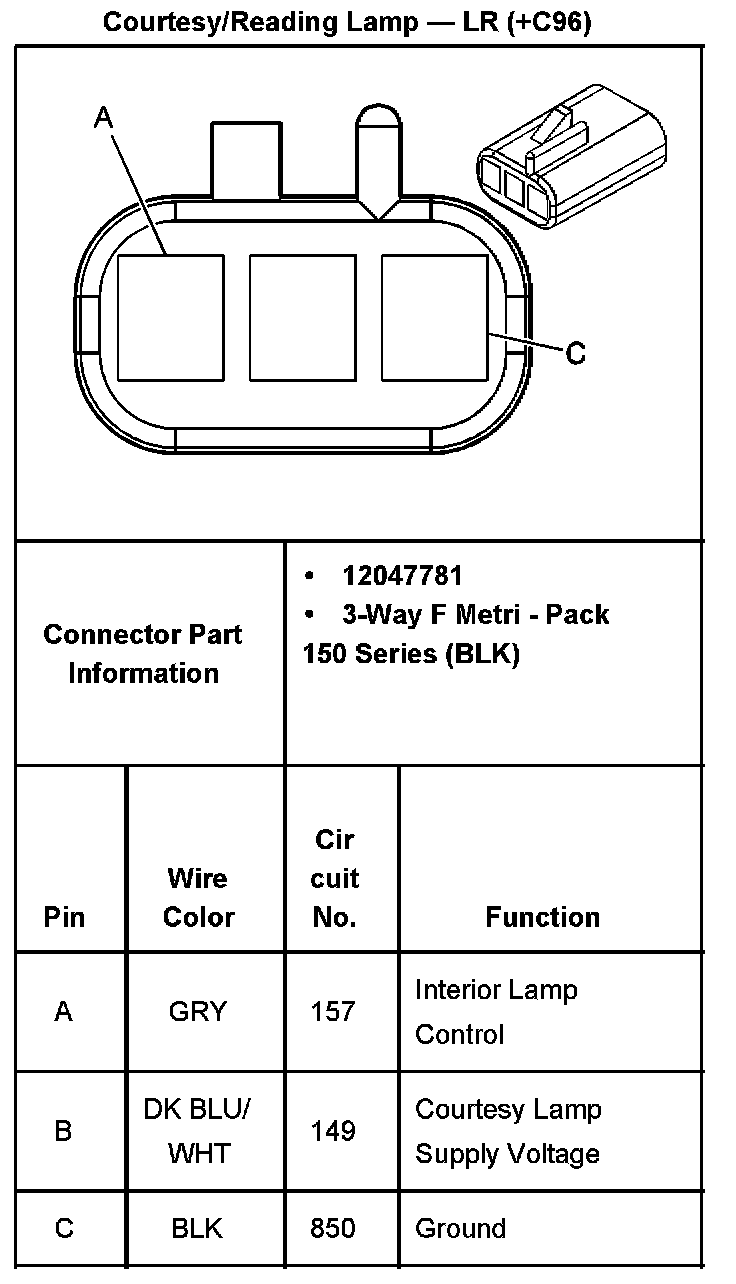

Courtesy/Reading Lamp - LR (With RPO Code +C96):

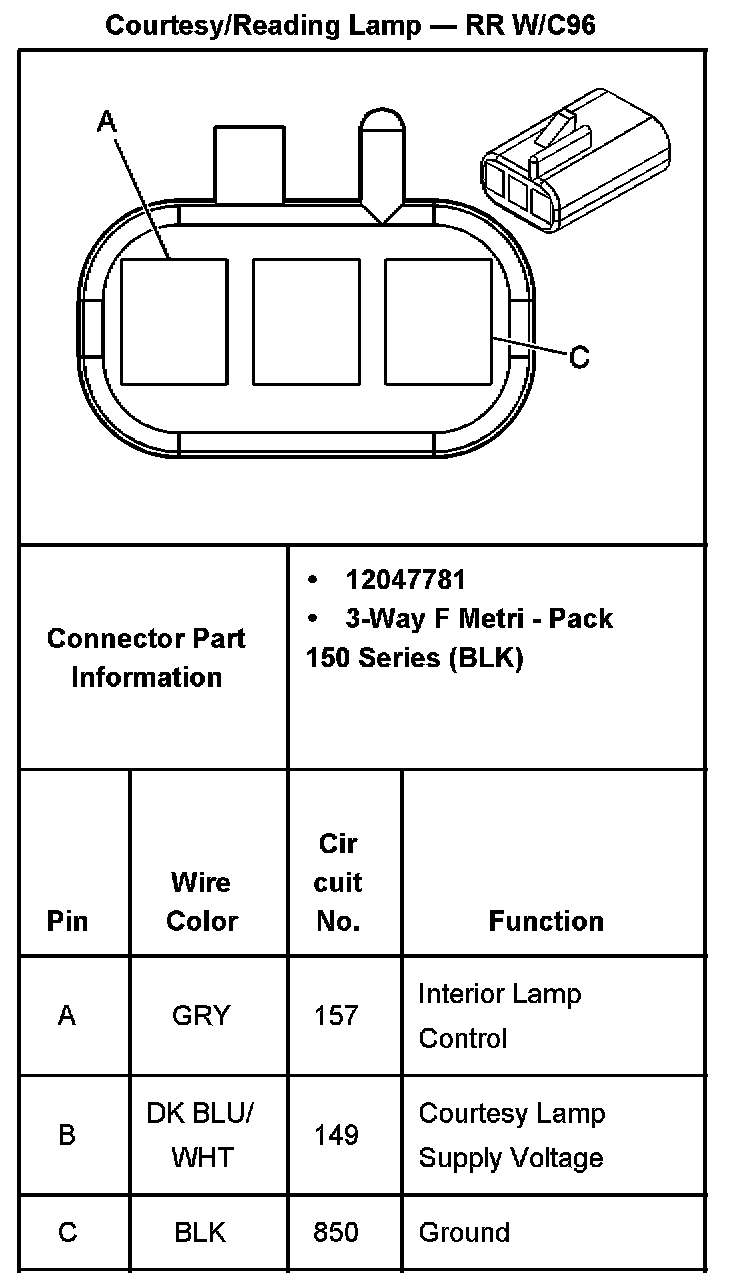

Courtesy/Reading Lamp - RR With RPO Code C96:
