Fog Lamp Replacement - Rear
FOG LAMP REPLACEMENT - REARREMOVAL PROCEDURE

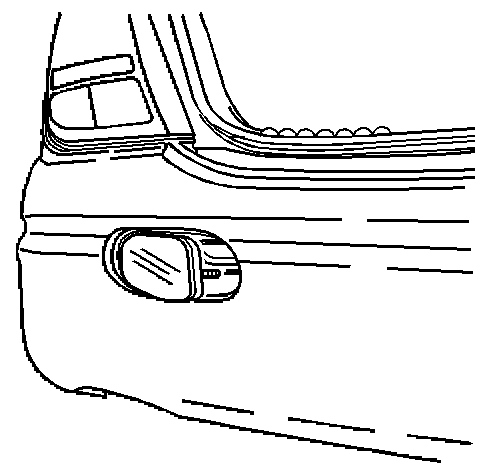

1. Remove the fog lamp bulb socket from the fog lamp assembly by turning the socket counterclockwise.
2. Remove the nut securing the lamp assembly to the fascia.
3. Push the inboard edge of the lamp rearward to disengage the lamp from the fascia.
4. Remove the lamp assembly from the fascia.
INSTALLATION PROCEDURE

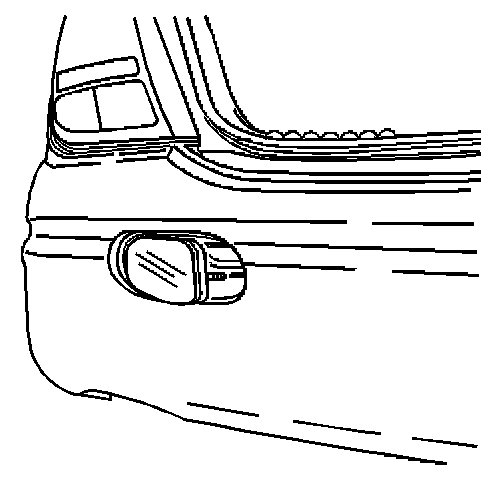

1. Position the outboard edge of the fog lamp into the fascia.
2. Push the inboard edge of the fog lamp into the fascia.
3. Install the nut.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the nut to 4 N.m (35 lb in).
4. Install the fog lamp bulb socket to the fog lamp assembly by turning clockwise.
