Fog Lamp Replacement - Front

FOG LAMP REPLACEMENT - FRONT

REPLACEMENT PROCEDURE
1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Remove the air deflector.

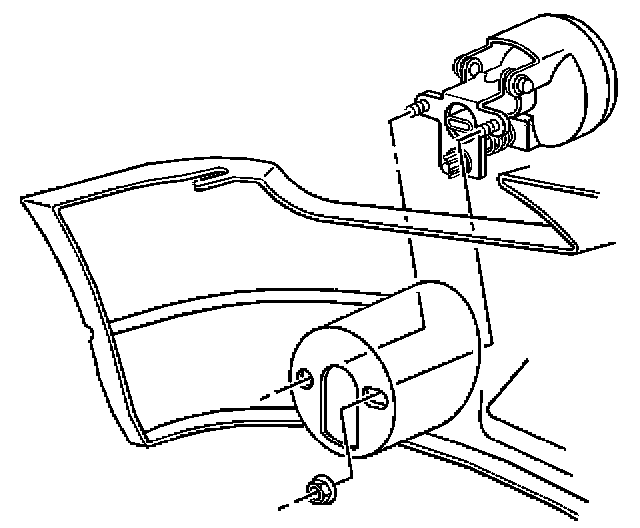

3. Remove the fasteners securing the front fog lamp assembly to the front bumper fascia.
4. Position the fog lamp forward in order to access the electrical connector.
5. Disconnect the electrical connector from the front fog lamp assembly.
6. Remove the fog lamp assembly.

INSTALLATION PROCEDURE




1. Connect the electrical connector to the fog lamp assembly.

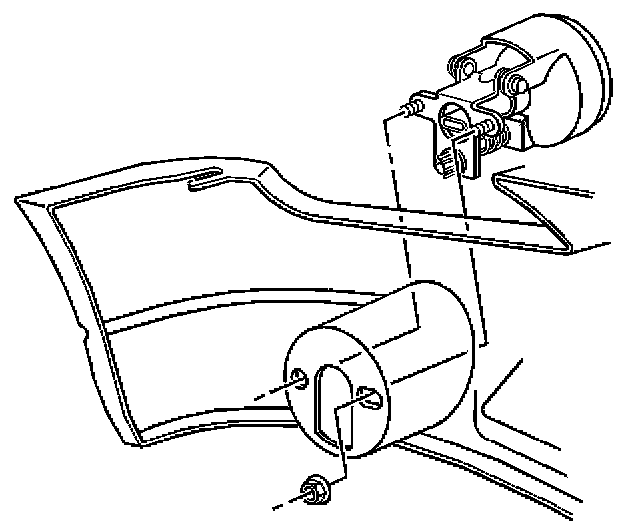

2. Install the fog lamp to the front bumper fascia.
3. Install the front fog lamp mounting fasteners.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the front fog lamp mounting fasteners to 6 N.m (53 lb in).

4. Install the air deflector.
5. Lower the vehicle.
